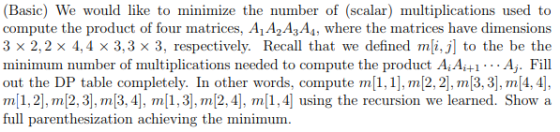

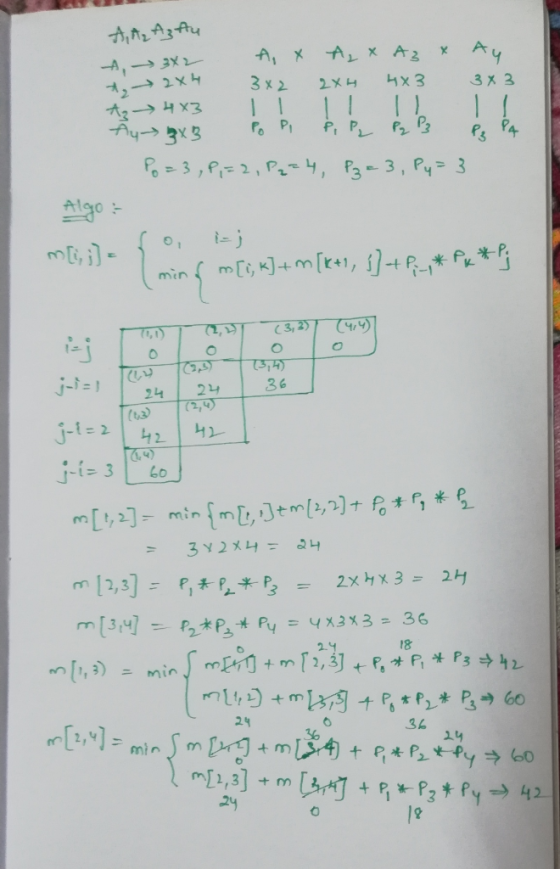

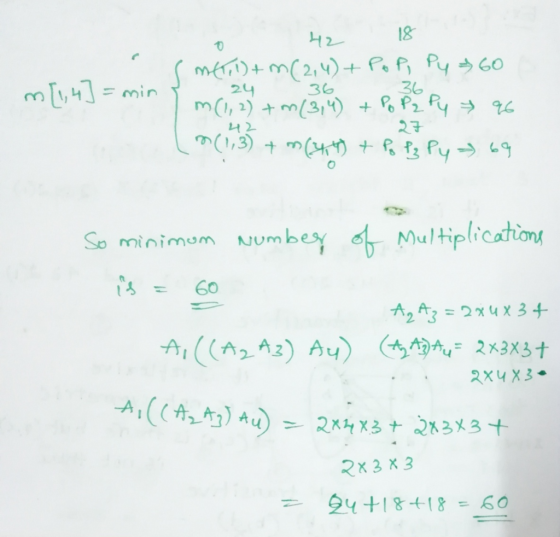

(Basic) We would like to minimize the number of (scalar) multiplications used to compute the product of four matrices, A1A2A3A4, where the matrices have dimensions 3 × 2, 2 × 4, 4 × 3, 3 × 3, respectively. Recall that we defined m[i, j] to the be the minimum number of multiplications needed to compute the product AiAi+1 · · · Aj . Fill out the DP table completely. In other words, compute m[1, 1], m[2, 2], m[3, 3], m[4, 4], m[1, 2], m[2, 3], m[3, 4], m[1, 3], m[2, 4], m[1, 4] using the recursion we learned. Show a full parenthesization achieving the minimum.
Homework Answers
Add Answer to:
(Basic) We would like to minimize the number of (scalar)
multiplications used to compute the product...
