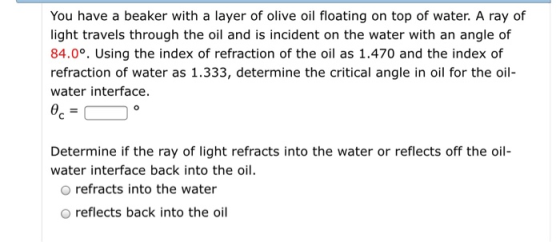

You have a beaker with a layer of olive oil floating on top of water. A...

Question

Question

science physics

Answer 1

Answer #1

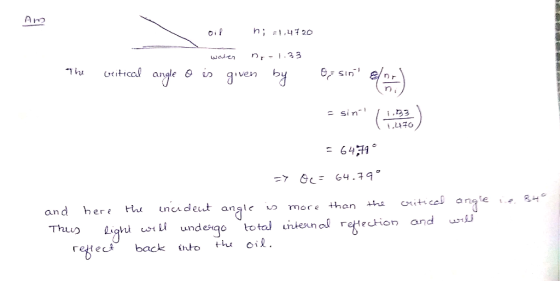

n; =1,4720 oif n,- 1.33 واهبيا andle Gritical The O is given by = sin- i,33 1,470 = 64,71° =7 Oc= 64.79° caiticad angle incud

Answer 2

Similar Homework Help Questions

You have a beaker with a layer of olive oil floating on top of water. A...

You have a beaker with a layer of olive oil floating on top of water. A ray of light travels through the oil and is incident on the water with an angle of 50.2°. Using the index of refraction of the oil as 1.470 and the index of refraction of water as 1.333, determine the critical angle in oil for the oil-water interface. ?c = ° Determine if the ray of light refracts into the water or reflects off the oil-water...
You have a beaker with a layer of olive oil floating on top of water. A...

You have a beaker with a layer of olive oil floating on top of water. A ray of light travels through the oil and is incident on the water with an angle of 81.0°. Using the index of refraction of the oil as 1.470 and the index of refraction of water as 1.333, determine the critical angle in oil for the oil-water interface. θc = °
A glass is half-full of water, with a layer of vegetable oil (n = 1.47) floating...

A glass is half-full of water, with a layer of vegetable oil (n = 1.47) floating on top. A ray of light traveling downward through the oil is incident on the water at an angle of 64.7°. Determine the critical angle for the oil-water interface θc = ° A point source of light is submerged 2.3 m below the surface of a lake and emits rays in all directions. On the surface of the lake, directly above the source, the area...

3. A thin layer of turpentine (n-1.472) is floating on water (-1.333). Light of wavelength 589...

3. A thin layer of turpentine (n-1.472) is floating on water (-1.333). Light of wavelength 589 nm initially traveling in air is incident on the turpentine at an angle of 24.8° measured with respect to the air turpentine interface. b. c. After the light passes through the turpentine, what is its refraction angle in the water? At what angle should the light be incident on the turpentine-water interface so that all the light totally internally reflects in the turpentine and...
A layer of olive oil (n = 1.45) floats on top of the surface of some...

A layer of olive oil (n = 1.45) floats on top of the surface of some water (n = 1.33). A ray of light hits the olive oil from air with an angle of incidence of 45 ∘∘. At what angle does the light emerge into the olive oil? A ray of light hits the olive oil from air with an angle of incidence of 45 ∘∘. At what angle does the light emerge into the water?
A layer of olive oil (n = 1.45) floats on top of the surface of some...

A layer of olive oil (n = 1.45) floats on top of the surface of some water (n = 1.33). Part A: What is the speed of light in the olive oil? Part B: What is the speed of light in the water? Part C: A ray of light hits the olive oil from air with an angle of incidence of 30 degrees. At what angle does the light emerge into the olive oil? Part D: A ray of light...

A double pane surface consists of a layer of oil on top of a layer of...

A double pane surface consists of a layer of oil on top of a layer of water (index of 1.333). A red laser beam (650nm) moves between the two surfaces, passing through the oil at a speed of 0.71c and into the water at a speed of 0.75c. The incident angle from the oil to the water boundary is 32 degrees. What is the index of refraction for the oil? What is the refracted angle, measured form the normal, for...
A thin film of olive oil (index of refraction noil = 1.46) of thickness d is...

A thin film of olive oil (index of refraction noil = 1.46) of thickness d is floating on the surface of still water (index of refraction nwater = 1.33). The index of refraction of air is nair = 1.00. A red laser of wavelength λ=600nm=6.00×10−7m is incident on the film of olive oil from above as shown. The laser reflects at the air-oil and oil-water interfaces and interferes with itself. Answer the following questions: 1. What does the thickness d...
A light ray enters a water layer that is on top of a thick piece of...

A light ray enters a water layer that is on top of a thick piece of glass. The ray enters the water at an angle of 37.0°. The water layer is 5.0mm thick and the glass is 15.0mm thick. The index of refraction of the water is 1.333 and that of the glass is 1.571. What is the angle at which the light ray is travelling in the glass? 1e

A ray of light traveling in air (????=1.0) is incident on a film of oil, making...

A ray of light traveling in air (????=1.0) is incident on a film of oil, making an angle of incidence of 47°, as shown. When the ray refracts into the oil, it makes an angle of 31°, as shown. After traveling through the oil, the ray is then incident on water (??????=1.33). A) Determine the index of refraction of the oil, ????. B) Determine the angle ?? that the ray makes as it travels through the water. 470 Air 31....
