The normalized radiation intensity of an antenna is rotationally symmetric in 0, and it is represented by
The normalized radiation intensity of an antenna is rotationally symmetric in 0, and it is represented by

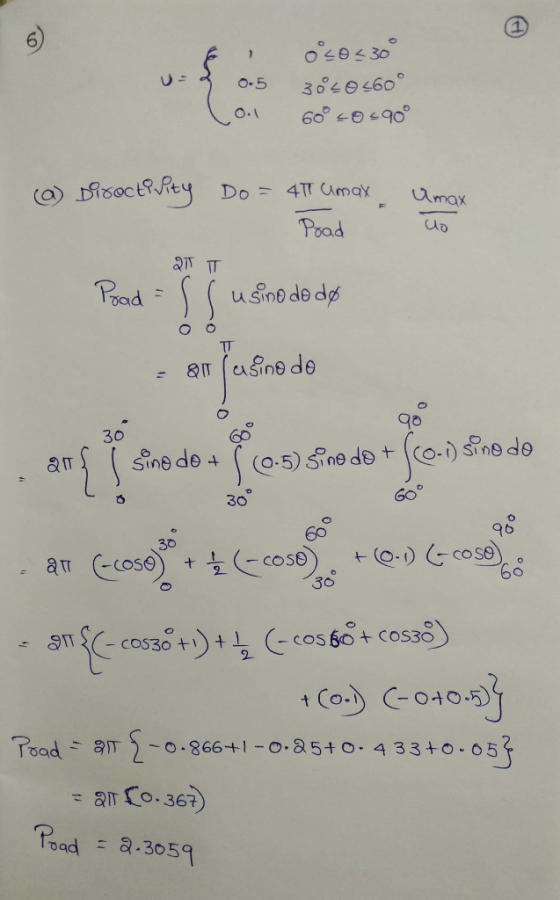

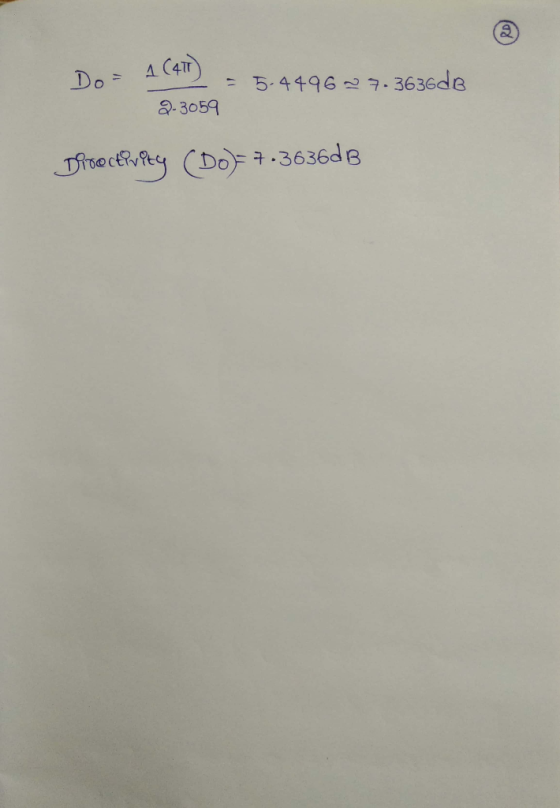

(a) What is the directivity (above isotropic) of the antenna (in dB)?
Homework Answers
Add Answer to:
The normalized radiation intensity of an antenna is rotationally symmetric in 0, and it is represented by
NAME 11. The radiation intensity of a certain antenna is given by U=1 W/steradian, for all...
NAME 11. The radiation intensity of a certain antenna is given by U=1 W/steradian, for all and Such an antenna is most precisely referred to as (a) omni-directional (b) isotropic (c) electrically large (d) lossless ANS: 12. If the matched gain of the above antenna were measured to be -3 dB, what would be its radiation efficiency in percent? (a) 100% (b) 75% (e) 50% (d) 25% ANS:
Problem 2 Consider the following normalized radiation intensity from an antenna. ΡΑθ,0)--cos θ, f or 0...
Problem 2 Consider the following normalized radiation intensity from an antenna. ΡΑθ,0)--cos θ, f or 0 θ , 0 otherwise 2 Determine the pattern solid angle ΩΡ" (10 points) a)
The radiation intensity of an antenna is U=Um cos where Um is the maximum radiation intensity....
The radiation intensity of an antenna is U=Um cos where Um is the maximum radiation intensity. The radiation intensity U has a value only in upper hemisphere (0 ≤ ≤ /2 and 0 ≤ ≤ 2) and is zero in the lower hemisphere. 1. Express the radiation pattern in a polar plot 2. On the same diagram indicate the half power points 3. Calculate the half power beamwidth 4. Calculate the directivity in dBi.
Question 1 The power radiated by a lossless antenna is 10 watts.
Question 1 The power radiated by a lossless antenna is 10 watts. The directional characteristics of the antenna are represented by the radiation intensity of U = 2cos3θ watts/unit solid angle. Find the (a) Maximum power density at a distance of 1000 m (assume far-field distance) (b) Maximum directivity (c) Maximum gain Question 2 In target-search ground-mapping radars it is desirable to have echo power received from a target, of constant cross section, to be independent ofits range. For one such application, the desirable radiation intensity...
You are an antenna engineer and you are asked to design a high directivity/gain antenna for...
You are an antenna engineer and you are asked to design a high directivity/gain antenna for a space-borne communication system operating at 10 GHz. The specifications of the antenna are such that its pattern consists basically of one major lobe and, for simplicity, no minor lobes (if there are any minor lobes they are of such very low intensity and you can assume they are negligible/zero). Also it is desired that the pattern is symmetrical in the azimuthal plane. In...
The approximate far zone normalized electric field radiated by a resonant linear dipole antenna used in wireless mobile...
The approximate far zone normalized electric field radiated by a resonant linear dipole antenna used in wireless mobile units, positioned symmetrically at the origin along the z- axis, is given by 0°0 180° 1.5 ejkr EaâgEa sin 0° e 360° where E is a constant and r is the spherical radial distance measured from the origin of the coordinate system. Determine the: (a) Exact maximum directivity (dimensionless and in dB) (b) Half-power beamwidth (in degrees) (c) Approximate maximum directivity (dimensionless...
A 75 Ω lossless transmission line is terminated into a load 100 +j150 Ω. For this line, find: i. Reflection coefficient; ii. An antenna receiving a signal of 500 MHz has the following specificati...
A 75 Ω lossless transmission line is terminated into a load 100 +j150 Ω. For this line, find: i. Reflection coefficient; ii. An antenna receiving a signal of 500 MHz has the following specifications: input power Prad 3.25 kw; effective area of antenna Aeff 3.5 m2; total efficiency of antenna,-42%; radiation efficiency of antenna ecd-65%; tilt angle of the received signal ψ = 35°. Determine Voltage standing voltage ratio; b. i. Gain of the antenna (in dB) ii. Maximum radiation...
Consider a horn antenna that a half-power beam widths in the principal planes of HPBpl19, HP29°....
Consider a horn antenna that a half-power beam widths in the principal planes of HPBpl19, HP29°. What is the approximate directivity in dB if the pattern is a single lobe? If the radiation efficiency of the antenna is ε-90% , what is the gain of the antenna in dB. E-plane H-plane
A base station cellular communication systems lossless antenna has a maximum gain of 16 dB (above...
A base station cellular communication systems lossless antenna has a maximum gain of 16 dB (above isotropic) at 1,900 MHz. Assuming the input power to the antenna is 8 watts, what is the maximum radiated power density (in watts/cm2) at a distance of 100 meters? This will determine the safe level for human exposure to electromagnetic radiation.
2.32. A base station cellular communication systems lossless antenna has a maximum gain of 16 dB...
2.32. A base station cellular communication systems lossless antenna has a maximum gain of 16 dB (above isotropic) at 1.900 MHz. Assuming the input power to the antenna is 8 watts what is the maximum radiated power density (in watts/cm?) at a distance of 100 meters? This will determine the safe level for human exposure to clectromagnetic radiation.
NAME 11. The radiation intensity of a certain antenna is given by U=1 W/steradian, for all and Such an antenna is most precisely referred to as (a) omni-directional (b) isotropic (c) electrically large (d) lossless ANS: 12. If the matched gain of the above antenna were measured to be -3 dB, what would be its radiation efficiency in percent? (a) 100% (b) 75% (e) 50% (d) 25% ANS:
Problem 2 Consider the following normalized radiation intensity from an antenna. ΡΑθ,0)--cos θ, f or 0 θ , 0 otherwise 2 Determine the pattern solid angle ΩΡ" (10 points) a)
You are an antenna engineer and you are asked to design a high directivity/gain antenna for a space-borne communication system operating at 10 GHz. The specifications of the antenna are such that its pattern consists basically of one major lobe and, for simplicity, no minor lobes (if there are any minor lobes they are of such very low intensity and you can assume they are negligible/zero). Also it is desired that the pattern is symmetrical in the azimuthal plane. In...
The approximate far zone normalized electric field radiated by a resonant linear dipole antenna used in wireless mobile units, positioned symmetrically at the origin along the z- axis, is given by 0°0 180° 1.5 ejkr EaâgEa sin 0° e 360° where E is a constant and r is the spherical radial distance measured from the origin of the coordinate system. Determine the: (a) Exact maximum directivity (dimensionless and in dB) (b) Half-power beamwidth (in degrees) (c) Approximate maximum directivity (dimensionless...
A 75 Ω lossless transmission line is terminated into a load 100 +j150 Ω. For this line, find: i. Reflection coefficient; ii. An antenna receiving a signal of 500 MHz has the following specifications: input power Prad 3.25 kw; effective area of antenna Aeff 3.5 m2; total efficiency of antenna,-42%; radiation efficiency of antenna ecd-65%; tilt angle of the received signal ψ = 35°. Determine Voltage standing voltage ratio; b. i. Gain of the antenna (in dB) ii. Maximum radiation...
Consider a horn antenna that a half-power beam widths in the principal planes of HPBpl19, HP29°. What is the approximate directivity in dB if the pattern is a single lobe? If the radiation efficiency of the antenna is ε-90% , what is the gain of the antenna in dB. E-plane H-plane
A base station cellular communication systems lossless antenna has a maximum gain of 16 dB (above isotropic) at 1,900 MHz. Assuming the input power to the antenna is 8 watts, what is the maximum radiated power density (in watts/cm2) at a distance of 100 meters? This will determine the safe level for human exposure to electromagnetic radiation.
2.32. A base station cellular communication systems lossless antenna has a maximum gain of 16 dB (above isotropic) at 1.900 MHz. Assuming the input power to the antenna is 8 watts what is the maximum radiated power density (in watts/cm?) at a distance of 100 meters? This will determine the safe level for human exposure to clectromagnetic radiation.
