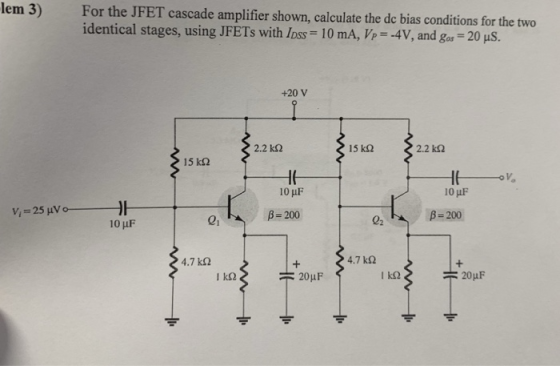

using BJET lem 3) For the JFET cascade amplifier shown, calculate the de bias conditions for...
For the cascade amplifier of the figure, calculate the
polarization voltages
Please clarity answer, thanks!!

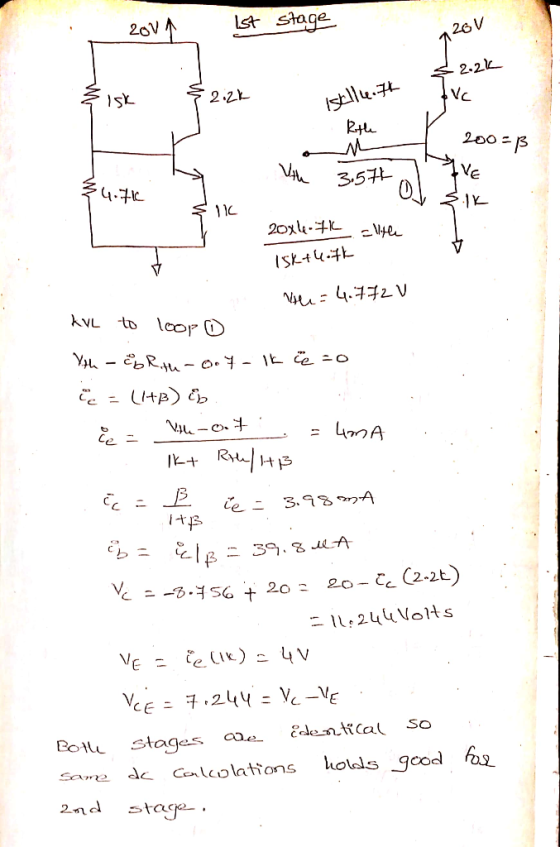

1. For the cascade amplifier of the figure, calculate the polarization voltages and current collector of each stage. Also, calculate the voltage gain for each stage and the total voltage gain for cascade amplifier. 2. Repeat the previous steps using a load resistance of 2.2 kΩ 3. Calculate the input and output impedances for the cascade amplifier and the cutoff frequencies (fi) for the cascade...
as. (25) For the DC analvsis of the JFET amplifier seen in Fig3a, a) (04) determine the voltage Va b) (06) draw ID-VGs characteristics of the」FET transistor on a milimetric paper given in fig. 3.b. c) (10) mark the operating point Oll po. Vasq) on the characteristics you have drawn in part c. d) (05) find Vb. Vs and Voso DSQ- 20 V 2.2 kQ 910 kΩ lass 10 mA GSo 110 ㏀ 1.1 kQ fig.3.a.
as. (25) For the...
For the cascade amplifier of Figure Q1(a), determine the (1) transconductance factor, gm. a.c. diode resistance., re. (iii) ac equivalent circuit (iv) input impedance, Z (v) output impedance, Z. (vi) voltage gain, Avi (vii) voltage gain, Av2. (viii) total cascade voltage gain, Avr. Given gm = 21 pss lvpl + 15 V Ipss - 10 mA Vp.4V Vase -- 1.5 V βος = 50 μs Γ. 40 ΚΩ RO 3.3 ΚΩ R81 22 ΚΩ Rc 10 ΚΩ O V. β...
Please show a detail explanation on the solution. Thanks in
advance
4.117 The amplifier of Fig. P4.117 consists of two identical common-e that the input resistance of the second stage, R2, constitutes the load resistance of the first stage mitter amplifiers connected in cascade. Observe = 6.8 kΩ and β= 100, determine the dc collector current and de collector voltage of each transistor (b) Draw the small-signal equivalent circuit of the entire amplifier and give the values of al its...
6.5 BI C2 Cl sig in 0 Design the bias circuit of the CE amplifier shown to obtain IE= 0.5 mA and Vc= +6 V. Design for a dc voltage at the base of 5 V and a current through RB2 of 50 μΑ. Let Vcc-+15 V, β-100, and VBE 0.7 V. a) Specify the values of RBi, RB2, RE, and Rc b) Also give the values of the BJT small-signal parameters gm, rr , and ro at the bias...
2. (25 pts) For the JFET configuration shown below using the parameters given V +16.0v R1 RD Rp 2.4 k2 Rs 1.5 k R,- 2.1 M2 R2-270 kΩ Ioss 8.0 MA IG- 0 A C1 Vo Vin R2 RS cs a) Sketch the transfer characteristics of the device. b) On the same graph, sketch the bias line equation. c) Determine Ipo- d) Determine Voso- e) Determine Vos lpo Vas
Figure 1 shows an amplifier application using a JFET. Given that VGSQ = -2.48 V, Ipo = 2.07 mA and yes = 0.1 ms. i) Determine the voltage gain at mid-range frequency, Avimid). ii) Determine fia, fic and fis for the network. iii) Determine which value contributes to the low frequency response for the network. iv) Plot the asymptotes for low frequency response of the network. Use the semi-log graph paper given in APPENDIX II for your answer. v) Plot...
4) Consider the MOSFET differential amplifier shown below, with Io-2 mA, and RL- 10 kS2, Rss-100 k2, VDD- +8V and Vss--8V. The NMOS transistors in the circuit are nominally identical, with kn 2 mA/V2, VTn 1.0 V and ro 100 k2. The PMoS transistors in the circuit are nominally identical, with kp 2 mA/V2, [VTpl 1.0 V and ro 100 kΩ M3 M4 0 M1 M2 a) First consider the DC bias point. Assuming that the current mirror requires at...
Figure 1 shows an amplifier application using a JFET. Given that Vasq=-2.48 V. IDQ = 2.07 mA and you = 0.1 ms. 1) Determine the voltage gain at mid-range frequency, Awwid). ii) Determine fio, fic and fts for the network iii) Determine which value contributes to the low frequency response for the network. iv) Plot the asymptotes for low frequency response of the network. Use the semi-log graph paper given in APPENDIX II for your answer. v) Plot the actual...
Figure 1 shows an amplifier application using a JFET. Given that Vaso = -0.87 V, IpQ = 9.82 mA and you = 5 MS. i) Determine the voltage gain at mid-range frequency, Aumid). 1) Determine the fofuc and fis for the network ii) Determine which f. contributes to the low frequency response for the system. [20 Marks) Other Capacitors: 9 Vo 28 V Cos = 6 pF Cos = 1 pF Con = 4 pF R, - 4 MO Cwi...
