Figure shows a uniform disk that can rotate around its center like a merry-go-round. The disk...

Question

Question

Figure shows a uniform disk that can rotate around its center like a merry-go-round. The disk has a radius of 2.00 m and a ma

science physics

Answer 1

Answer #1

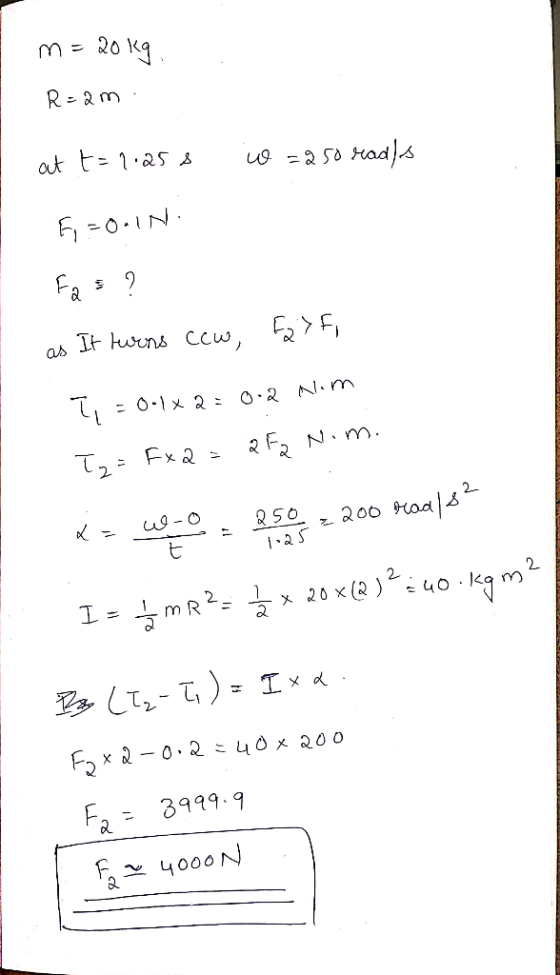

m= 20 kg R=am. at t= 1.258 io =250 rads 6 - ON: Fas? as It turns cew, F27F, T = 0.1 x 2 = 0.2 Nim Ty=Fxa = 252 N.m. X=490, 8

Answer 2
