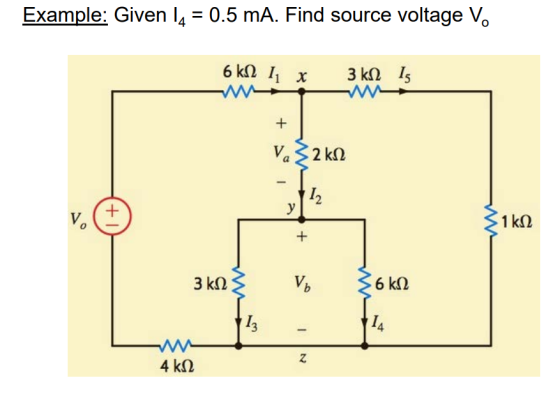

Example: Given 40.5 mA. Find source voltage Vo 4

Question

Question

engineering Electrical-Engineering

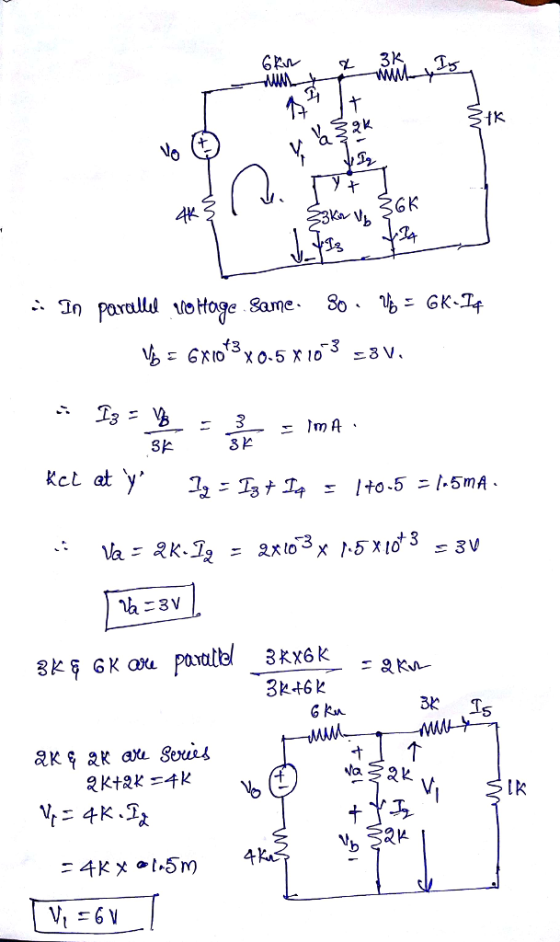

Answer 1

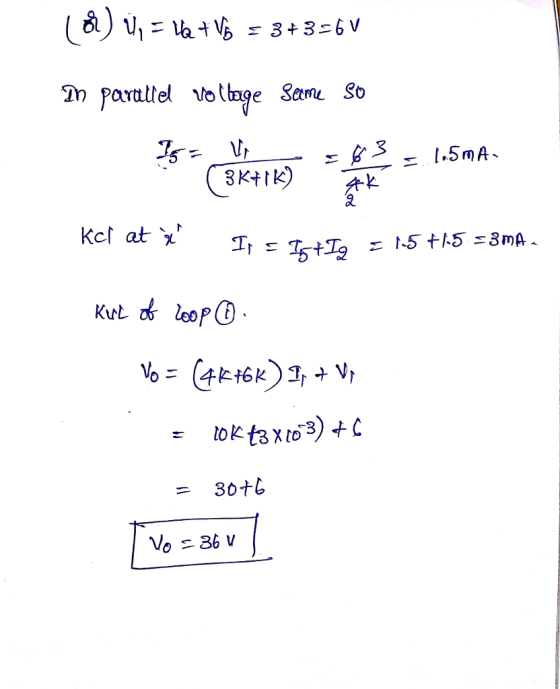

Answer #1

6K f3 BK lk

Answer 2

Similar Homework Help Questions

Find Vo’ due to the current source Is alone. Vo’=______V Find Vo” due to the voltage...

Find Vo’ due to the current source Is alone. Vo’=______V Find Vo” due to the voltage source Vs alone. Vo”=______V Find Vo due to both sources. Vo=______V 1. Find V, in the network in Fig. 1 using superposition. 1 kΩ 2 kΩ R2 R4 2 kΩζv, R1 6 mA R3ξ 2kΩ Is Vs (+) 12V Figure 1.
Answer: -771, -25.7, 5 mW, 99.2 mW 4–2 Find the voltage gain vo/vı and the current...

Answer: -771, -25.7, 5 mW, 99.2 mW 4–2 Find the voltage gain vo/vı and the current gain io/is in Figure P4–2. For is = 10 mA, find the power supplied by the input current source and the power delivered to the 1.5-k 2 load resistor. + 6 + 100 S2 10032 | 9001 is 1 v 2ko } 1.5 kaš VO o FIGURE P4-2
4. Use the mesh (loop) analysis to find the voltage V of the following circuit. Vo...

4. Use the mesh (loop) analysis to find the voltage V of the following circuit. Vo 8 kn 2 k0 4 ko 8 kO 2 mA 4 kO 6 V

(25pts) 4. Find Vo in the circuit as below: 2 mA

(25pts) 4. Find Vo in the circuit as below: 2 mA
Given Vo in the network in the figure, find IA 12 V 2 mA the tolerance...

Given Vo in the network in the figure, find IA 12 V 2 mA the tolerance is +/-100
Determine the rms voltage of the given periodic voltage. Given: R=18h, WL:31.wc 2h, and Vo =...

Determine the rms voltage of the given periodic voltage. Given: R=18h, WL:31.wc 2h, and Vo = 24 cos Iwt) volts. What is the current coming from the voltage source, and what average Power is being taken from the voltage Source! anhanh L C

Find Vo and the power absorbed by the dependent source in the given circuit. Assume l...

Find Vo and the power absorbed by the dependent source in the given circuit. Assume l = 26 A. 10 22 + V- 21092 1 42v. The value of Vo is v. The power absorbed by the dependent source is
Chapter 13, Problem 13.090 (Circuit Solution) Incorrect. Use source transformation to find Vo in the network...

Chapter 13, Problem 13.090 (Circuit Solution) Incorrect. Use source transformation to find Vo in the network in the figure below 4 mA Vo =1116.807 the tolerance is +/-2% LINK TO TEXT
Can Someone explain how to do this problem? 4. Current and Voltage Source with Diode: For the circuit shown below, find...

Can Someone explain how to do this problem? 4. Current and Voltage Source with Diode: For the circuit shown below, find the voltage vo. The current-voltage relationship for the diode is, as usual, Io(e"s/V 1) where Io 10-12 A and VT 0.026 V 10Ω 10 V (+ 5 mH Uo 1 A 4. Current and Voltage Source with Diode: For the circuit shown below, find the voltage vo. The current-voltage relationship for the diode is, as usual, Io(e"s/V 1) where...

H 3. A voltage source of known voltage Vo is connected in series with a switch...

H 3. A voltage source of known voltage Vo is connected in series with a switch and a known resistor Ro and an unknown inductor Lx as shown. The switch is closed at time t 0, and the voltage VL across Lx is monitored by the oscilloscope. Ro Lx Osc (a) Sketch the waveform of Vi vs t as seen on the oscilloscope. (b) If at a known time i, VL V3, what is L? Express your answer in terms...
