A series RLC circuit has a resonant frequency of 6.29 kHz. When it is driven at...

A series RLC circuit has a resonant frequency of 6.29 kHz. When it is driven at 8.73 kHz, it has an impedance of 0.867 kΩ and a phase constant of 38.0o. What are (a)  R, (b)  L, and (c)  C for this circuit?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

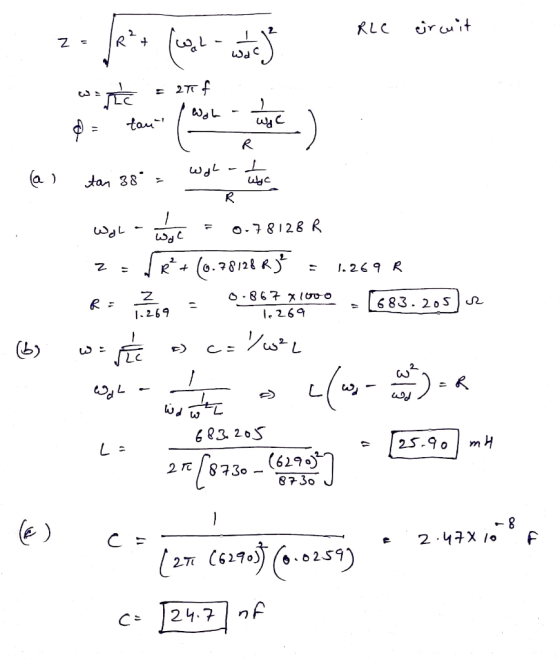

Ree or wit z fet (with wote = 20 € ہے ۔ اولا tan 38 = 1.269 16269 . WelWec = 0.78128 R 2. fe+ (0.78128 R JE = 1.269 R 0-867 X
