Question

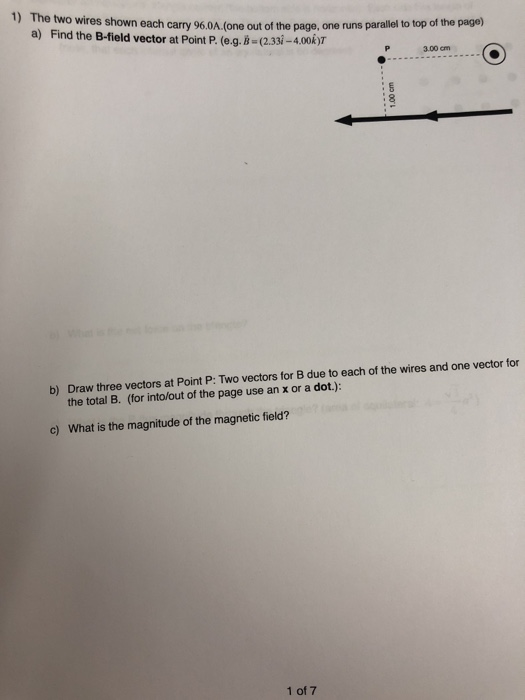

1) The two wires shown each carry 96.0A. a) Find the B-field vector at Point P. (eg. B-(2.33i-400k )T (one out of the page, one runs parallel to top of the page) 3.00 cm b) Draw three vectors at Point P: Two vectors for B due to each of the wires and one vector for the total B. (for intolout of the page use an x or a dot.): c) What is the magnitude of the magnetic field? 1 of 7

Answer 1

Dear student,

Find this solution.if any issue with that don't forget to write in comment section.I will rectify them as soon as possible.

If you find the solution helpful and kindly RATE THE ANSWER it would be appreciated.

Your rating is important to me.

Thanks for asking..

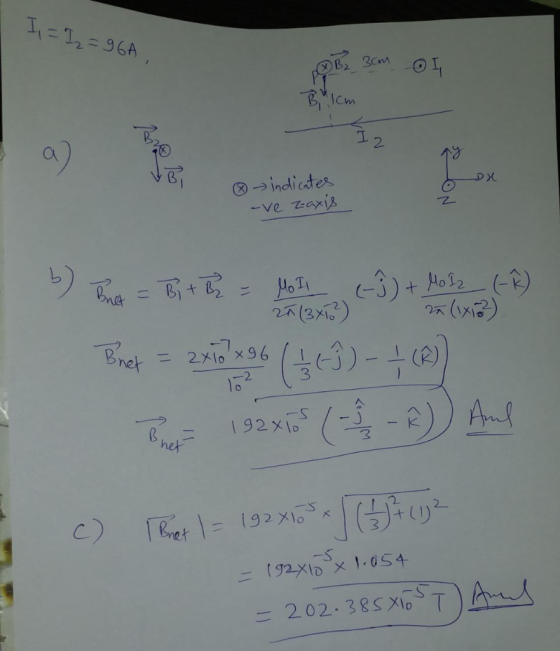

Dear student, Find this solution. if any issue with that don't forget to write in comment section. I will rectify them as soon as possible. If you find the solution helpful and kindly RATE THE ANSWER it would be appreciated. Your rating is important to me. Thanks for asking.. i_1 = i_2 = 96a b^rightarrow_2 b_1^rightarrow x rightarrow indicates positive z axis b_net^rightarrow = b_1^rightarrow + b_2^rightarrow = u_0 i_1/2pi(3 times 10^-2) (-j^cap) + u_0 i_2/2pi(1 times 10^-2)(-k^cap) b^rightarrow_net = 2 times 10^-7 times 96/10^-2(`/3 (-j^cap) - 1/1 (k^cap)] b^rightarrow_net = 192 times 10^-5 (-j^cap/3 - k^cap) Vertical-bar b^rightarrow_net Vertical-bar = 192 times 10^-5 times squareroot (1/3)^2 + (1)^2 = 192 times 10^-5 times 1.054 = 202.385 times 10^-5 t
