I need help with non-standard Op-Amps. Please draw common examples of nonstandard op amp circuits and...

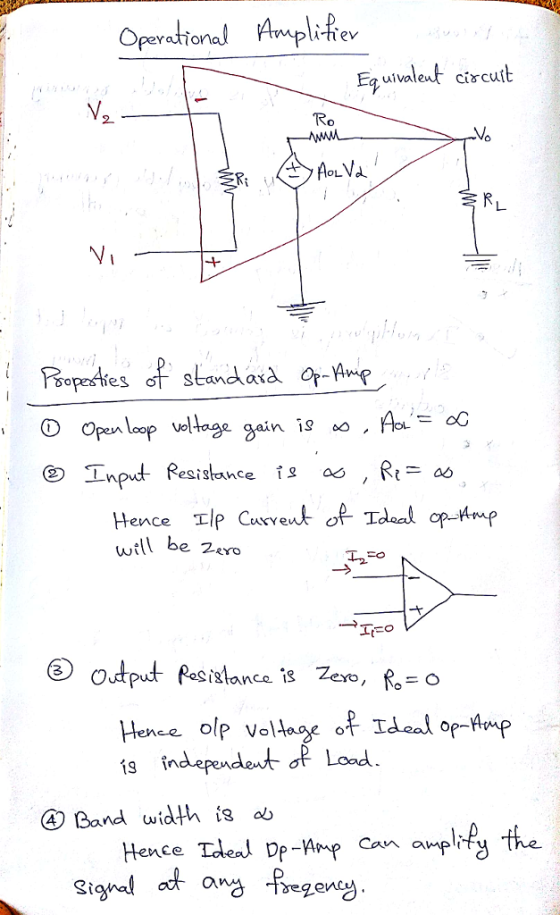

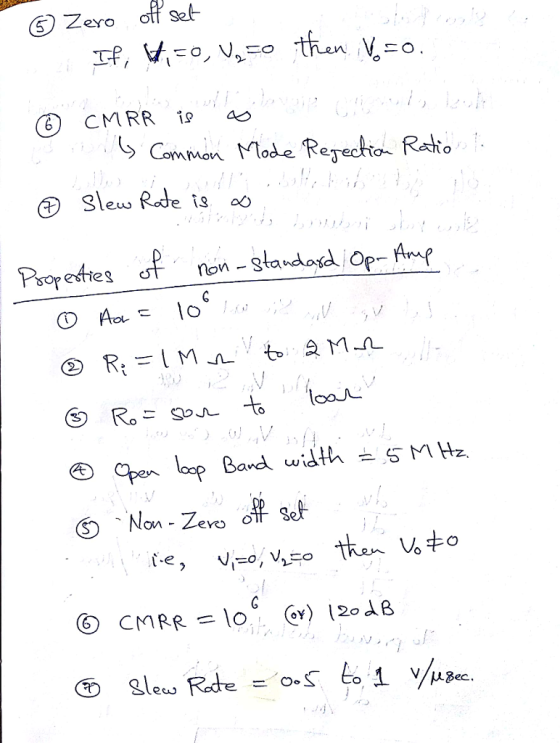

I need help with non-standard Op-Amps. Please draw common examples of nonstandard op amp circuits and list differences between these and standard ones, as well as methods of solving them.
also, please add a switch in these circuits

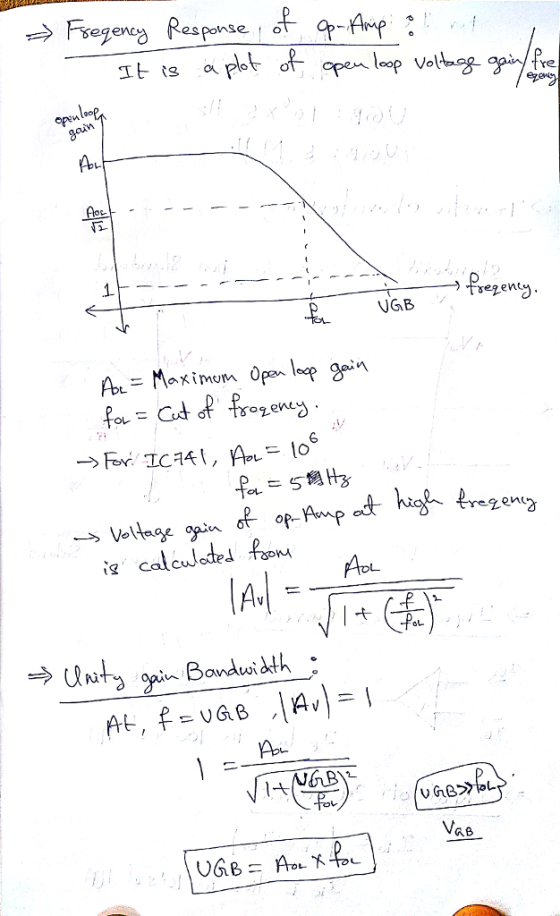

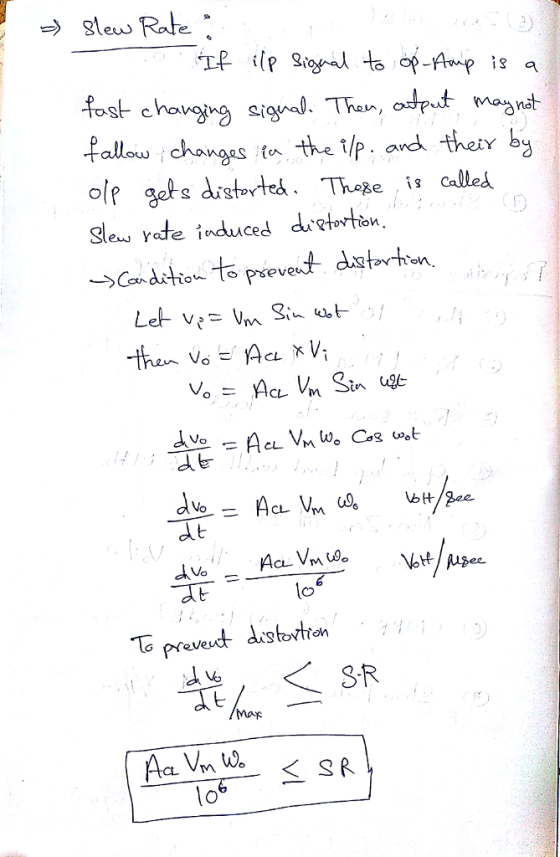

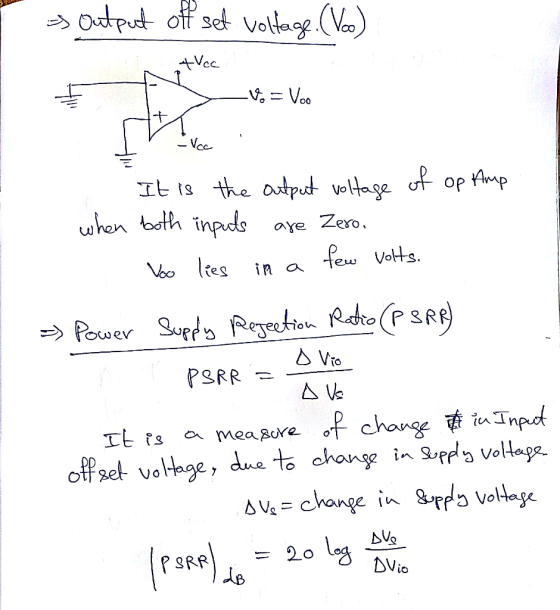

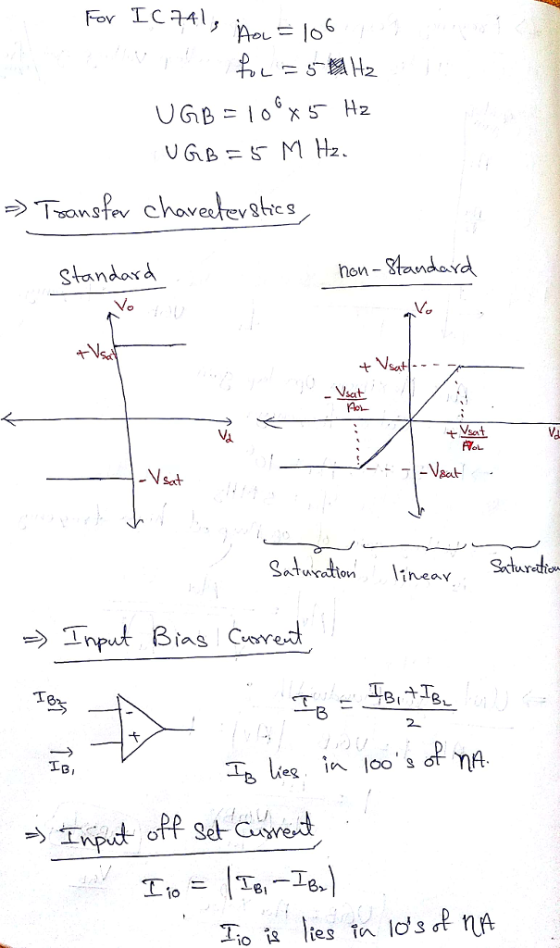

Homework Answers
