All the Q's Q8: A 1024 Hz tuning fork is used to obtain a series of...

Question

Question

All the Q's
Q8: A 1024 Hz tuning fork is used to obtain a series of resonance levels in a gas column of variable length, with one end clo

science physics

Answer 1

Answer #1

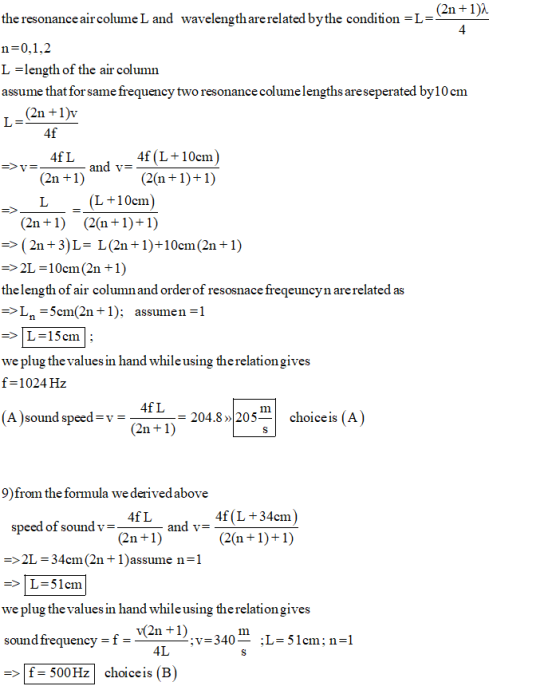

the resonance air colume L and wavelengtharerelated bythe condition -L- n=0.1.2 L-length of the air column assume that for sa

Answer 2

Similar Homework Help Questions

38. A 1024 Hz tuning fork is dangled at the end of a string such that...

38. A 1024 Hz tuning fork is dangled at the end of a string such that its center of mass is 1.2 m below the point at which the other end of the string is attached to door frame, making a pendulum of sorts. The tuning fork may be treated as a point mass for the purposes of this problem. The pendulum is brought to a maximum angle and released. If the range of frequencies heard by an observer standing...
A vibrating tuning fork is held above a column of air. The fundamental frequency is 343...

A vibrating tuning fork is held above a column of air. The fundamental frequency is 343 Hz The water level is lowered until a third resonance is heard. Calculate the length of the air column that produces this third resonance. The original length was .25m The speed of sound in air is 343m/s Please show work The answer sheet lists the answer as 1.25m
7.1 A tuning fork vibrating at 300 Hz is placed in a tank of water. Find...

7.1 A tuning fork vibrating at 300 Hz is placed in a tank of water. Find the frequency and wavelength of the sound wave in the water. [Answer: 300 Hz, 4.95 m] Find the frequency and wavelength of the sound wave produced in the air above the tank by the vibration of the water surface. [Answer: 300 Hz, 1.14 m] Speed of sound wave in air: v = 343 m/s Speed of sound wave in water: v = 1484 m/s

1) Imagine you are using a closed end tube with a tuning fork having a frequency...

1) Imagine you are using a closed end tube with a tuning fork having a frequency of 472 Hz in lab. You notice the second resonance point occurs when the water level is 54.0 cm from the open end of the tube. Ignoring any end correction effect, what is the speed of sound in the lab in this situation?
If one holds an open-open tube with one end in water, one will obtain a variable...

If one holds an open-open tube with one end in water, one will obtain a variable length open-closed tube, the length depending on how much of the tube is immersed. Then if one holds a tuning fork over the open end of the tube, one will obtain resonances when the length, L, of the tube is such that the sound of the tuning fork will be reinforced. The smallest value of L for which a resonance occurs is 9.0 cm....
need help with selecting the correct answers for 9, 10, and 11 9. A tuning fork...

need help with selecting the correct answers for 9, 10, and 11 9. A tuning fork on top of water in a tube has its fundamental resonance for an air column length of 9 (cm) in the tube above water. If the velocity of sound in air is 343 (m/s), the frequency of the tuning fork is about a. 3812 (Hz) b. 1906 (Hz) c. 953 (Hz) d. 476 (Hz) 10. In the above question, the next resonance (second harmonic)...

A tuning fork produces resonance in the air column above water when the distance between the...

A tuning fork produces resonance in the air column above water when the distance between the free surface of the water and the open end of the tube is 45cm. If the resonance does not occur for any shorter distance, what is the frequency of the tuning fork? The speed of the sound is 331m/s. Note that the diameter of the tube is small compared to 45cm.
5 OT 019 (part 1 of 3) 10.0 points An open vertical tube has water in it. A ; tuning fork vibrate...

19, 20, 21 19 finishes off on the next photo at the very top but please answer 19,20,21 5 OT 019 (part 1 of 3) 10.0 points An open vertical tube has water in it. A ; tuning fork vibrates over its mouth. As the water level is lowered in the tube, the fifth t resonance is heard when the water level is 4 cm below the top of the tube. What is the wavelength of the sound wave? The...
NAME A tuning fork vibrating at 512 Hz falls from rest and How far below the...

NAME A tuning fork vibrating at 512 Hz falls from rest and How far below the point of release is the tuning fork when waves of frequency 485 Hz reach the release point? Assume the speed of sound is 343 m/s. as a result of gravity

A tuning fork vibrating at 512 Hz falls from rest and accelerates at 9.80 m/s 2...

A tuning fork vibrating at 512 Hz falls from rest and accelerates at 9.80 m/s 2 . How far below the point of release is the tuning fork when waves of frequency 485 Hz reach the release point? Hint: The speed of sound is 343 m/s
