2. Implement the functions: F(a,b,c,d) - abc + d and G a' using two 3-input 2-output...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

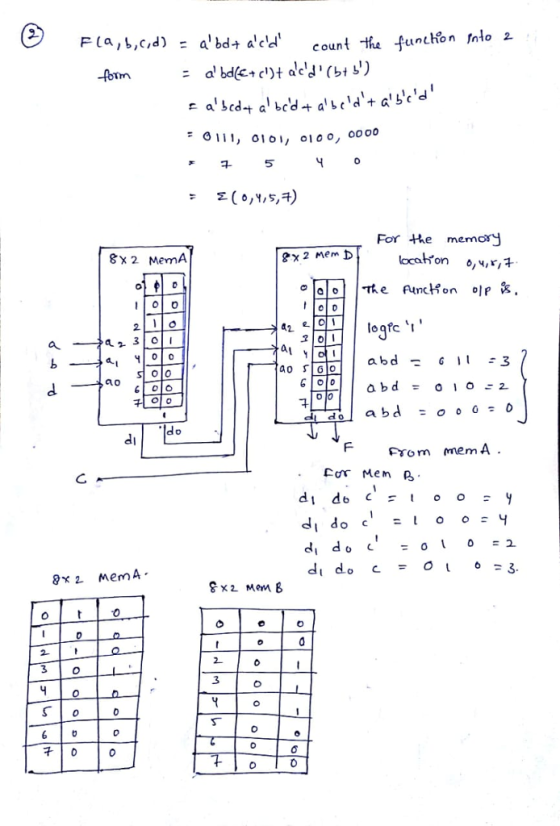

111,01 For the memosy 8X 2 MemA &x 2 Mem 2. 40 o abd 3 a0 ao 구 di From memA CoT Mem R dl do c =100

Answer 2

Similar Homework Help Questions

Show how to implement F(a,b,c,d) = ab'c and G(a,b,c,d) = ab'd + cd

Show how to implement F(a,b,c,d) = ab'c and G(a,b,c,d) = ab'd + cd on the two 3-input 2-output lookup tables shown below. Use the connections that are shown. Draw your circuits and show how you divided them between the LUTs. Then fill in the LUT memories. Label the LUT inputs and outputs.
Solve for both functions f&g using their dedicated tables. The table below shows some input-output pairs...

Solve for both functions f&g using their dedicated tables. The table below shows some input-output pairs for an exponential function 2 0 2 46 f(z) 28 63 141.75 318.9375 a What is the 2-unit growth factor for f? Preview b. What is the l-unit growth factor for f? Preview c. What is the initial value of f? f(0) = Preview d. Write a function formula for f. f(3) = Preview The table below shows some input-output pairs for an exponential...
F'= (C+D)( B+D)(A'+B'+C) F=B'D+A'D+BC 5. Using logicWorks, implement both F and F' using NAND gates and...

F'= (C+D)( B+D)(A'+B'+C) F=B'D+A'D+BC 5. Using logicWorks, implement both F and F' using NAND gates and connect two circuits to the same input switches but to separate output LED's. Prove that both circuits are complement of each other. In the lab implement and verify the operations of the circuit. 6. Draw both circuits.

using a 16x1 multiplexer 3. Implement the function F using a multiplexer. F(A, B, C, D)=BC...

using a 16x1 multiplexer 3. Implement the function F using a multiplexer. F(A, B, C, D)=BC + BD + ABC
Q# 7 (3 marks) Implement the Boolean function F(K,A,B,C,D) shown below using a single decoder of...

Q# 7 (3 marks) Implement the Boolean function F(K,A,B,C,D) shown below using a single decoder of a suitable size and multi- input OR gate and inverter. Note the order of the variables in the function F and use the same order when implementing input to the decoder. + (4-1) MUX (2-1) FIK.A,BC,D) MUX + 0 + - Si So BUD
Write the code to implement the expression A (((B C)/D) *(E F) *G) on 3-, 2-, 1-, and 0- address ...

Write the code to implement the expression A (((B C)/D) *(E F) *G) on 3-, 2-, 1-, and 0- address machines. Do not rearrange the expression. In accordance with programming language practice, computing the expression should not change the values of its operands. When working with 0-address instructions, assume that the operation is TOS-SOS OP TOS. Write the code to implement the expression A (((B C)/D) *(E F) *G) on 3-, 2-, 1-, and 0- address machines. Do not rearrange...

1. Q(A,B,C,D) = ABC'+ A'BC+C'D'+AB'+B'C a) Implement the previous function using logic gates. b) implement the...

1. Q(A,B,C,D) = ABC'+ A'BC+C'D'+AB'+B'C a) Implement the previous function using logic gates. b) implement the same function using a 16 input multiplexer (74150) only. (Hint: draw the truth table for Q)
Simplify the following functions, and implement them with two-level NAND gate circuits: (a) F (A, B,...

Simplify the following functions, and implement them with two-level NAND gate circuits: (a) F (A, B, C, D) = AC'D' + A'C + ABC + AB'C + A'C'D' (b) F (A, B, C, D) = A'B'C'D + CD + AC'D (c) F (A, B, C, D) = (A' + C' + D') (A' + C') (C' + D')
Please solve ASAP. 4. Implement each of the following functions using only two-input gates. The multi-level...

Please solve ASAP. 4. Implement each of the following functions using only two-input gates. The multi-level circuit should have AND and OR gates alternating at adjacent levels. a) Z- ABC+D'E b) X AB+AC'D +A'BD'+A'E'F' (last gate should be an AND gate) c) Part (b) with last gate as an OR gate

Exercise 2: Show a design for the following Boolean functions using the simple 4-input, 4 output...

Exercise 2: Show a design for the following Boolean functions using the simple 4-input, 4 output PAL shown below. Observe that the simple PAL has active high outputs- that is, the outputs of the OR gates are not inverted. (Hint: Try to simplify the functions) F1(A, B, C, D) m (6,7,9,11,12,13) F2(A, B, C, D)-m(0,2,3,4,5,10,11,13,15) F3(A, B, C, D)-m(2,3,6,7,10,11,14,15) A B C D FI F2 F3 F4 March 6, 2019
