Question

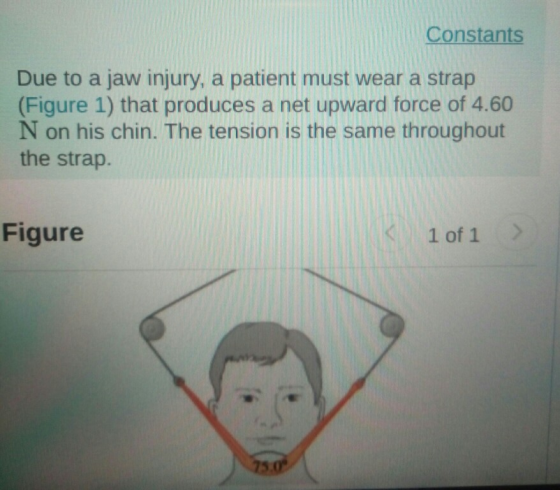

Constants Due to a jaw injury, a patient must wear a strap (Figure 1) that produces a net upward force of 4.60 N on his chin. The tension is the same throughout the strap Figure 1 of 1>

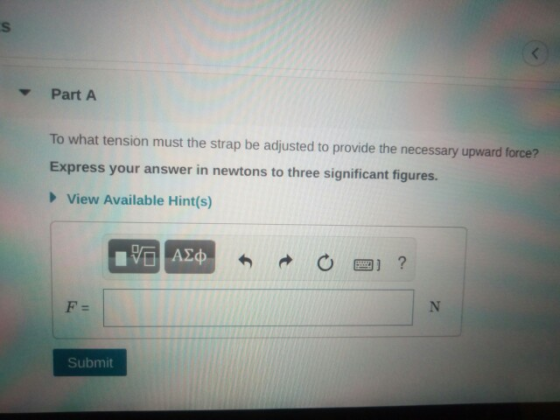

media%2F5f0%2F5f010c9f-f90d-4764-82af-3a

please put in 3 significant figures:)

0 0
Add a comment Improve this question Transcribed image text
Answer #1

let F is the tension in the strap.

angle made the strap with vertical = 75/2 = 37.5 N

so, Fnety = 2*F*cos(37.5)

F = Fnety/(2*cos(37.5))

= 4.60/(2*cos(37.5))

= 2.90 N (Answer)

I hope help you.
