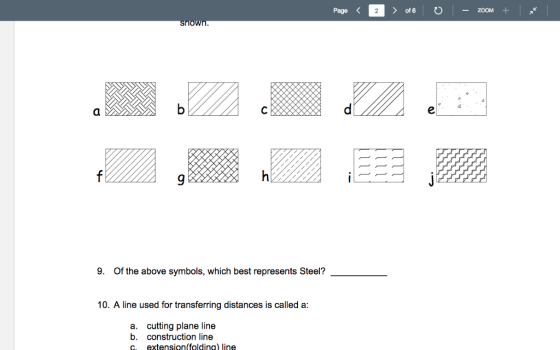

Page of 6-ZOOM 9. Of the above symbols, which best represents Steel? 10. A line used for transferring distances is called a: a. cutting plane line b. construction line c, extension(f oldina) line1- This is the place where you can get a quick overall view of all the parts that comprise an

assembly and how many of each are required in the assembly.

a.Parts list

b.Table of contents

c.Standard parts sheet

d.Detail drawing

2. Balloons with leaders are included on the:

a. Assembly drawing

b. Detail drawing

c. Section drawing

d. Auxiliary drawing

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

9. b represents steel

10. AUX Reference Line

--------------------------------------------------------------------------------------------------------------------------------------------
