pls solve it right this time

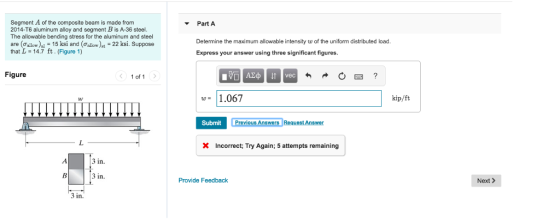

Segment A of the composite beam is made from 2014-T6...
Segment B of the composite beam is made from aluminum (Es=70 GPa) and segment A is...
Segment B of the composite beam is made from aluminum (Es=70 GPa) and segment A is steel (Ext=210 GPa). The allowable bending stress (tensile/compressive) for aluminum and steel are allow)al=100Mpa and (allow)se=150MPa. Determine the maximum allowable intensity (w) of the uniformly distributed load. (Hint: NA is located at 150 mm from top edge. Show that I=850*10 mm. for aluminum equivalent). 100 mm W steel 100 mm 4.0 m 300 mm aluminum B
Q-1. You are testing a circular beam of two metals, 1045 steel and 2014-T6 aluminum, in...
Q-1. You are testing a circular beam of two metals, 1045 steel and 2014-T6 aluminum, in a rotating-cantilever beam fatigue test. If you need to choose one of these metals so that you can essentially design a part made of that metal, and subject the part to a repetitive stress- amplitude without ever failing due to fatigue, which one would you choose. (See the attached figure) 700 600 Ti-5Al-2.5Sn titanium alloy 4340 steel 500 400 Maximum stress, S (MPa) 1045...
Figure 2a shows a composite beam made by placing three steel plates inside a wooden section....
Figure 2a shows a composite beam made by placing three
steel plates inside a wooden
section.
(a) Determine the maximum bending stress developed in the wooden
section and steel plate
if the beam is subjected to allowable bending moment, M of 20 kN.m.
Given that the
Modulus of Elasticity of wood is 13.1 GPa and steel is 200
GPa.
[14 Marks]
Figure 2a: Composite beam
(b) Figure 2b shows another beam without steel plates. Suggest the
maximum bending
stress for...
Item 1 < 1 of 3 > Review Part A The composite beam is made of...
Item 1 < 1 of 3 > Review Part A The composite beam is made of 6061-T6 aluminum (A) and C83400 red brass (B). If the height h= 40 mm, determine the maximum moment that can be applied to the beam if the allowable bending stress for the aluminum is (o allow = 122 MPa and for the brass (allowbr = 33 MPa. (Figure 1) Express your answer with the appropriate units. ? CH HÅR M = 4982.713 O a...
A 20- ftft-long column is made of aluminum alloy 2014-T6. If it is pinned at its...
A 20- ftft-long column is made of aluminum alloy 2014-T6.
If it is pinned at its top and bottom, and a compressive load PP
is applied at point AA, determine the maximum allowable magnitude
of PP using the equations
σallow=[54000(KL/r)2]σallow=[54000(KL/r)2] and
P/A(σa)allow+Mc/Ar2(σb)allowP/A(σa)allow+Mc/Ar2(σb)allow, with
(σb)allow(σb)allow = 22 ksiksi .
Express your answer to three significant figures and include
appropriate units.
Problem 13.118 11 of 21 A 20-ft-long column is made of aluminum alloy 2014-T6. A 5.25 in. 0.5 in. X x...
Q-1. You are testing a circular beam of two metals, 1045 steel and 2014-T6 aluminum, in...
Q-1. You are testing a circular beam of two metals, 1045 steel and 2014-T6 aluminum, in a rotating-cantilever beam fatigue test. If you need to choose one of these metals so that you can essentially design a part made of that metal, and subject the part to a repetitive stress- amplitude without ever failing due to fatigue, which one would you choose (See the attached figure) 600 T-51-25 tanium alloy 500 00 Maximum 8 MP 300 Ductile Castro 200 700...
Homework Set #6-Chapter 6 Problem 6.87 4 of 10 > The beam has a rectangular cross...
Homework Set #6-Chapter 6 Problem 6.87 4 of 10 > The beam has a rectangular cross section with b = 8 in. 2b 6 ft Part A Determine the largest maximum intensity wo of the triangular distributed load that can be supported if the allowable bending stress is σ 1-1.7 ksi Express your answer to three significant figures. uo = Submit Provide Feedback Next >
DQuestion 17 5 pts The cross section of a composite beam made of aluminum and steel...
DQuestion 17 5 pts The cross section of a composite beam made of aluminum and steel is shown in the figure. The moduli of elasticity are Ea 75 GPa and Es 200 GPa. Under the action of a bending moment that produces a maximum stress of 50 MPa in the aluminum, what is the maximum stress in the steel (MPa)? 30 mm 40 mm Aluminunm Steel 80 mm 0
The allowable bending stress is σ1ow-22 ksi and the allowable shear stress is Tallow 12 ksi....
The allowable bending stress is σ1ow-22 ksi and the allowable shear stress is Tallow 12 ksi. (Figure 1) Part A Select the lightest steel wide-flange beam from Appendix B that will safely support the loading shown. If there are several choicas of equal weight, choose the one with the shortest height. w14 × 26 W8 x 31 W10 × 39 w12 × 22 W12 × 26 W14 x 22 W10 × 30 W8 × 40 Submit Request Answer Figure 1...
DE = 29 Question 4: Indeterminate Beam Design and Deflection A 2014-T6 aluminium cantilever beam is...
DE = 29
Question 4: Indeterminate Beam Design and Deflection A 2014-T6 aluminium cantilever beam is rigidly fixed to a wall and supported at the free end with a roller support, shown below. The beam is loaded with a distributed load, W, of 10kN/m and a point load, P of 55kN. Both the distributed load and the point load act in the direction shown in the image below. Note, the parameter DE is related to your student number as described...
Segment B of the composite beam is made from aluminum (Es=70 GPa) and segment A is steel (Ext=210 GPa). The allowable bending stress (tensile/compressive) for aluminum and steel are allow)al=100Mpa and (allow)se=150MPa. Determine the maximum allowable intensity (w) of the uniformly distributed load. (Hint: NA is located at 150 mm from top edge. Show that I=850*10 mm. for aluminum equivalent). 100 mm W steel 100 mm 4.0 m 300 mm aluminum B
Q-1. You are testing a circular beam of two metals, 1045 steel and 2014-T6 aluminum, in a rotating-cantilever beam fatigue test. If you need to choose one of these metals so that you can essentially design a part made of that metal, and subject the part to a repetitive stress- amplitude without ever failing due to fatigue, which one would you choose. (See the attached figure) 700 600 Ti-5Al-2.5Sn titanium alloy 4340 steel 500 400 Maximum stress, S (MPa) 1045...
Figure 2a shows a composite beam made by placing three
steel plates inside a wooden
section.
(a) Determine the maximum bending stress developed in the wooden
section and steel plate
if the beam is subjected to allowable bending moment, M of 20 kN.m.
Given that the
Modulus of Elasticity of wood is 13.1 GPa and steel is 200
GPa.
[14 Marks]
Figure 2a: Composite beam
(b) Figure 2b shows another beam without steel plates. Suggest the
maximum bending
stress for...
Item 1 < 1 of 3 > Review Part A The composite beam is made of 6061-T6 aluminum (A) and C83400 red brass (B). If the height h= 40 mm, determine the maximum moment that can be applied to the beam if the allowable bending stress for the aluminum is (o allow = 122 MPa and for the brass (allowbr = 33 MPa. (Figure 1) Express your answer with the appropriate units. ? CH HÅR M = 4982.713 O a...
A 20- ftft-long column is made of aluminum alloy 2014-T6.
If it is pinned at its top and bottom, and a compressive load PP
is applied at point AA, determine the maximum allowable magnitude
of PP using the equations
σallow=[54000(KL/r)2]σallow=[54000(KL/r)2] and
P/A(σa)allow+Mc/Ar2(σb)allowP/A(σa)allow+Mc/Ar2(σb)allow, with
(σb)allow(σb)allow = 22 ksiksi .
Express your answer to three significant figures and include
appropriate units.
Problem 13.118 11 of 21 A 20-ft-long column is made of aluminum alloy 2014-T6. A 5.25 in. 0.5 in. X x...
Q-1. You are testing a circular beam of two metals, 1045 steel and 2014-T6 aluminum, in a rotating-cantilever beam fatigue test. If you need to choose one of these metals so that you can essentially design a part made of that metal, and subject the part to a repetitive stress- amplitude without ever failing due to fatigue, which one would you choose (See the attached figure) 600 T-51-25 tanium alloy 500 00 Maximum 8 MP 300 Ductile Castro 200 700...
Homework Set #6-Chapter 6 Problem 6.87 4 of 10 > The beam has a rectangular cross section with b = 8 in. 2b 6 ft Part A Determine the largest maximum intensity wo of the triangular distributed load that can be supported if the allowable bending stress is σ 1-1.7 ksi Express your answer to three significant figures. uo = Submit Provide Feedback Next >
DQuestion 17 5 pts The cross section of a composite beam made of aluminum and steel is shown in the figure. The moduli of elasticity are Ea 75 GPa and Es 200 GPa. Under the action of a bending moment that produces a maximum stress of 50 MPa in the aluminum, what is the maximum stress in the steel (MPa)? 30 mm 40 mm Aluminunm Steel 80 mm 0
The allowable bending stress is σ1ow-22 ksi and the allowable shear stress is Tallow 12 ksi. (Figure 1) Part A Select the lightest steel wide-flange beam from Appendix B that will safely support the loading shown. If there are several choicas of equal weight, choose the one with the shortest height. w14 × 26 W8 x 31 W10 × 39 w12 × 22 W12 × 26 W14 x 22 W10 × 30 W8 × 40 Submit Request Answer Figure 1...
DE = 29
Question 4: Indeterminate Beam Design and Deflection A 2014-T6 aluminium cantilever beam is rigidly fixed to a wall and supported at the free end with a roller support, shown below. The beam is loaded with a distributed load, W, of 10kN/m and a point load, P of 55kN. Both the distributed load and the point load act in the direction shown in the image below. Note, the parameter DE is related to your student number as described...
