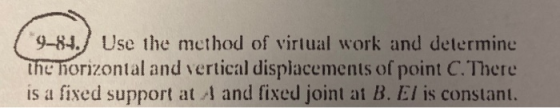

100 lbſt - 8 ft- 10 ft Prohs. 9-11/9-85 (9–84. Use the method of virtual work...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

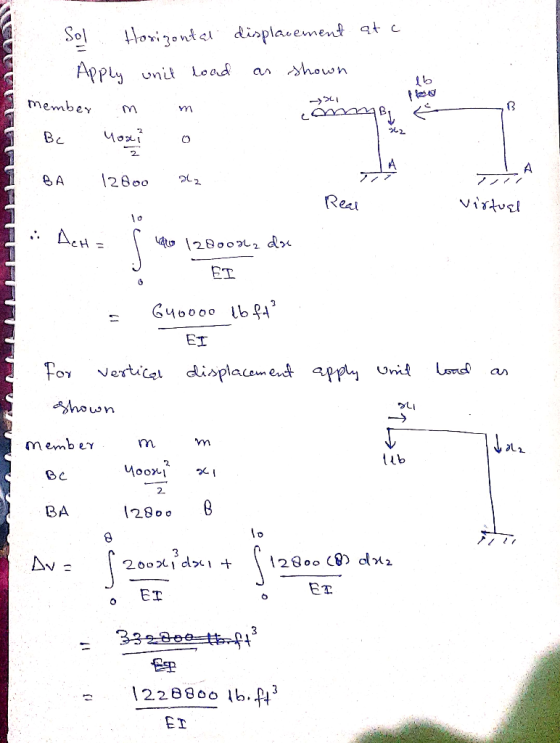

displacement at c.. as shown 2 Sol Horizontal Apply unit wad a member n m 1 Bc noxio . commB E BA 12800 az Real Virtual 1. Ac

Answer 2

Similar Homework Help Questions

Use the method of virtual work and determine the horizontal and vertical displacements of point C....

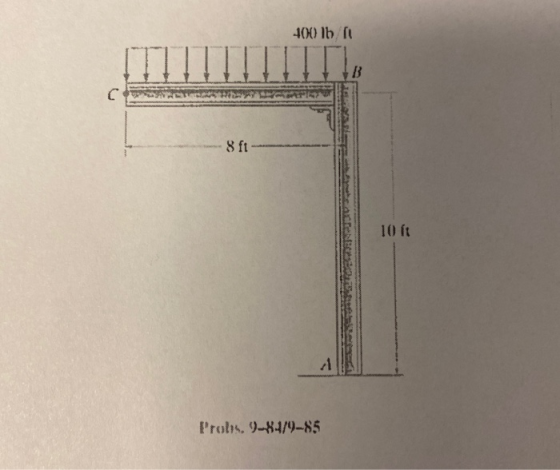

Use the method of virtual work and determine the horizontal and vertical displacements of point C. There is a fixed support at A and fixed joint at B. El is constant. Prob. 8-49 400 lb/ft с -8 ft 10 ft
(Virtual Work Determinate) Problem 5. Virtual Work Method. Determine the horizontal displacement at B. The support...

(Virtual Work Determinate) Problem 5. Virtual Work Method. Determine the horizontal displacement at B. The support at A is a pin and D is a roller. El is constant. (16 points) 4 kip/ft SBh B 15 ft. C 15 ft. 10 ft. A What is the horizontal displacement at B
(Virtual Work Indeterminate) Problem 6. Virtual Work Method. Determine the reaction at A. The support at...

(Virtual Work Indeterminate) Problem 6. Virtual Work Method. Determine the reaction at A. The support at A is a roller and C is fixed. El is constant. (16 points) RA с 10 ft. 5 ft. 4 kip B

(Virtual Work Indeterminate) Problem 6. Virtual Work Method. Determine the reaction at A. The support at...

(Virtual Work Indeterminate) Problem 6. Virtual Work Method. Determine the reaction at A. The support at A is a roller and C is fixed El is constant. (16 points) RA С 10 ft. 5 ft. 4 kip B What is the reaction at A
QUESTION 5 16 points (Virtual Work Determinate) Problem 5. Virtual Work Method. Determine the horizontal displacement...

QUESTION 5 16 points (Virtual Work Determinate) Problem 5. Virtual Work Method. Determine the horizontal displacement at B. The support at A is a pin and D is a roller. El is constant. (16 points) 4 kip/ft Sen B 15 ft 15 ft 10 ft A What is the horizontal displacement at B TT T Arial 3 (12pt) т III III Path: P Words:0 QUESTION 6 16 points Sav (Virtual Work indeterminate) Problem 6. Virtual Work Method. Determine the reaction...
(Virtual Work Determinate) Problem 5. Virtual Work Method. Determine the horizontal displacement at B. The support...

(Virtual Work Determinate) Problem 5. Virtual Work Method. Determine the horizontal displacement at B. The support at A is a pin and D is a roller. El is constant. (16 points) SBM 4 kip/ft B 15 ft. с 15 ft. 10 ft D Tz A 777

Use Method of Virtual Work. 1. The 10 ft long steel (E = 29,000 ksi) cantilever...

Use Method of Virtual Work. 1. The 10 ft long steel (E = 29,000 ksi) cantilever beam shown below has a fixed support at the left end (Point A). The beam supports a 10 kips (downward) load at Point B and a 50 k-ft "point couple" (clockwise) at the free end of the cantilever (Point C). Region AB is 6 ft long with moment of inertia IAB = 500 in". Region BC is 4 ft long with moment of inertia...
Path: Words:0 QUESTION 6 16 points (Virtual Work Indeterminate) Problem 6. Virtual Work Method. Determine the...

Path: Words:0 QUESTION 6 16 points (Virtual Work Indeterminate) Problem 6. Virtual Work Method. Determine the reaction at A. The support at A is a roller and C is fixed. El is constant. (16 points) RA 10 ft 5 ft 4 kip B What is the reaction at A TTT Arial 3 (12pt) T !!! Path:p Words. QUESTION 7 22 points Sav (Slope-Deflection) Problem 7 Using Slope-Deflection Method, write all equations using numeric standard decimal values for calculations (Not Eractions....
Problem 2 Determine the vertical displacement of joint C. Use the method of virtual work. E...

Problem 2 Determine the vertical displacement of joint C. Use the method of virtual work. E A is a roller and D is a hinge support. 29,000 ksi 6 ft wall 2 in2 8 ft 2 in A 2 in 80 k

UESTION 4 16 po (Virtual Work Truss) Problem 4. Virtual Work Method. Determine the horizontal deflection...

UESTION 4 16 po (Virtual Work Truss) Problem 4. Virtual Work Method. Determine the horizontal deflection at B. Assume all members are pin- connected at their ends. AE is constant (46 points) 3 kip Seh 4 ft 3 ft B 4 ft. 6 ft А E What is the horizontal displacement at B TTT Arial 3 (12pt) vт !!! III Words:0 Path:p 16 points QUESTION 5 (Virtual Work Determinate) Problem 5. Virtual Work Method. Determine the horizontal displacement at B....
