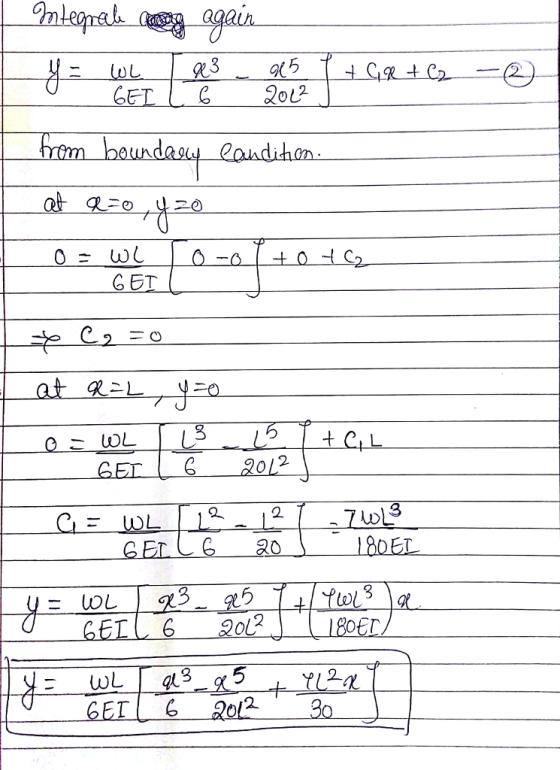

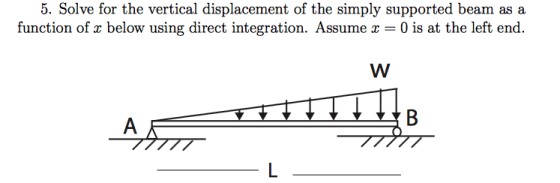

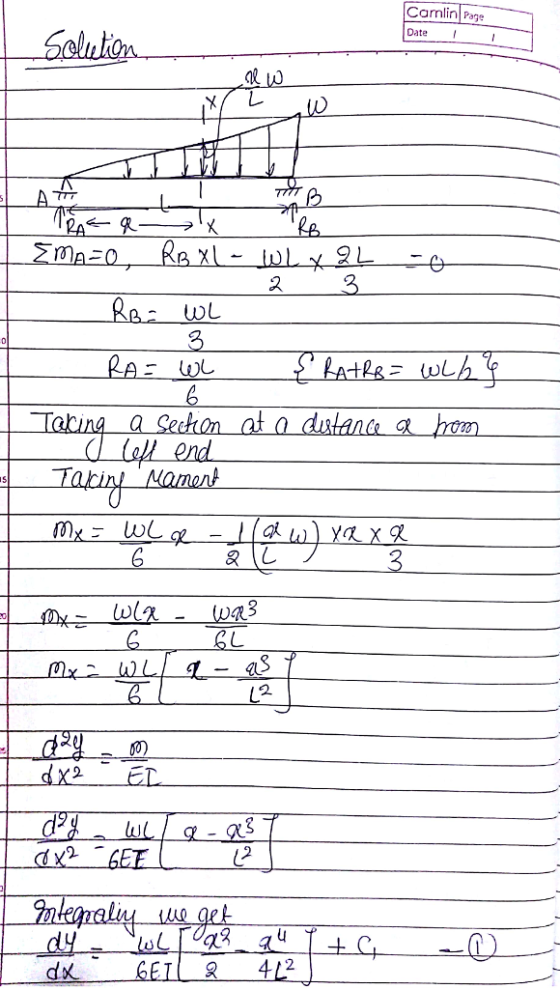

Solve for the vertical
displacement of the simply supported beam as a
function of x below using direct integration. Assume x
= 0 is at the left end.
Homework Answers
Add Answer to:
Solve for the vertical
displacement of the simply supported beam as a
function of x below...
Consider the simply supported beam shown in the figure below. Let x be the distance measured...
Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 48 KN B kN/m D internal pin...
Consider the simply supported beam shown in the figure below. Let x be the distance measured...
Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 48 KN 8 kN/m UT 24 kN-m...
Consider the simply supported beam shown in the figure below. Let x be the distance measured...
Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and c. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 8 kN/m 48 KN 24 KN-m MacBook...
Consider the simply supported beam shown in the figure below. Let x be the distance measured...
Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the şember between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 8 kN/m 48 KN 24 N- MacBook...
Consider the simply supported beam shown in the figure below. Let x be the distance measured...
Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and c. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 8 kN/m 48 KN 24 KN-m MacBook...
20 Question 14 Consider the simply supported beam shown in the figure below. Let x be...
20 Question 14 Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is o. 8 kN/m 48 KN...
the figure below. Let x be the distance measured from left Consider the simply supported beam...
the figure below. Let x be the distance measured from left Consider the simply supported beam shown end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is O. 48 KN 8 kN/m B с D internal...
Question 3 A beam is embedded on its left side (x 0) and simply supported on...
Question 3 A beam is embedded on its left side (x 0) and simply supported on its right (- L). Suppose the load on it is w(z) = uo. Compute the function of its deflection. (Note: embedded implies y(0) = 0 = y(0). Simply supported at = L implies y(L) = 0 = y"(L)).
Consider the simply supported beam shown in the figure below. Let xbe the distance measured from...
Consider the simply supported beam shown in the figure below. Let xbe the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 48 KN 8 kN/m 24 kN-m А B...
Question 3 A beam is embedded on its left side ( 0) and simply supported on its right ( L). Suppose the load on it is w(x) w Compute the function of its deflection. (Note: embedded implies y(0) = 0 =...
Question 3 A beam is embedded on its left side ( 0) and simply supported on its right ( L). Suppose the load on it is w(x) w Compute the function of its deflection. (Note: embedded implies y(0) = 0 = y'(0). Simply supported at x = L implies y(L) = 0 = y"(L)).
Question 3 A beam is embedded on its left side ( 0) and simply supported on its right ( L). Suppose the load on it is...
Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 48 KN B kN/m D internal pin...
Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 48 KN 8 kN/m UT 24 kN-m...
Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and c. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 8 kN/m 48 KN 24 KN-m MacBook...
Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the şember between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 8 kN/m 48 KN 24 N- MacBook...
Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and c. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 8 kN/m 48 KN 24 KN-m MacBook...
20 Question 14 Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is o. 8 kN/m 48 KN...
the figure below. Let x be the distance measured from left Consider the simply supported beam shown end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is O. 48 KN 8 kN/m B с D internal...
Question 3 A beam is embedded on its left side (x 0) and simply supported on its right (- L). Suppose the load on it is w(z) = uo. Compute the function of its deflection. (Note: embedded implies y(0) = 0 = y(0). Simply supported at = L implies y(L) = 0 = y"(L)).
Consider the simply supported beam shown in the figure below. Let xbe the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 48 KN 8 kN/m 24 kN-m А B...
Question 3 A beam is embedded on its left side ( 0) and simply supported on its right ( L). Suppose the load on it is w(x) w Compute the function of its deflection. (Note: embedded implies y(0) = 0 = y'(0). Simply supported at x = L implies y(L) = 0 = y"(L)).
Question 3 A beam is embedded on its left side ( 0) and simply supported on its right ( L). Suppose the load on it is...
