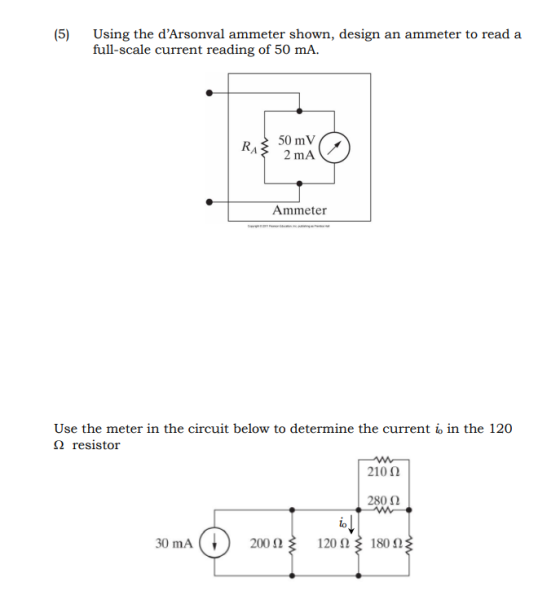

(5) Using the d'Arsonval ammeter shown, design an ammeter to read a full-scale current reading of...
A circuit you're building needs an ammeter that goes from 0 mA to a full-scale reading...
A circuit you're building needs an ammeter that goes from 0 mA to a full-scale reading of 60.0 mA . Unfortunately, the only ammeter in the storeroom goes from 0μA to a full-scale reading of only 500μA. Fortunately, you've just finished a physics class, and you realize that you can make this ammeter work by putting a resistor in parallel with it, as shown in the figure (Figure 1) . You've measured that the resistance of the ammeter is 90.0...
A circuit you’re building needs an ammeter that goes from 0 mA to a full-scale reading...
A circuit you’re building needs an ammeter that goes from 0 mA to a full-scale reading of 50.0 mA. Unfortunately, the only ammeter in the storeroom goes from 0 μA to a full-scale reading of only 500 μA. Fortunately, you can make this ammeter work by putting it in a measuring circuit, as shown in Figure 65 This lets a certain fraction of the current pass through the meter; knowing this value, you can deduce the total current. Assume that...
Ammeter and Resistance
A circuit you're building needs an ammeter that goes from 0 mA to a full-scale reading of 40.0 mA. Unfortunately, the only ammeter in the storeroom goes from 0 μAto a full-scale reading of only 500 μA. Fortunately, you can make this ammeter work by putting it in a measuring circuit, as shown in the figure. This lets acertain fraction of the current pass through the meter; knowing this value, you can deduce the total current. Assume that the ammeter...
Design a current divider/shunt resistance that will allow a lmA (full scale) 140 2 (internal resistance)...
Design a current divider/shunt resistance that will allow a lmA (full scale) 140 2 (internal resistance) d'Arsonval meter to measure 10mA at full scale (i.e. iunknown 10 mA, imeter 1 mA, Rmeter 140 , Rshunt?). NOTE: You may need to use up to two standard resistor values in series and/or parallel combinations to reach the needed shunt resistance. Lab values are: 10 22, 33, 47, 56, 68, 82, 100, 220, 330, 470, 560, 680, 820, lk, 2.2k, ..., IM2 Calculate...
Question One: In the figure below, what is the reading on the ammeter in each case...
Question One: In the figure below, what is the reading on the ammeter in each case .5 .6 (A) If you connected the circuit to the 3A setting on the ammeter, then the reading will be (B) If you connected the circuit to the 1A setting on the ammeter, then the reading will be (C) If you connected the circuit to the 300 mA setting on the ammeter, then the reading will be uestion Two: (A) Is the equivalent resistance,...
Exercise 2. An instrument used to measure current is called an ammeter. The ammeter is connected...
Exercise 2. An instrument used to measure current is called an ammeter. The ammeter is connected into a circuit in series in the loop in which the desired current reading is required. The resistance of an ideal ammeter is zero, and it is essential in real ammeters that the resistance of the instrument be very small compared to other resistances in the circuit. Why? R2 Ri a)-A meter to measure potential difference is called a voltmeter. To find the potential...
A galvanometer of resistance 100 Ω gives full-scale deflection when its current is 1.0 mA. It...
A galvanometer of resistance 100 Ω gives full-scale deflection when its current is 1.0 mA. It is used to construct an ammeter whose full-scale reading is 100 A. If the shunt resistor consists of a piece of 10-gauge copper wire (diameter 2.59 mm), what should its length be
Could use some guidance and help on this Ammeter lab. Spe ifically on how to build...
Could use some guidance and help on this Ammeter lab. Spe
ifically on how to build the circuit on a bread board.
80% . 1:30 PM engrcir-1-7.pdf Ammeter Introduction Th c purpose of this lab is to design and build our own analog ammeter The D'Arsonval movement is the key component that allows us to build an analog voltmcter and ammeter. This movement contains a coil and magnet that sense current flowing through the movement. When current flows through the...
Problem 5 - variation of problem 30.64: Using the circuit shown in Figure 4, a) Find the reading in each ammeter...
Problem 5 - variation of problem 30.64: Using the circuit shown in Figure 4, a) Find the reading in each ammeter and voltmeter just after switch S is closed b) Find the reading in each ammeter and voltmeter after S has been closed a very long time. c) At what time does the power in the inductor equal the power in the 75 Ω resistor? 100.0Ω 100.0Ω 15.0mH 50.0V 50.0Ω D 75.0Ω
Problem 5 - variation of problem 30.64: Using...
Part The voltage across R, in the crout from Part A is to be measured using...
Part The voltage across R, in the crout from Part A is to be measured using an analog voltmeter. The votimete has a 150 mV,50 A movement and Miscale reading of 10 V. What is the reading on the volumelor? Recall that R. - 20 kn. R10 kl.and t = 12 V Express your answer in V to five significant figures View Available Hits) IVO AX 1 veo ? V 3.8905 X Incorrect: Try Again 18 apto remaining An analog...
A circuit you’re building needs an ammeter that goes from 0 mA to a full-scale reading of 50.0 mA. Unfortunately, the only ammeter in the storeroom goes from 0 μA to a full-scale reading of only 500 μA. Fortunately, you can make this ammeter work by putting it in a measuring circuit, as shown in Figure 65 This lets a certain fraction of the current pass through the meter; knowing this value, you can deduce the total current. Assume that...
A circuit you're building needs an ammeter that goes from 0 mA to a full-scale reading of 40.0 mA. Unfortunately, the only ammeter in the storeroom goes from 0 μAto a full-scale reading of only 500 μA. Fortunately, you can make this ammeter work by putting it in a measuring circuit, as shown in the figure. This lets acertain fraction of the current pass through the meter; knowing this value, you can deduce the total current. Assume that the ammeter...
Design a current divider/shunt resistance that will allow a lmA (full scale) 140 2 (internal resistance) d'Arsonval meter to measure 10mA at full scale (i.e. iunknown 10 mA, imeter 1 mA, Rmeter 140 , Rshunt?). NOTE: You may need to use up to two standard resistor values in series and/or parallel combinations to reach the needed shunt resistance. Lab values are: 10 22, 33, 47, 56, 68, 82, 100, 220, 330, 470, 560, 680, 820, lk, 2.2k, ..., IM2 Calculate...
Question One: In the figure below, what is the reading on the ammeter in each case .5 .6 (A) If you connected the circuit to the 3A setting on the ammeter, then the reading will be (B) If you connected the circuit to the 1A setting on the ammeter, then the reading will be (C) If you connected the circuit to the 300 mA setting on the ammeter, then the reading will be uestion Two: (A) Is the equivalent resistance,...
Exercise 2. An instrument used to measure current is called an ammeter. The ammeter is connected into a circuit in series in the loop in which the desired current reading is required. The resistance of an ideal ammeter is zero, and it is essential in real ammeters that the resistance of the instrument be very small compared to other resistances in the circuit. Why? R2 Ri a)-A meter to measure potential difference is called a voltmeter. To find the potential...
Could use some guidance and help on this Ammeter lab. Spe
ifically on how to build the circuit on a bread board.
80% . 1:30 PM engrcir-1-7.pdf Ammeter Introduction Th c purpose of this lab is to design and build our own analog ammeter The D'Arsonval movement is the key component that allows us to build an analog voltmcter and ammeter. This movement contains a coil and magnet that sense current flowing through the movement. When current flows through the...
Problem 5 - variation of problem 30.64: Using the circuit shown in Figure 4, a) Find the reading in each ammeter and voltmeter just after switch S is closed b) Find the reading in each ammeter and voltmeter after S has been closed a very long time. c) At what time does the power in the inductor equal the power in the 75 Ω resistor? 100.0Ω 100.0Ω 15.0mH 50.0V 50.0Ω D 75.0Ω
Problem 5 - variation of problem 30.64: Using...
Part The voltage across R, in the crout from Part A is to be measured using an analog voltmeter. The votimete has a 150 mV,50 A movement and Miscale reading of 10 V. What is the reading on the volumelor? Recall that R. - 20 kn. R10 kl.and t = 12 V Express your answer in V to five significant figures View Available Hits) IVO AX 1 veo ? V 3.8905 X Incorrect: Try Again 18 apto remaining An analog...
