Question

Problem: In the circuit shown in Figure 1, Vee = 1.2 V, Vcc = 20 V, Rp = 60 kN, Rc = 2 k. The input signal is a sinusoidal vo

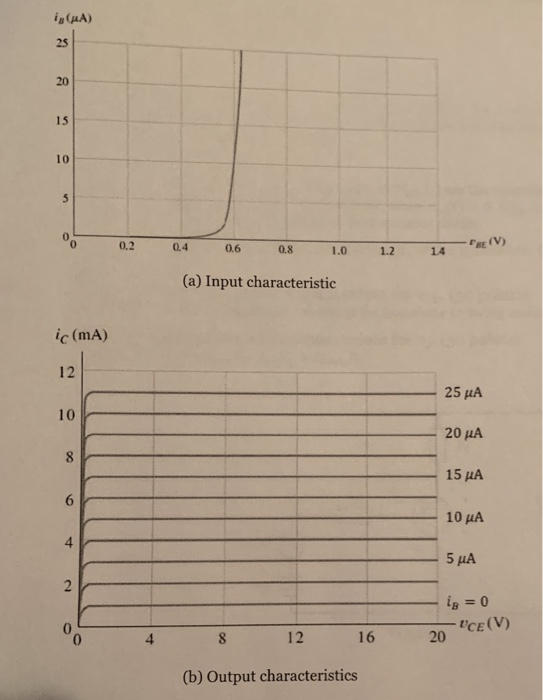

O 0.2 0.4 0.6 0.8 1.0 12 14 (a) Input characteristic ic (mA) 25 MA 20 4A 15 A 10 MA 5 ЦА ig = 0 - Uce(V) 20 8 12 16 (b) Outpu
0 0
Add a comment Improve this question Transcribed image text
Answer #1

For DC operating point

set vin=0

then

KVL at input loop

VBB = 18 Rg + VBE

this can be written as

I_B=\frac{V_{BB}-V_{BE}}{R_B}=\frac{-1}{R_B}V_{BE}++\frac{V_{BB}}{R_B}

substituting the given values

I_B=-0.167\times 10^{-4}V_{BE}+0.2\times 10^{-4}

this equation is a equation of line .graph it on the input characteristics given

At vBE=0 Ib=20uA, at iB=0, vBE=VBB=1.2V

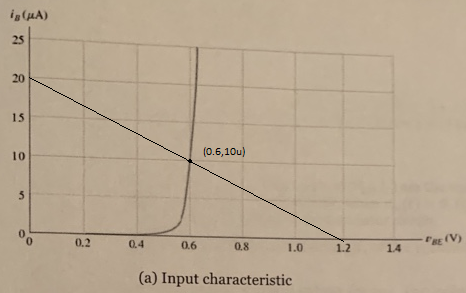

is (A) (0.6,10u) 0.4 0.6 0.8 1.0 (a) Input characteristic

therefore, the operating point is

I_B=10\mu A,V_{BE}=0.6V

Now, KVL at output gives

V_{CC}=I_CR_C+V_{CE}

therefore

I_C=\frac{V_{CC}-V_{CE}}{R_C}=\frac{-1}{R_C}V_{CE}+\frac{V_{CC}}{R_C}

substituting the given values

I_C=-0.5mV_{CE}+10m

graph this line on output characteristics

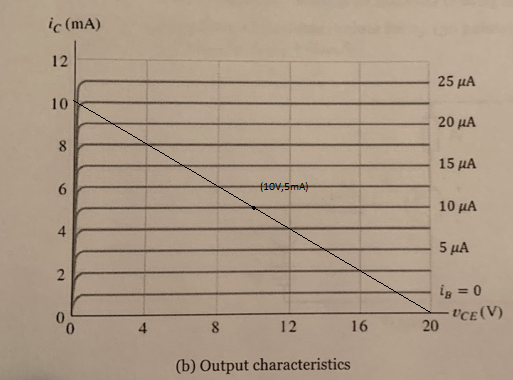

ic (mA) 25uA 10 20 MA 15uA (10V,5mA) 10 MA 5 A 1₂=0 20ce(V) 16 (b) Output characteristics

therefore, the operating point is

Ic=5mA

Vce=10V

b)

\beta=\frac{I_C}{I_B}=\frac{5m}{10\mu}=500

c)

FRom output graph

Vce(sat)=~1

therefore

v_{CE}|_{\max}=V_{CE}-V_{CEsat}=10-1=9V

v_{CE}|_{\min}=V_{CE}-V_{CE}|_{I_B=0}=10-18=-8V

similarly

i_{CE}|_{\min}=I_{CE}-I_{CEsat}=5m-9.5m=-4.5mA

i_{CE}|_{\max}=I_{CE}-I_{CE}|_{I_B=0}=5m-1m=4mA

4)

therefore

v_O_{\max}=i_{CE}|_{\max}R_C=4m\times2k=8V

v_O_{\min}=i_{CE}|_{\min}R_C=-4.5m\times2k=-9V
