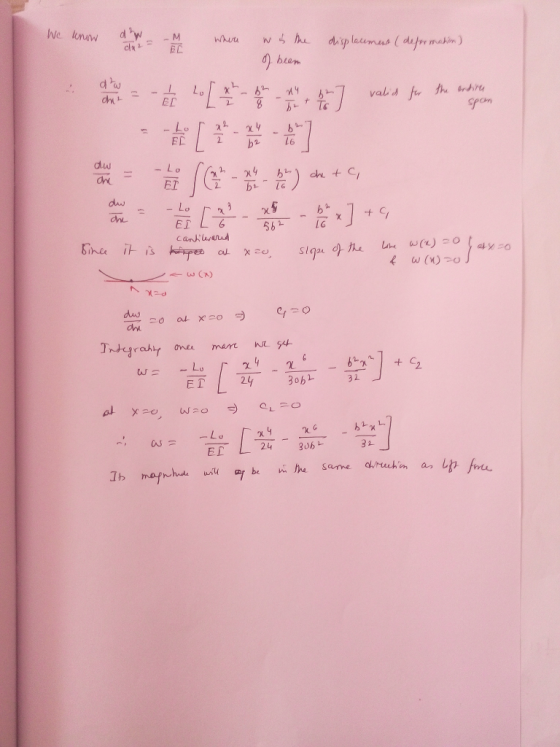

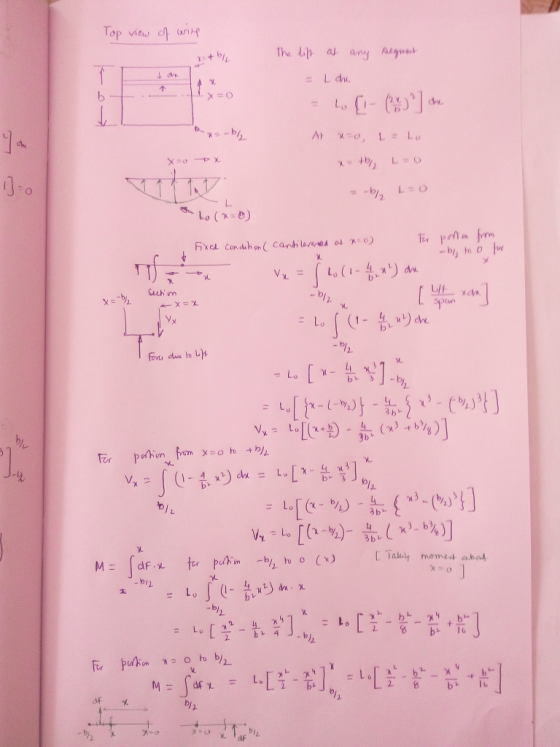

The lift force per unit span length on an aircraft wing is given
by following function:
where L0 is the magnitude of the lift at the
centerline and b is the span length. Determine the Shear force(V),
Moment(M) and Displacement(w) as a function of x. The centerline of
the wing is located at x = 0 and the wing can be assumed to be
cantilevered at that point.
Homework Answers
Add Answer to:
The lift force per unit span length on an aircraft wing is given
by following function:...
can you help with this problem, please? Thanks. 6. The lift loading on the wing of...
can
you help with this problem, please? Thanks.
6. The lift loading on the wing of an aircraft is well represented by: w(x) = w. (2/1). (5) In formula (5), w, is the lift force per unit (span) length at the root of the wing (the end attached to the fuselage), 1 is the length (aka span) of the wing, x is the distance from the wing tip, and 0 < a < 1 is a known exponent that depends...
Problem 1 For a certain wing the lift force is 3000 lb when it is moving at 200mph through standa...
Problem 1 For a certain wing the lift force is 3000 lb when it is moving at 200mph through standard see level atmosphere conditions. The centre of pressure is 2.4 ft aft of the leading edge. The span is 36 ft, the average chord is 6 ft. Find the pitching moment coefficient about: a) the leading edge; b) the centre of pressure; c) the trailing edge. Problem 2 If the aircraft of Problem 1 travels, at the same angle of...
The wing of a fighter aircraft, carrying a missile at its tip, as shown in the...
The wing of a fighter aircraft, carrying a missile at its tip, as shown in the figure below, can be approximated as equivalent cantilever beam with El 15 X 109 N-m2 about the vertical axis and length l = 10m. If the equivalent mass of the wing is m = 2500 kg, determine the vibration response of the wing due to the release of the missile. Assume that the force on m due to the release of the missile can...
The wing of a fighter aircraft, carrying a missile at its tip, as shown in Figure...
The wing of a fighter aircraft, carrying a missile at its tip, as shown in Figure 1, can be approximated as an equivalent cantilever beam with EI 15 X 10 N-m about the vertical axis and length L 10m The equivalent mass of the wing, including the mass of the missile and its carriage system, at the tip of the wing is m-2,500 kg. Assume a damper coefficient of 20,000 N-m /s. The load is modeled as shown in Figure...
For the beam A) The shear force and the bending moment as function of x, where...
For the beam
A) The shear force and the bending moment as function of x,
where 5 < x < 8 m
B) The shear force and bending moment at point C located 6.5 m
from the support A.
Please include units
V (x) =
M (x) =
B)
Please solve prior to comparing answers and fully understanding,
I'll rate if correct. Much appreciated
S kN 15 kN/m 20kN m
1. (18%) A certain thin, symmetric airfoil stalls at angles of attack greater than α-16". At α 16", it produces a lift per unit span of L' 2,000 Nm at standard sea-level conditions; its c...
1. (18%) A certain thin, symmetric airfoil stalls at angles of attack greater than α-16". At α 16", it produces a lift per unit span of L' 2,000 Nm at standard sea-level conditions; its chord length is c m. a) Use thin airfoil theory to calculate the airfoil speed, Vp, just prior to stall, i.e. at a 16 b) For this real airfoil, will the a at which stall occurs depend on the Reynolds number? Why? c) Use thin airfoil...
Problem 4 (20 points) (a) An NACA 2412 airfoil with chord length of 6 ft is...
Problem 4 (20 points) (a) An NACA 2412 airfoil with chord length of 6 ft is at a 5° angle of attack during sea-level flight at V = 100 ft/s. Calculate the lift and moment (about the quarter chord) per unit span. (See Fig. 4.10). (b) Find the profile drag coefficient for the airfoil of Part (a), and drag force per unit span. (See Fig. 4.11).
Problem 4 (20 points) (a) An NACA 2412 airfoil with chord length of 6 ft is...
Problem 4 (20 points) (a) An NACA 2412 airfoil with chord length of 6 ft is at a 5° angle of attack during sea-level flight at V = 100 ft/s. Calculate the lift and moment (about the quarter chord) per unit span. (See Fig. 4.10). (b) Find the profile drag coefficient for the airfoil of Part (a), and drag force per unit span. (See Fig. 4.11).
Consider a thin rod of length L whose mass per unit of length is given by...
Consider a thin rod of length L whose mass per unit of length is given by λ(x)=M/3L^2(x + L/4). Calculate (a) the mass of the rod and (b) the moment of inertia about an axis through the rod at L/2.
Problem l The force P= 8 kN and the frame material has a mass per unit...
Problem l The force P= 8 kN and the frame material has a mass per unit length of 36 kg/m. Determine support reactions at A and B and the internal normal force, shear force, and bending moment at a section passing through point Ignore the mass of the pulley. 0.1 m 0.5 m Ans. FA 33.2kNT 31.9kN 0.75 m 0.75 m 0.75 m-
can
you help with this problem, please? Thanks.
6. The lift loading on the wing of an aircraft is well represented by: w(x) = w. (2/1). (5) In formula (5), w, is the lift force per unit (span) length at the root of the wing (the end attached to the fuselage), 1 is the length (aka span) of the wing, x is the distance from the wing tip, and 0 < a < 1 is a known exponent that depends...
Problem 1 For a certain wing the lift force is 3000 lb when it is moving at 200mph through standard see level atmosphere conditions. The centre of pressure is 2.4 ft aft of the leading edge. The span is 36 ft, the average chord is 6 ft. Find the pitching moment coefficient about: a) the leading edge; b) the centre of pressure; c) the trailing edge. Problem 2 If the aircraft of Problem 1 travels, at the same angle of...
The wing of a fighter aircraft, carrying a missile at its tip, as shown in the figure below, can be approximated as equivalent cantilever beam with El 15 X 109 N-m2 about the vertical axis and length l = 10m. If the equivalent mass of the wing is m = 2500 kg, determine the vibration response of the wing due to the release of the missile. Assume that the force on m due to the release of the missile can...
The wing of a fighter aircraft, carrying a missile at its tip, as shown in Figure 1, can be approximated as an equivalent cantilever beam with EI 15 X 10 N-m about the vertical axis and length L 10m The equivalent mass of the wing, including the mass of the missile and its carriage system, at the tip of the wing is m-2,500 kg. Assume a damper coefficient of 20,000 N-m /s. The load is modeled as shown in Figure...
For the beam
A) The shear force and the bending moment as function of x,
where 5 < x < 8 m
B) The shear force and bending moment at point C located 6.5 m
from the support A.
Please include units
V (x) =
M (x) =
B)
Please solve prior to comparing answers and fully understanding,
I'll rate if correct. Much appreciated
S kN 15 kN/m 20kN m
1. (18%) A certain thin, symmetric airfoil stalls at angles of attack greater than α-16". At α 16", it produces a lift per unit span of L' 2,000 Nm at standard sea-level conditions; its chord length is c m. a) Use thin airfoil theory to calculate the airfoil speed, Vp, just prior to stall, i.e. at a 16 b) For this real airfoil, will the a at which stall occurs depend on the Reynolds number? Why? c) Use thin airfoil...
Problem 4 (20 points) (a) An NACA 2412 airfoil with chord length of 6 ft is at a 5° angle of attack during sea-level flight at V = 100 ft/s. Calculate the lift and moment (about the quarter chord) per unit span. (See Fig. 4.10). (b) Find the profile drag coefficient for the airfoil of Part (a), and drag force per unit span. (See Fig. 4.11).
Problem 4 (20 points) (a) An NACA 2412 airfoil with chord length of 6 ft is at a 5° angle of attack during sea-level flight at V = 100 ft/s. Calculate the lift and moment (about the quarter chord) per unit span. (See Fig. 4.10). (b) Find the profile drag coefficient for the airfoil of Part (a), and drag force per unit span. (See Fig. 4.11).
Problem l The force P= 8 kN and the frame material has a mass per unit length of 36 kg/m. Determine support reactions at A and B and the internal normal force, shear force, and bending moment at a section passing through point Ignore the mass of the pulley. 0.1 m 0.5 m Ans. FA 33.2kNT 31.9kN 0.75 m 0.75 m 0.75 m-
