Please answer question 3 and
4

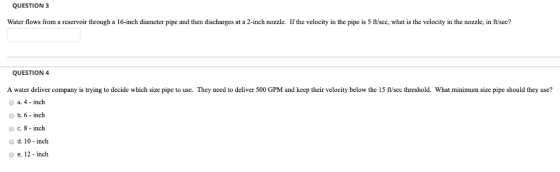

Question 3: Water flows from a reservoir through a 16-inch diameter pipe and then discharges at a 2-inch nozzle. If the velocity in the pipe is 5 ft/sec, what is the velocity in the nozzle, in ft/sec?
Question 4: A water deliver company is trying to decide which size pipe to use. They need to deliver 500 GPM and keep their velocity below the 15 ft/sec threshold. What minimum size pipe should they use?
Homework Answers
Thank you !!!
