Question

JAVA CODE Topic: BST Animation For each task, submit the source code with detail comments. Objective: javafx GUI program for BST Animation.

BSTAnimation.java, AbstractTree.java and Tree.java. Modify the BSTAnimation.java  (1) Add Show Preoreder and Show Postorder button. Insert these two buttons next to the Show Inorder button to display tree in selected order. (2) Currently removing node method is to replace the removed node by the highest node on left-subtree. Modify the method by using lowest node on the right-subtree instead.

AbstractTree.java

public abstract class AbstractTree<E extends Comparable<E>>
implements Tree<E> {
@Override /** Inorder traversal from the root*/
public void inorder() { }

@Override /** Postorder traversal from the root */
public void postorder() {}

@Override /** Preorder traversal from the root */
public void preorder() {}

@Override /** Return true if the tree is empty */
public boolean isEmpty() {
return getSize() == 0;
}
}

Answer 1

Please let me know if you have any doubts or you want me to modify the answer. And if you find this answer useful then don't forget to rate my answer as thumps up. Thank you! :)

import javafx.application.Application;
import javafx.geometry.Pos;
import javafx.stage.Stage;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.Label;
import javafx.scene.control.TextField;
import javafx.scene.layout.BorderPane;
import javafx.scene.layout.HBox;

public class BSTAnimation extends Application {
    @Override
    public void start(Stage primaryStage) {
        BST<Integer> tree = new BST<>();

        BorderPane pane = new BorderPane();
        BTView view = new BTView(tree);
        pane.setCenter(view);

        TextField tfKey = new TextField();
        tfKey.setPrefColumnCount(3);
        tfKey.setAlignment(Pos.BASELINE_RIGHT);
        Button btInsert = new Button("Insert");
        Button btDelete = new Button("Delete");
        Button btSearch = new Button("Search");
        Button btInOrder = new Button("Inorder");
        Button btPreOrder = new Button("Preorder");
        Button btPostOrder = new Button("Postorder");
        Button btBreadthFirst = new Button("Breadth-First");
        Button btHeight = new Button("Height");
        HBox hBox = new HBox(5);
        hBox.getChildren().addAll(new Label("Enter a key: "),
                tfKey, btInsert, btDelete, btSearch, btInOrder, btPreOrder, btPostOrder, btBreadthFirst, btHeight);
        hBox.setAlignment(Pos.CENTER);
        pane.setBottom(hBox);

        btInsert.setOnAction(e -> {
            int key = Integer.parseInt(tfKey.getText());
            if (tree.search(key)) {
                view.displayTree();
                view.setStatus(key + " is already in the tree");
            }
            else {
                tree.insert(key);
                view.displayTree();
                view.setStatus(key + " is inserted in the tree");
            }
        });

        btDelete.setOnAction(e -> {
            int key = Integer.parseInt(tfKey.getText());
            if (!tree.search(key)) {
                view.displayTree();
                view.setStatus(key + " is not in the tree");
            }
            else {
                tree.delete(key);
                view.displayTree();
                view.setStatus(key + " is deleted from the tree");
            }
        });

        btSearch.setOnAction(e ->
        {
            int key = Integer.parseInt(tfKey.getText());
            if (!tree.search(key))
            {
                view.displayTree();
                view.setStatus(key + " is not in the tree");
            }
            else
            {
                view.searchPath(tree.path(key));
                view.displayTree();
                view.setStatus("Found " + key + " in the tree");
                view.searchPath(null);
            }
        });

        btInOrder.setOnAction(e ->
        {

            if (tree.isEmpty())
            {
                view.displayTree();
                view.setStatus("Tree is empty");
            }
            else
            {
                view.displayTree();

                view.setStatus("Inorder traversal: " + tree.inorderList().toString());
            }
        });

        btPreOrder.setOnAction(e ->
        {
            if (tree.isEmpty())
            {
                view.displayTree();
                view.setStatus("Tree is empty");
            }
            else
            {
                view.displayTree();
                view.setStatus("Preorder traversal: " + tree.preorderList().toString());
            }
        });

        btPostOrder.setOnAction(e ->
        {
            if (tree.isEmpty())
            {
                view.displayTree();
                view.setStatus("Tree is empty");
            }
            else
            {
                view.displayTree();
                view.setStatus("PostOrder traversal: " + tree.postorderList().toString());
            }
        });

        btBreadthFirst.setOnAction(e ->
        {
            if (tree.isEmpty())
            {
                view.displayTree();
                view.setStatus("Tree is empty");
            }
            else
            {
                view.displayTree();
                view.setStatus("Breadth-First Traversal: " + tree.breadthFirstOrderList().toString());
            }
        });

        btHeight.setOnAction(e ->
        {
            view.displayTree();
            view.setStatus("Tree height is " + tree.height());
        });

        Scene scene = new Scene(pane, 700, 250);
        primaryStage.setTitle("BSTAnimation");
        primaryStage.setScene(scene);
        primaryStage.show();
    }

    public static void main(String[] args) {
        launch(args);
    }
}
--------------------------------------------------------------------------------------------------------------------------------------------------------------------
import java.util.ArrayList;
import java.util.LinkedList;
import java.util.List;
import java.util.Queue;

public class BST<E extends Comparable<E>> implements Tree<E> {
    protected TreeNode<E> root;
    protected int size = 0;

    public BST() {
    }

    public BST(E[] objects) {
        for (int i = 0; i < objects.length; i++)
            add(objects[i]);
    }

    @Override
    public boolean search(E e) {
        TreeNode<E> current = root;

        while (current != null) {
            if (e.compareTo(current.element) < 0) {
                current = current.left;
            }
            else if (e.compareTo(current.element) > 0) {
                current = current.right;
            }
            else
                return true;
        }

        return false;
    }

    @Override
    public boolean insert(E e) {
        if (root == null)

            root = createNewNode(e);
        else {
            TreeNode<E> parent = null;
            TreeNode<E> current = root;
            while (current != null)
                if (e.compareTo(current.element) < 0) {
                    parent = current;
                    current = current.left;
                }
                else if (e.compareTo(current.element) > 0) {
                    parent = current;
                    current = current.right;
                }
                else
                    return false;
            if (e.compareTo(parent.element) < 0)
                parent.left = createNewNode(e);

            else
                parent.right = createNewNode(e);
        }

        size++;
        return true;
    }

    protected TreeNode<E> createNewNode(E e) {
        return new TreeNode<>(e);
    }

    @Override
    public void inorder() {
        inorder(root);
    }

    protected void inorder(TreeNode<E> root) {
        if (root == null) return;
        inorder(root.left);
        System.out.print(root.element + " ");
        inorder(root.right);
    }

    @Override
    public void postorder() {
        postorder(root);
    }

    protected void postorder(TreeNode<E> root) {
        if (root == null) return;
        postorder(root.left);
        postorder(root.right);
        System.out.print(root.element + " ");
    }

    @Override
    public void preorder() {
        preorder(root);
    }

    protected void preorder(TreeNode<E> root) {
        if (root == null) return;
        System.out.print(root.element + " ");
        preorder(root.left);
        preorder(root.right);
    }

    public static class TreeNode<E> {
        protected E element;
        protected TreeNode<E> left;
        protected TreeNode<E> right;

        public TreeNode(E e) {
            element = e;
        }
    }

    @Override
    public int getSize() {
        return size;
    }

    public TreeNode<E> getRoot() {
        return root;
    }

    public java.util.ArrayList<TreeNode<E>> path(E e) {
        java.util.ArrayList<TreeNode<E>> list =
                new java.util.ArrayList<>();
        TreeNode<E> current = root;

        while (current != null) {
            list.add(current);
            if (e.compareTo(current.element) < 0) {
                current = current.left;
            }
            else if (e.compareTo(current.element) > 0) {
                current = current.right;
            }
            else
                break;
        }

        return list;
    }

    @Override
    public boolean delete(E e) {
        TreeNode<E> parent = null;
        TreeNode<E> current = root;
        while (current != null) {
            if (e.compareTo(current.element) < 0) {
                parent = current;
                current = current.left;
            }
            else if (e.compareTo(current.element) > 0) {
                parent = current;
                current = current.right;
            }
            else
                break;
        }

        if (current == null)
            return false;

        if (current.left == null) {
            if (parent == null) {
                root = current.right;
            }
            else {
                if (e.compareTo(parent.element) < 0)
                    parent.left = current.right;
                else
                    parent.right = current.right;
            }
        }
        else {
            TreeNode<E> parentOfRightMost = current;
            TreeNode<E> rightMost = current.left;

            while (rightMost.right != null) {
                parentOfRightMost = rightMost;
                rightMost = rightMost.right;
            }

            current.element = rightMost.element;

            if (parentOfRightMost.right == rightMost)
                parentOfRightMost.right = rightMost.left;
            else
                parentOfRightMost.left = rightMost.left;
        }

        size--;
        return true;
    }

    @Override
    public java.util.Iterator<E> iterator() {
        return new InorderIterator();
    }

    private class InorderIterator implements java.util.Iterator<E> {
        private java.util.ArrayList<E> list =
                new java.util.ArrayList<>();
        private int current = 0;
        private boolean canRemove = false;

        public InorderIterator() {
            inorder();
        }

        private void inorder() {
            inorder(root);
        }

        private void inorder(TreeNode<E> root) {
            if (root == null) return;
            inorder(root.left);
            list.add(root.element);
            inorder(root.right);
        }

        @Override
        public boolean hasNext() {
            return current < list.size();
        }

        @Override
        public E next() {
            if (hasNext())
                canRemove = true;
            else
                throw new java.util.NoSuchElementException();
            return list.get(current++);
        }

        @Override
        public void remove() {
            if (!canRemove)
                throw new IllegalStateException();
            else {
                delete(list.get(--current));
                canRemove = false;
            }

            list.clear();
            inorder();
        }
    }

    @Override
    public void clear() {
        root = null;
        size = 0;
    }

    public java.util.List<E> inorderList()
    {
        List<E> list = new ArrayList<E>();
        inorderList(root, list);
        return list;
    }
    private void inorderList(TreeNode<E> root, List<E> list)
    {
        if (root == null)
            return;
        inorderList(root.left, list);
        list.add(root.element);
        inorderList(root.right, list);

    }

    public java.util.List<E> preorderList()
    {
        List<E> list = new ArrayList<E>();
        preorderList(root, list);
        return list;

    }
    private void preorderList(TreeNode<E> root, List<E> list)
    {
        if (root == null)
            return;
        list.add(root.element);
        preorderList(root.left, list);
        preorderList(root.right, list);
    }

    public java.util.List<E> postorderList()
    {
        List<E> list = new ArrayList<E>();
        postorderList(root, list);
        return list;
    }
    private void postorderList(TreeNode<E> root, List<E> list)
    {
        if (root == null)
            return;
        postorderList(root.left, list);
        postorderList(root.right, list);
        list.add(root.element);
    }

    public java.util.List<E> breadthFirstOrderList()
    {
        Queue<TreeNode<E>> q = new LinkedList<TreeNode<E>>();
        List<E> list = new ArrayList<E>();
        q.add(root);
        while(!q.isEmpty())
        {
            TreeNode<E> node = q.remove();
            list.add(node.element);
            if (node.left != null)
                q.add(node.left);
            if (node.right != null)
                q.add(node.right);
        }
        return list;

    }

    public int height()
    {
        if (size == 0)
            return -1;
        else if (size == 1)
            return 0;
        else
        {
            return height(root) - 1;
        }
    }
    public int height(TreeNode<E> root)
    {
        if (root == null)
            return 0;
        else
            return 1 + Math.max(height(root.left), height(root.right));

    }
}

--------------------------------------------------------------------------------------------------------------------------------------------------------------------
import java.util.List;

import javafx.scene.layout.Pane;
import javafx.scene.paint.Color;
import javafx.scene.shape.Circle;
import javafx.scene.shape.Line;
import javafx.scene.text.Text;

public class BTView extends Pane {
    private BST<Integer> tree = new BST<>();
    private double radius = 15;
    private double vGap = 50;
    private List<?> path;

    BTView(BST<Integer> tree) {
        this.tree = tree;
        setStatus("Tree is empty");
    }

    public <E> void searchPath(List<E> list)
    {
        path = list;
    }

    public void setStatus(String msg) {
        getChildren().add(new Text(20, 20, msg));
    }

    public void displayTree() {
        this.getChildren().clear();
        if (tree.getRoot() != null) {
            displayTree(tree.getRoot(), getWidth() / 2, vGap,
                    getWidth() / 4);
        }
    }

    private void displayTree(BST.TreeNode<Integer> root,
                             double x, double y, double hGap) {
        if (root.left != null) {
            getChildren().add(new Line(x - hGap, y + vGap, x, y));
            displayTree(root.left, x - hGap, y + vGap, hGap / 2);
        }

        if (root.right != null) {
            getChildren().add(new Line(x + hGap, y + vGap, x, y));
            displayTree(root.right, x + hGap, y + vGap, hGap / 2);
        }

        Circle circle = new Circle(x, y, radius);
        circle.setFill(Color.WHITE);
        if(path!=null && !path.isEmpty())
        {
            if(path.contains(root))
                circle.setFill(Color.ORANGE);
        }
        circle.setStroke(Color.BLACK);
        getChildren().addAll(circle,
                new Text(x - 4, y + 4, root.element + ""));
    }
}

--------------------------------------------------------------------------------------------------------------------------------------------------------------------
import java.util.Collection;

public interface Tree<E> extends java.util.Collection<E> {
    public boolean search(E e);

    public boolean insert(E e);

    public boolean delete(E e);

    public int getSize();

    public default void inorder() {
        throw new UnsupportedOperationException();
    }

    public default void postorder() {
    }

    public default void preorder() {
    }

    @Override
    public default boolean isEmpty() {
        return size() == 0;
    };

    @Override
    public default boolean contains(Object e) {
        return search((E)e);
    }

    @Override
    public default boolean add(E e) {
        return insert(e);
    }

    @Override
    public default boolean remove(Object e) {
        return delete((E)e);
    }

    @Override
    public default int size() {
        return getSize();
    }

    @Override
    public default boolean containsAll(Collection<?> c) {
        return false;
    }

    @Override
    public default boolean addAll(Collection<? extends E> c) {
        return false;
    }

    @Override
    public default boolean removeAll(Collection<?> c) {
        return false;
    }

    @Override
    public default boolean retainAll(Collection<?> c) {
        return false;
    }

    @Override
    public default Object[] toArray() {
        return null;
    }

    @Override
    public default <T> T[] toArray(T[] array) {
        return null;
    }
}
--------------------------------------------------------------------------------------------------------------------------------------------------------------------

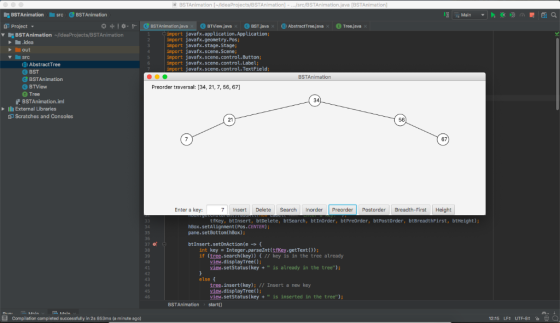

B TAnimation(-Ndeaprojects/ STAnimation. BSTAnimation sc BSTAnimation Project BSTAnimation -/ldeaProjects/BSTAnimation import javafx.application.Application import javafx.geometry.Pos import javafx.stage.Stage import javafx.scene.Scene import javafx.scene.control.Button; import javafx.scene.control.Label; import javafx.scene.control.TextField idea out src AbstractTree BST BSTAnimation BTView Tree BSTAnimation Preorder traversal: [34, 21, 7, 56,671 34 BSTAnimation.iml ▶ IlAu External Libraries Scratches and Consoles 21 56 67 Enter a key: 7 Insert Delete Search Inorder Preorder Postorder Breadth-First Height tfkey, btInsert, b ); btDelete, btSearch, btInorder, btPreörder, btPostörder, btBreadthFirst, btHeight hBox. setALignment (Pos.CENTER) pane. setBottom(hBox); 35 36 of 38 39 btinsert.setonAction( e → { int keyInteger.parseInt(tfKey.getText)); if (tree.search(key)) / key is in the tree already view.displayTree() view.setStatus(key is already in the tree") 41 42 43 else t tree.insert(key); // Insert a new key view.displayTree(0 view.setStatus (key is inserted in the tree"); 45 BSTAnimation start0 兆, ↓ H Compilation completed successfully in 2s 853ms (a minute ago) 12:15 LF2 UTF-8
