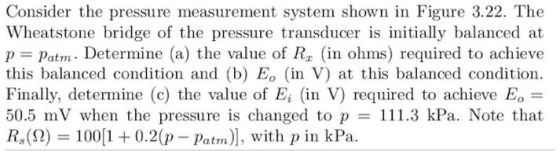

Consider the pressure measurement system shown in Figure 3.22. The Wheatstone bridge of the pressure transducer is intially balanced at p Patm. Determine (a) the value of R (in ohms) required to achieve this balanced condition and (b) E。 (in V) at this balanced condition. Finally, determine (c) the value of Ei (in V) required to achieve EO- 50.5 mV when the pressure is changed to p = 111.3 kPa. Note that Rs(Ω) 1001 + 0.2(p-patrn), with p in kPa.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

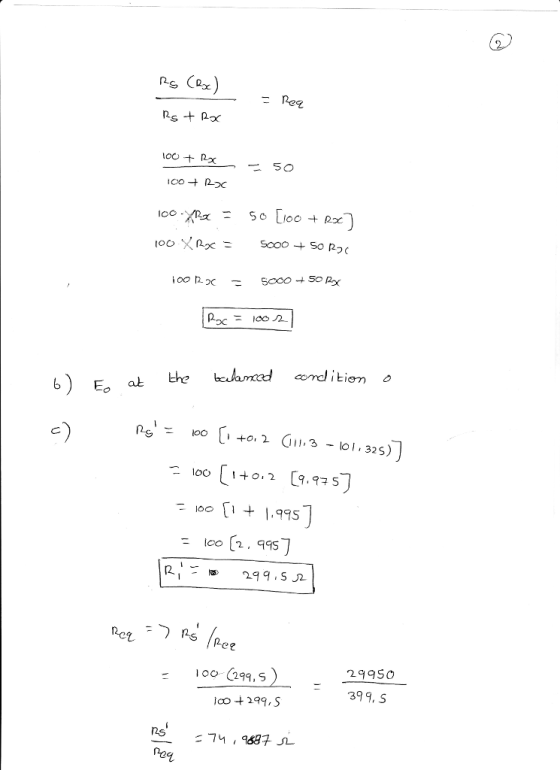

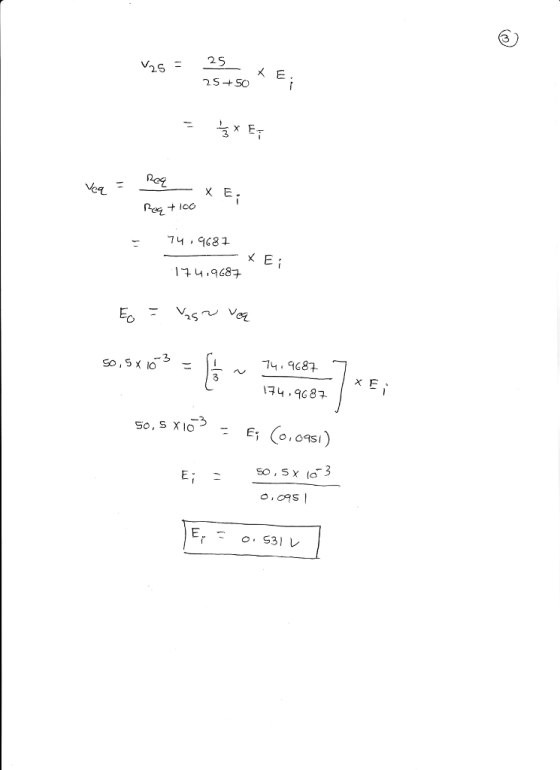

Ams: ) giiom data E = so.smv 111.3kPa o achieve Rs 2S 1oo Res 2 nog SO

0 0
