Homework Answers

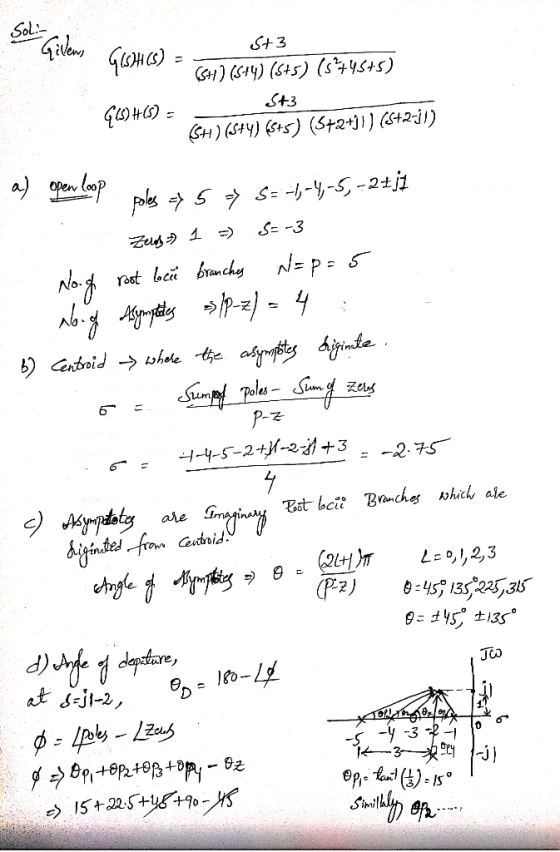

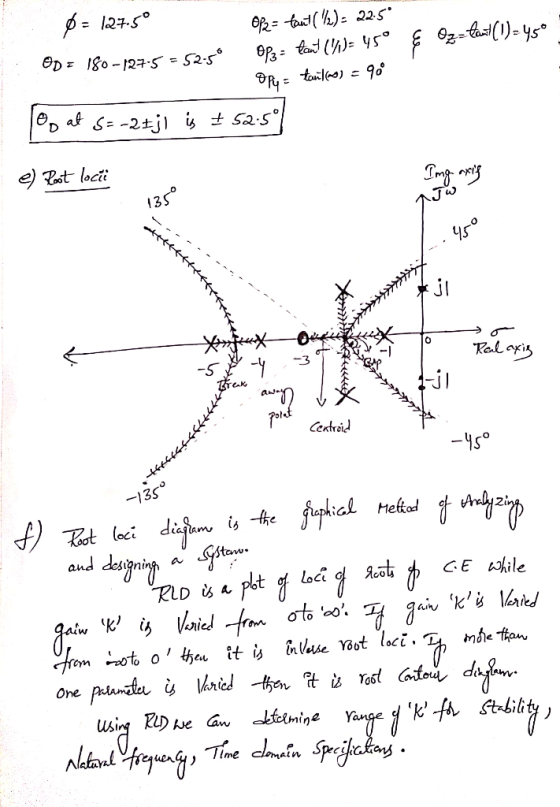

![Sol Gilles GUHC) = 0) 15:14) (5+5) (5:745+5) St3 (SH) (544) (575) (5745+5) St3 SH) (S+4) 65+5) (5+2+31) (S+2-31) G46+C) = CH]](http://img.homeworklib.com/questions/523d8d40-b177-11ea-9009-3b9fde88ce30.png?x-oss-process=image/resize,w_560)
Add Answer to:

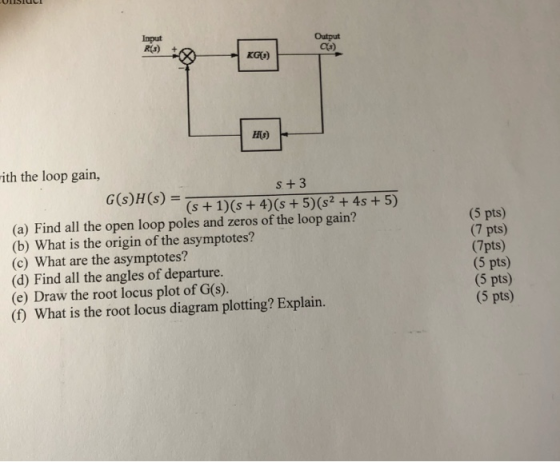

Input Rs) Output KG) Ho) ith the loop gain, +3 G(s)H(s) = (s+1)(s+4)(s+5)(s2 +4s+5) (5 pts)...
Root Locus: Consider the following system
Root Locus: Consider the following system (a) What are the poles of the open loop system (locations of the open loop poles)? What are zeros of the open loop system (locations of the zeros)? (b) What is the origin of the asymptotes? (c) What are the angles of asymptotes? (d) Find the break-away and break-in points. (e) Find the angles of departure for all the poles. (f) Draw the root locus plot of G(s). (g) For what values of K is the closed loop system stable?
Theroot-locus design method (d) Gos)H(s)2) 5.5 Complex poles and zeros. For the systems with an open-loop transfer function given below, sketch the root locus plot. Find the asymptotes and their angle...
Theroot-locus design method
(d) Gos)H(s)2) 5.5 Complex poles and zeros. For the systems with an open-loop transfer function given below, sketch the root locus plot. Find the asymptotes and their angles. the break-away or break-in points, the angle of arrival or departure for the complex poles and zeros, respectively, and the range of k for closed-loop stability 5 10ん k(s+21
(d) Gos)H(s)2) 5.5 Complex poles and zeros. For the systems with an open-loop transfer function given below, sketch the root...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain K as a variable s(s+4) (s2+4s+20)' Determine asymptotes, centroid,, breakaway point, angle of departure, and the gain at which root locus crosses jw -axis.
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain...
1. Given the open-loop transfer function G(s)h(s) find the asymptotes, (b) find the breakaway points, if...
1. Given the open-loop transfer function G(s)h(s) find the asymptotes, (b) find the breakaway points, if any, (c) find the range of K for stability and also the ju-axis crossing points, and (d) sketch the root locus. (20 points) K/Ks+1)(s+2)(s+3)(s+4)) where 0 s K < 00, (a) K/[s(s+3)(s2+2s+2)] where o s K < o, (a) locate the For the open-loop transfer function G(s)H(s) asymptotes, (b) find the breakaway points, if any, (c) find the jw-axis crossing points and the gain...
K(s+2) 2) Sketch the tot locus of closed loop system with openloop D (s)G(s) = s...
K(s+2) 2) Sketch the tot locus of closed loop system with openloop D (s)G(s) = s +2s+3. a. sketch real root locus b. find the asymptotes c. find the departure angles of complex poles d. sketch the root locus to the best of your ability e. Use matlab rlocus () to confirm your sketch (include a print out of your plot)
Problem 3: (30) Consider the following systen where K is a proportional gain (K>0). s-2 (a) Sketch the root locus us...
Problem 3: (30) Consider the following systen where K is a proportional gain (K>0). s-2 (a) Sketch the root locus using the below procedures. (1) find poles and zeros and locate on complex domain (2) find number of branches (3) find asymptotes including centroid and angles of asymptotes (4) intersection at imaginary axis (5) find the angle of departure (6) draw the root migration (b) Find the range of K for which the feedback system is asymptotically stable.
Problem 3:...
Q3. Consider the feedback system in Figure 3. In the case when 2L G(s) Figure 3:...
Q3. Consider the feedback system in Figure 3. In the case when 2L G(s) Figure 3: Block diagranm G(s) and when k is positive: (a) Sketch the root locus of the closed loop system (10) To assist in this (to indicate on root locus diagram) ) Compute the open loop poles and zeros (i) ealeulate the portion of the locus lying on the real axis; (iii) calculate the angles of asymptotes make with the real axis arad also the value...
Lectures 15-18: Root-locus method 5.1 Sketch the root locus for a unity feedback system with the ...
help on #5.2
L(s) is loop transfer function
1+L(s) = 0
lecture notes:
Lectures 15-18: Root-locus method 5.1 Sketch the root locus for a unity feedback system with the loop transfer function (8+5(+10) .2 +10+20 where K, T, and a are nonnegative parameters. For each case summarize your results in a table similar to the one provided below. Root locus parameters Open loop poles Open loop zeros Number of zeros at infinity Number of branches Number of asymptotes Center of...
Consider a unity feedback control system with open loop transfer function KG(G) s(s+2)(s + 6) 1....
Consider a unity feedback control system with open loop transfer function KG(G) s(s+2)(s + 6) 1. Write the characteristic equation of the system 2. Determine the open loop poles and open loop zeros of the system 3. Are there any zeros in infinity? If yes, how many? 4. Sketch the segments of root locus on real axis 5. Determine and sketch the center and the angles of the asymptotes
Problem (4): Sketch the root locus plot for a system, whose transfer function are given by 10 K (s2 +3 s+7) the complex poles. G(s) (s +3) i) Determine the joo -axis crossing, breakaway point and the...
Problem (4): Sketch the root locus plot for a system, whose transfer function are given by 10 K (s2 +3 s+7) the complex poles. G(s) (s +3) i) Determine the joo -axis crossing, breakaway point and the angle of departure from (i) Determine the value of the gain for which the closed loop system will have a pole at (-10)
Problem (4): Sketch the root locus plot for a system, whose transfer function are given by 10 K (s2 +3...
Theroot-locus design method
(d) Gos)H(s)2) 5.5 Complex poles and zeros. For the systems with an open-loop transfer function given below, sketch the root locus plot. Find the asymptotes and their angles. the break-away or break-in points, the angle of arrival or departure for the complex poles and zeros, respectively, and the range of k for closed-loop stability 5 10ん k(s+21
(d) Gos)H(s)2) 5.5 Complex poles and zeros. For the systems with an open-loop transfer function given below, sketch the root...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain K as a variable s(s+4) (s2+4s+20)' Determine asymptotes, centroid,, breakaway point, angle of departure, and the gain at which root locus crosses jw -axis.
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain...
1. Given the open-loop transfer function G(s)h(s) find the asymptotes, (b) find the breakaway points, if any, (c) find the range of K for stability and also the ju-axis crossing points, and (d) sketch the root locus. (20 points) K/Ks+1)(s+2)(s+3)(s+4)) where 0 s K < 00, (a) K/[s(s+3)(s2+2s+2)] where o s K < o, (a) locate the For the open-loop transfer function G(s)H(s) asymptotes, (b) find the breakaway points, if any, (c) find the jw-axis crossing points and the gain...
K(s+2) 2) Sketch the tot locus of closed loop system with openloop D (s)G(s) = s +2s+3. a. sketch real root locus b. find the asymptotes c. find the departure angles of complex poles d. sketch the root locus to the best of your ability e. Use matlab rlocus () to confirm your sketch (include a print out of your plot)
Problem 3: (30) Consider the following systen where K is a proportional gain (K>0). s-2 (a) Sketch the root locus using the below procedures. (1) find poles and zeros and locate on complex domain (2) find number of branches (3) find asymptotes including centroid and angles of asymptotes (4) intersection at imaginary axis (5) find the angle of departure (6) draw the root migration (b) Find the range of K for which the feedback system is asymptotically stable.
Problem 3:...
Q3. Consider the feedback system in Figure 3. In the case when 2L G(s) Figure 3: Block diagranm G(s) and when k is positive: (a) Sketch the root locus of the closed loop system (10) To assist in this (to indicate on root locus diagram) ) Compute the open loop poles and zeros (i) ealeulate the portion of the locus lying on the real axis; (iii) calculate the angles of asymptotes make with the real axis arad also the value...
help on #5.2
L(s) is loop transfer function
1+L(s) = 0
lecture notes:
Lectures 15-18: Root-locus method 5.1 Sketch the root locus for a unity feedback system with the loop transfer function (8+5(+10) .2 +10+20 where K, T, and a are nonnegative parameters. For each case summarize your results in a table similar to the one provided below. Root locus parameters Open loop poles Open loop zeros Number of zeros at infinity Number of branches Number of asymptotes Center of...
Consider a unity feedback control system with open loop transfer function KG(G) s(s+2)(s + 6) 1. Write the characteristic equation of the system 2. Determine the open loop poles and open loop zeros of the system 3. Are there any zeros in infinity? If yes, how many? 4. Sketch the segments of root locus on real axis 5. Determine and sketch the center and the angles of the asymptotes
Problem (4): Sketch the root locus plot for a system, whose transfer function are given by 10 K (s2 +3 s+7) the complex poles. G(s) (s +3) i) Determine the joo -axis crossing, breakaway point and the angle of departure from (i) Determine the value of the gain for which the closed loop system will have a pole at (-10)
Problem (4): Sketch the root locus plot for a system, whose transfer function are given by 10 K (s2 +3...
