Homework Answers

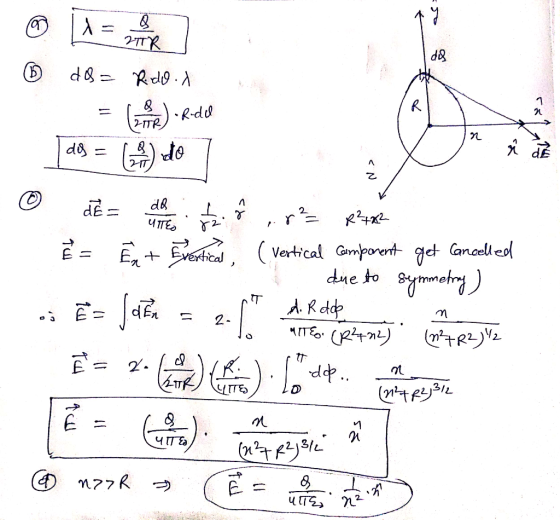

![1 = vo da= Rdo. I = (burma) Ridde - [ das = (h) do ] = Ex + Evertical, (vertical component get cancelled a due to symmetray)](http://img.homeworklib.com/questions/fa89e320-b18c-11ea-8d42-1d9ea16413ea.png?x-oss-process=image/resize,w_560)
Add Answer to:

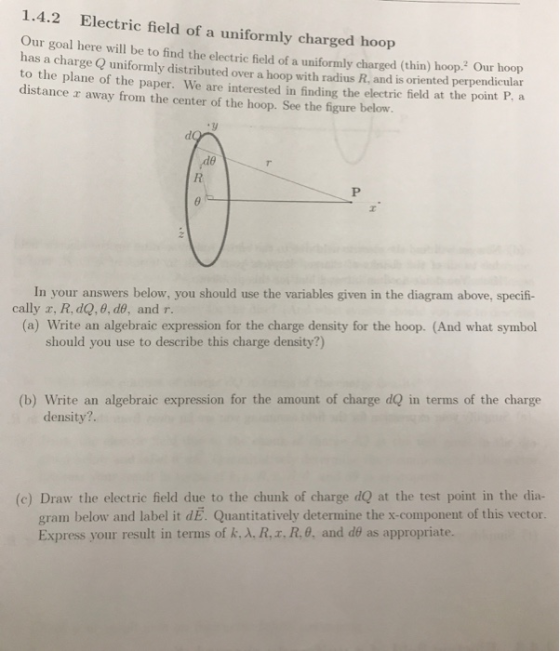

1.4.2 Electric field of a uniformly charged hoop Our goal here will be to find the...
A non-uniformly charged sphere of radius R has a total charge Q. The electric field inside...
A non-uniformly charged sphere of radius R has a total charge Q. The electric field inside this charge distribution is described by E=Emax(r4 /R4 ), where Emax is a known constant. Using the differential form of Gauss’s law, find volume charge density as a function of r. Express your result in terms of r, R and Emax.
Uniformly charged rod (q=62nC) of length 31cm is bend into the shape of a circular hoop...
Uniformly charged rod (q=62nC) of length 31cm is bend into the shape of a circular hoop of 5cm radius. It is done in such a way that there is no charge lost. As result the hoop has a 0.42cm gap. Find the Electric field at the center of this hoop. Please can you write as clearly as possible
The total electric field at a point on the axis of a uniformly charged disk, which...
The total electric field at a point on the axis of a uniformly charged disk, which has a radius R and a uniform charge density of σ, is given by the following expression, where x is the distance of the point from the disk. (R2 + x2)1/2 Consider a disk of radius R-3.18 cm having a uniformly distributed charge of +4.83 C. (a) Using the expression above, compute the electric field at a point on the axis and 3.12 mm...
P9. In class, we showed that the electric field on the axis of a uniformly charged...
P9. In class, we showed that the electric field on the axis of a uniformly charged disc ofradus R is where σ //I //(rR*) is the surface charge density. Use this result to find the electric field outside of a uniformly charged nonconducting sphere that has a total charge
The total electric field at a point on the axis of a uniformly charged disk, which...
The total electric field at a point on the axis of a uniformly charged disk, which has a radius R and a uniform charge density of σ, is given by the following expression, where x is the distance of the point from the disk. (R2 + x2)1/2 Consider a disk of radius R-3.27 cm having a uniformly distributed charge of +5.18 C. (a) Using the expression above, compute the electric field at a point on the axis and 3.30 mm...
1. Find the energy stored in a uniformly charged solid sphere of radius R with volume...
1. Find the energy stored in a uniformly charged solid sphere of radius R with volume charge density ρ. Do it two different ways: (a) Use the expression for the electrostatic energy in terms of the potential and the charge density, (b) Use the expression for the electrostatic energy in terms of the square of the electric field, 2 Jall space
2.1 In this problem we find the electric field on the axis of a cylindrical shell...
2.1 In this problem we find the electric field on the axis of a
cylindrical shell of radius R and height h when the cylinder is
uniformly charged with surface charge density . The axis of the
cylinder is set on the z-axis and the bottom of the cylinder is set
z = 0 and top z = h. We designate the point P where we measure the
electric field to be z = z0. (See figure.) You will use...
5) Uniformly charged semicircle with radius R and charge Q Find the electric field at point...
5) Uniformly charged semicircle with radius R and charge Q Find the electric field at point ound cna l.
this is a transcript of the question A nonconducting sphere of radius r0 is uniformly charged...
this is a transcript of the question A nonconducting sphere of radius r0 is uniformly charged with volume charge density ρE. It is surrounded by a concentric metal (conducting) spherical shell of inner radius r1 and outer radius r2, which carries a net charge+Q. Determine the resulting electric field in the regions r > r2. Express your answer in terms of some or all of the variables ρE, Q, r, r0, r1, r2, and appropriate constants. E(r>r2) =
Need help with parts A, B, and D A uniformly charged ball of radius a and...
Need help with parts A, B, and D
A uniformly charged ball of radius a and charge- Part A is at the center of a hollow metal shell with inner radius b and outer radius c. The hollow sphere has net charge +20 Determine the electric field strength in the region r < a. Give your answer as a multiple of Q/eo Express your answer in terms of some or all of the variables a, c, r, and the constant...
The total electric field at a point on the axis of a uniformly charged disk, which has a radius R and a uniform charge density of σ, is given by the following expression, where x is the distance of the point from the disk. (R2 + x2)1/2 Consider a disk of radius R-3.18 cm having a uniformly distributed charge of +4.83 C. (a) Using the expression above, compute the electric field at a point on the axis and 3.12 mm...
P9. In class, we showed that the electric field on the axis of a uniformly charged disc ofradus R is where σ //I //(rR*) is the surface charge density. Use this result to find the electric field outside of a uniformly charged nonconducting sphere that has a total charge
The total electric field at a point on the axis of a uniformly charged disk, which has a radius R and a uniform charge density of σ, is given by the following expression, where x is the distance of the point from the disk. (R2 + x2)1/2 Consider a disk of radius R-3.27 cm having a uniformly distributed charge of +5.18 C. (a) Using the expression above, compute the electric field at a point on the axis and 3.30 mm...
1. Find the energy stored in a uniformly charged solid sphere of radius R with volume charge density ρ. Do it two different ways: (a) Use the expression for the electrostatic energy in terms of the potential and the charge density, (b) Use the expression for the electrostatic energy in terms of the square of the electric field, 2 Jall space
2.1 In this problem we find the electric field on the axis of a
cylindrical shell of radius R and height h when the cylinder is
uniformly charged with surface charge density . The axis of the
cylinder is set on the z-axis and the bottom of the cylinder is set
z = 0 and top z = h. We designate the point P where we measure the
electric field to be z = z0. (See figure.) You will use...
5) Uniformly charged semicircle with radius R and charge Q Find the electric field at point ound cna l.
Need help with parts A, B, and D
A uniformly charged ball of radius a and charge- Part A is at the center of a hollow metal shell with inner radius b and outer radius c. The hollow sphere has net charge +20 Determine the electric field strength in the region r < a. Give your answer as a multiple of Q/eo Express your answer in terms of some or all of the variables a, c, r, and the constant...
