Find the currents 1, I2and is in the three branches of the circuit in the figure...

Question

Question

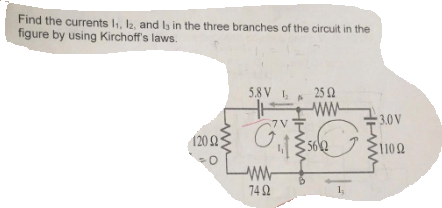

Find the currents 1, I2and is in the three branches of the circuit in the figure by using Kirchoffs laws. 5.8V 1 250 chem 73

science physics

Answer 1

Answer #1

using kVL in left loop

(120 + 74) i1 + 56 (i1 + i2) = 5.8 + 7

250 i1 + 56 i2 = 12.8... (i)

using kVL in right loop

(135 + 56) i2 + 56 i1 = - 3

56 i1 + 191 i2 = - 3...(ii)

solving (i) and (ii) (and considering the naming of current from the fig)

I1 = 0.02526 A

I2 = 0.05856 A

I3 = - 0.0329 A

======
