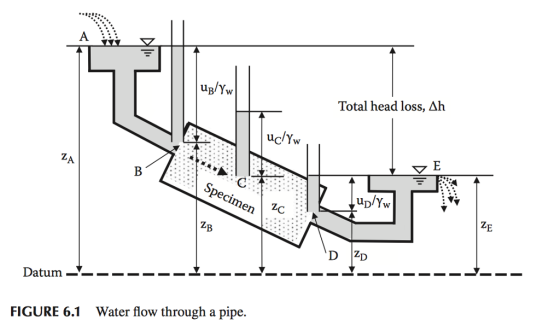

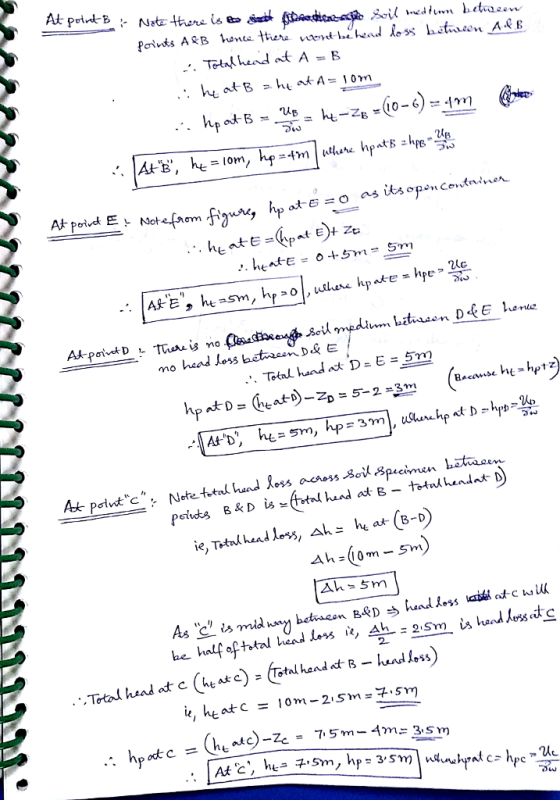

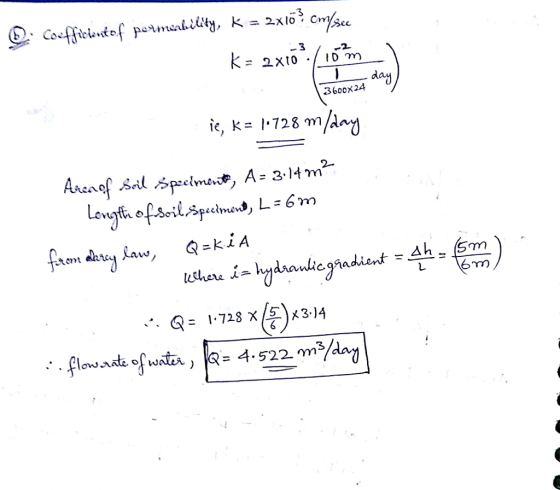

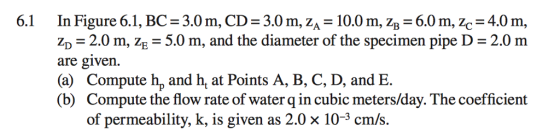

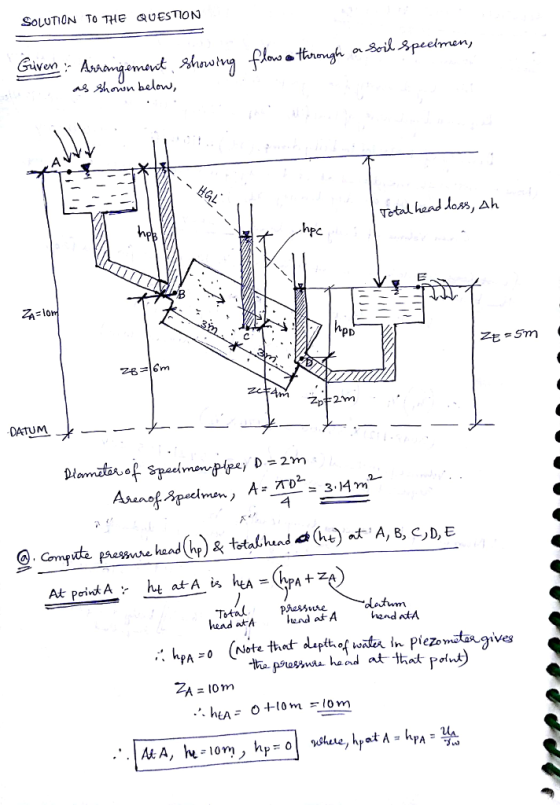

uB/Yw Total head loss, Ah ZA en Zc; 1B Water flow through a pipe. FIGURE 6.1
Find Pipe Velocity, volumetric flow rate, head delivered by pump and convert to Kj/s. Head loss...
Find Pipe Velocity, volumetric
flow rate, head delivered by pump and convert to Kj/s. Head loss is
50m or 27V^2/2g
Z2=100m
dit View Favorites Tools Help ¡Southwest Airlines My Ac., ?? Web Slice Gallery ? Zi-70 ml D-0.25 m Pump Click to see additional instructions In the figure, water is pumped from a lower reservoir to a higher reservoir through a pipe at a steady rate of flow. The pipe head loss is g Determine the pipe velocity, in units...
The water moves through a pipe in an ideal flow, as shown in the figure. At...
The water moves through a pipe in an ideal flow, as shown in the figure. At the lowest point of the pipe the pressure is P1 = 2.36 x 10^4 Pa and the diameter of the pipe is 3.00 cm. At the other point of the pipe, which is at a height of 0.480 m, the pressure is P2 = 1.25 x 10^4 Pa and the diameter of the pipe is 1.00 cm. Find the speed of water flow (a)...
Water at 15-Celsius flowing through 25 meters of 100mm- diameter galvanized iron pipe, causes a head...
Water at 15-Celsius flowing through 25 meters of 100mm- diameter galvanized iron pipe, causes a head loss (due to pipe friction) of 75mm. Find the flow rate
Water Flows from reservoir A to a straight pipe through a protrunding pipe entrance, and then...
Water Flows from reservoir A to a straight pipe through a protrunding pipe entrance, and then enters reservoir B. The velocity head of the pipe flow is 1.6ft. Calculate Minor loss from A to B
Water flow in a pipe and then exit through a bended nozzle as shown in Figure...
Water flow in a pipe and then exit through a bended nozzle as shown in Figure 3. The nozzle is connected to the main pipe using a flanged joint at (1). The diameter of the pipe is D1 10 cm and is constant, whilst the diameter at the outlet section of the nozzle (2) is D2 3 em. The flowrate of the water is Q = 15 liter/s and the water pressure at the flange is Pi 230 kPa. By...
At the inlet of a 1000 ft long, 6 in pipe, the total head is 80...
At the inlet of a 1000 ft long, 6 in pipe, the total head is 80 ft above a reference datum. The pipe carries a flow of 0.6 cfs. The pressure at the outlet is 18 psi and the elevation at the outlet is 12 ft above the datum. Determine the loss of energy (ft2 /s2 ) and head (ft) through the pipe.
A flow nozzle equipped with a differential pressure gage is used to measure the flow rate of water at 10°C (p 9997 kg/m3 and p 1.307 x 10-3 kg/m s) through a 3-cm-diameter horizontal pipe. The nozzle...
A flow nozzle equipped with a differential pressure gage is used to measure the flow rate of water at 10°C (p 9997 kg/m3 and p 1.307 x 10-3 kg/m s) through a 3-cm-diameter horizontal pipe. The nozzle exit diameter is 1.5 cm, and the measured pressure drop is 3.3 kPa. Determine the volume flow rate of water, the average velocity through the pipe, and the head loss 1.5 cm Differential pressure gage -3 m3(s m/s The volume flow rate of...
Determine the head loss and velocity of flow in a water supply main of 15.0 cm...
Determine the head loss and velocity of flow in a water supply main of 15.0 cm diameter pipe with a discharge of 22 l/s using the nomograph chart and verify the result using appropriate equation. Assuming f = 0.0155.
Example of Pipe Sizing The figure shows a closed piping system to supply chilled water to two hea...
Example of Pipe Sizing The figure shows a closed piping system to supply chilled water to two heat exchangers. Size the pipe for this system, assuming schedule-40 steel pipe is used with threaded (screwed) fitting. Determine the pump flow rate and head requirements. Distances are as shown in feet. Head losses through the heat exchangers and chiller are shown as provided by the manufacturers. Q(gpm) Head Loss (ft) 70 Unit Chiller Heat Exchanger (a) 30 Heat Exchanger (b) 40 12...
3. The water flow in the concrete pipe looping system shown in the figure below is...
3. The water flow in the concrete pipe looping system shown in the figure below is 15 ft/s. Compute the head loss from point A to point G. Temp of water -20° C. 1500 ft, 18-in diameter B A- 2500 ft, 30-in diameter Q= 15 ft/sec 2000 ft, 15-in diameter Q = 15 ft/sec - G 1000 ft, 12-in diameter C 2000 ft, 15-in diameter
Find Pipe Velocity, volumetric
flow rate, head delivered by pump and convert to Kj/s. Head loss is
50m or 27V^2/2g
Z2=100m
dit View Favorites Tools Help ¡Southwest Airlines My Ac., ?? Web Slice Gallery ? Zi-70 ml D-0.25 m Pump Click to see additional instructions In the figure, water is pumped from a lower reservoir to a higher reservoir through a pipe at a steady rate of flow. The pipe head loss is g Determine the pipe velocity, in units...
Water at 15-Celsius flowing through 25 meters of 100mm- diameter galvanized iron pipe, causes a head loss (due to pipe friction) of 75mm. Find the flow rate
Water flow in a pipe and then exit through a bended nozzle as shown in Figure 3. The nozzle is connected to the main pipe using a flanged joint at (1). The diameter of the pipe is D1 10 cm and is constant, whilst the diameter at the outlet section of the nozzle (2) is D2 3 em. The flowrate of the water is Q = 15 liter/s and the water pressure at the flange is Pi 230 kPa. By...
A flow nozzle equipped with a differential pressure gage is used to measure the flow rate of water at 10°C (p 9997 kg/m3 and p 1.307 x 10-3 kg/m s) through a 3-cm-diameter horizontal pipe. The nozzle exit diameter is 1.5 cm, and the measured pressure drop is 3.3 kPa. Determine the volume flow rate of water, the average velocity through the pipe, and the head loss 1.5 cm Differential pressure gage -3 m3(s m/s The volume flow rate of...
Example of Pipe Sizing The figure shows a closed piping system to supply chilled water to two heat exchangers. Size the pipe for this system, assuming schedule-40 steel pipe is used with threaded (screwed) fitting. Determine the pump flow rate and head requirements. Distances are as shown in feet. Head losses through the heat exchangers and chiller are shown as provided by the manufacturers. Q(gpm) Head Loss (ft) 70 Unit Chiller Heat Exchanger (a) 30 Heat Exchanger (b) 40 12...
3. The water flow in the concrete pipe looping system shown in the figure below is 15 ft/s. Compute the head loss from point A to point G. Temp of water -20° C. 1500 ft, 18-in diameter B A- 2500 ft, 30-in diameter Q= 15 ft/sec 2000 ft, 15-in diameter Q = 15 ft/sec - G 1000 ft, 12-in diameter C 2000 ft, 15-in diameter
