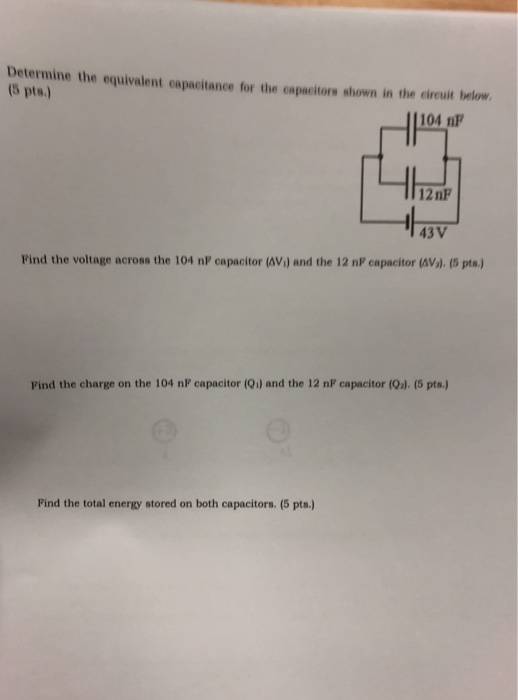

Determine the equivalent capacitance for the capacitors shown in the circuit below (5 pts.) 104 nF...

Question

Question

science physics

Answer 1

Answer #1

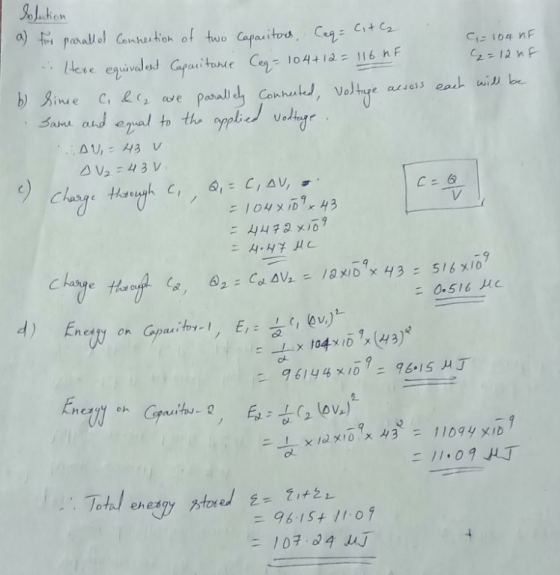

Jkion Cに104 nF Sans and enal to the pie 104メ1D9 x 43 : 시470x109 ニ96-15+ 11.09

Answer 2

Similar Homework Help Questions

3. 15 MF Find the equivalent capacitance of the circuit shown in the diagram. If an...

3. 15 MF Find the equivalent capacitance of the circuit shown in the diagram. If an 18 V battery is connected to terminals A and B, find the charge on each capacitor, the voltage across the 8.2 pF and 22 F capacitors, and the total energy stored in the circuit A B 8.2uF 22uF
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values...

Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values G = 22.5 UF, C = 45.5 pF, C; = 50.5 pF, and Cd = 40.5 pF, and the power supply is at voltage V = 23.5 V. What is the equivalent capacitance of the circuit? equivalent capacitance: What is the charge on capacitor C2? charge on C: What is the potential difference across capacitor C;? potential difference across C3: What is the potential...
5.6 nF, C,-8.3 nF, C,-2.1 nF) to a 9.0 volt battery. a) Determine the equivalent capacitance....

5.6 nF, C,-8.3 nF, C,-2.1 nF) to a 9.0 volt battery. a) Determine the equivalent capacitance. b) What is the voltage across ctors are connected in parallel (C, each capacitor? c) What is the charge stored in each capacitor?

In the circuit diagram below, C1 = 12 nF, C2 = 11 nF, Cz = 14...

In the circuit diagram below, C1 = 12 nF, C2 = 11 nF, Cz = 14 nF, C4 = 22 nF, and the voltage of the battery is AV = 17 V. Find the equivalent capacitance of the circuit, the total charge stored in the circuit, the charge stored on each capacitor, and the voltage across each capacitor. C Hoy vtvº Ceq = 5.74* nF QTotal = 0.612 * nC *nC *nC 1*nC * nC AV1 = DV WN -...
Problem 5: (24 points) Consider the circuit shown below. Assume C1 = 30 nF, C2 =...

Problem 5: (24 points) Consider the circuit shown below. Assume C1 = 30 nF, C2 = C3 = C4 = 10 nF, and V = e = 12 V. a) (12 points) Find the equivalent capacitance of the circuit. c, c, AHA v1 C3 = b) (12 points) Find the charge and voltage across capacitors C1 and C2. Hint. Draw simplified circuits.
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values...

Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C1 = 27.5 μF, C2 = 45.5 μF, C3 = 50.5 μF, C4 = 40.5 μF, and the power supply is at voltage V = 16.5 V. What is the equivalent capacitance of the circuit? Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C1-27.5 μF, C2 = 45.5 μF, C3 = 50.5 F, C.-40.5 and the...

20 of 22 > Four capacitors are arranged in the circuit shown in the figure. The...

20 of 22 > Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C 26.5 uF, C2 45.5 uF, C3 50.5 pF, and C4 40.5 uF, and the power supply is at voltage V 31.5 V C What is the equivalent capacitance of the circuit? C equivalent capacitance: 8.3 V What is the charge capacitor C2? on C. charge C2: 5.75 C on What is the potential difference across capacitor C3? about us...
Consider the circuit diagram consisting of capacitors and a battery picture on the board. Find the...

Consider the circuit diagram consisting of capacitors and a battery picture on the board. Find the equivalent capacitance, the charge on each capacitor and the voltage across each capacitor. Also find the total energy stored by the capacitor.
Given the arrangement of capacitors shown below, complete the following tasks. Let C1=4.5 muF,C2=5.8 muF,C3=7.1 muF,...

Given the arrangement of capacitors shown below, complete the following tasks. Let C1=4.5 muF,C2=5.8 muF,C3=7.1 muF, and C4=2.4 muF. Find the equivalent capacitance of this circuit (this will require 3 re-drawings). If a voltage V = 15 V is applied, determine the charge stored on every capacitor (Q1, Q2, Q3, Q4). start by finding Q2 and Qtot. Determine the energy stored on C2 and also the total energy stored on all capacitors. How much energy would be stored in total...

A circuit is constructed with five capacitors and a battery as shown. The values for the...

A circuit is constructed with five capacitors and a battery as shown. The values for the capacitors are: C1 = C5 = 4.2 μF, C2 = 1 μF, C3 = 5.8 μF, and C4 = 4.4 μF. The battery voltage is V = 12 V. 1) What is Cab, the equivalent capacitance between points a and b?μF 2) What is Cac, the equivalent capacitance between points a and c? 3) What is Q5, the charge on capacitor C5?μC 4) What...
