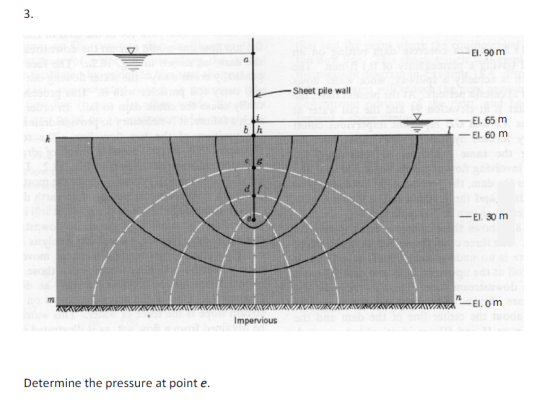

Determine the pressure at point e.

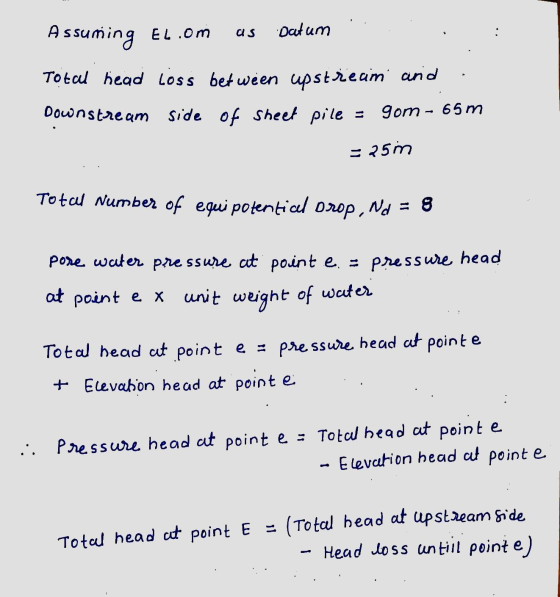

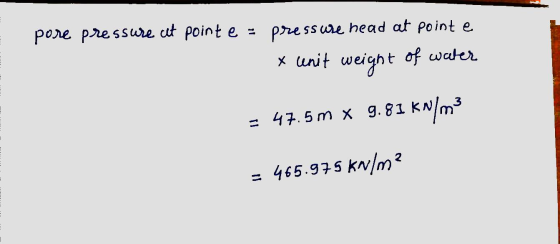

Homework Answers

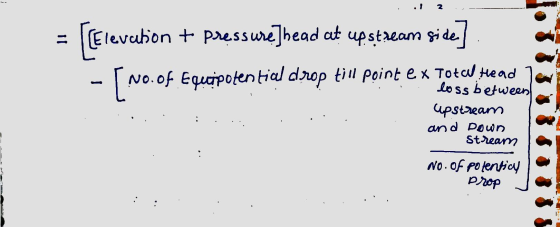

![= [[Elevation + pressure]head at upstream side] 1 point e x Totw Head 1 loss between upstream and Down Stream No. of polentic](http://img.homeworklib.com/questions/e75b5ad0-b201-11ea-a007-7504f43da3b2.png?x-oss-process=image/resize,w_560)

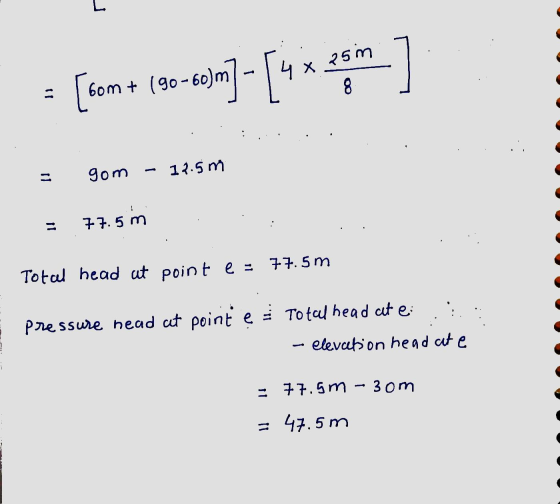

![= [com+ (90-6m)]- [4 x en ] 90 m - 14.5 1 = 77.5 m : . : .. 77. 5m Total head at point e = 1 Pressure head at point e Total h](http://img.homeworklib.com/questions/e7f35ad0-b201-11ea-9969-13452f0ab575.png?x-oss-process=image/resize,w_560)
