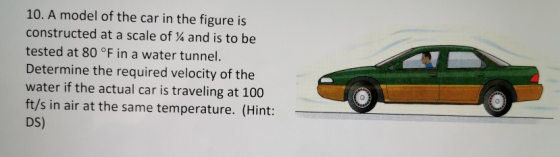

10. A model of the car in the figure is constructed at a scale of %...
A model of a submarine, 1:15 scale is to be tested at 180ft/s in a wind...
A model of a submarine, 1:15 scale is to be tested at 180ft/s in
a wind tunnel with standard sea-level air, while the prototype will
be operated in sea water.
A model of a submarine, 1:15 scale, is to be tested at 180 ft/s in a wind tunnel with standard sea-level air, while the prototype will be operated in seawater. Determine the speed of the prototype to ensure Reynolds number similarity. Hint: The Reynolds number of the model and prototype...
A one-third scale model of a car is to be tested in a wind tunnel. The...
A one-third scale model of a car is to be tested in a wind tunnel. The conditions of the actual car are v = 75 km/h and I = 0°C and the air temperature in the wind tunnel is 20°C. In order to achieve similarity between the model and the prototype, the wind tunnel velocity should be The properties of air at 1 atm and 0°C: mass density (p) = 1.292 kg/m3, kinematic viscosity (V) = 1.338x10-5 m2/5 The properties...
An airship is to operate at 23 m/s in air at standard conditions. A model is...
An airship is to operate at 23 m/s in air at standard conditions. A model is constructed to 1/24-scale and tested in a wind tunnel at the same air temperature to determine drag. (a) What criterion should be considered to obtain dynamic similarity? (b) If the model is tested at 77 m/s, what pressure should be used in the wind tunnel? (c) If the model drag force is 258 N, what will be the drag of the prototype?
[10 points] A model of a submarine, 1:15 scale, is to be tested at 180 ft/s...
[10 points] A model of a submarine, 1:15 scale, is to be tested at 180 ft/s in a wind tunnel with standard sea-level air, while the prototype will be operated in seawater. Determine the speed of the prototype to ensure dynamic similarity 4. Properties of air: p 2.38x103 slugs/ft3, 3.74 x 107 Ib-s/ ft2 Properties of seawater: 1.99 slugs/ft3JL-2.51 x 10-5 lbs/ ft.
Fox and McDonalds Introduction to Fluid Mechanics Tenth Edition

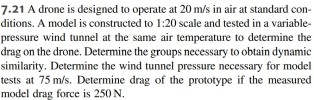

A drone is designed to operate at 20 m/s in air at standard conditions. A model is constructed to 1:20 scale and tested in a variablepressure wind tunnel at the same air temperature to determine the
drag on the drone. Determine the groups necessary to obtain dynamic
similarity. Determine the wind tunnel pressure necessary for model
tests at 75 m/s. Determine drag of the prototype if the measured
model drag force is 250 N
Automotive engineers plan to build a one-third scale model of a sports car and test it...
Automotive engineers plan to build a one-third scale model of a sports car and test it in a wind tunnel. The temperature of the wind tunnel is at 25°C. The drag force is measured with a drag balance and the moving belt is used to simulate the moving ground. If the sports car runs at 25°C, Wind tunnel test section L Fom Moving belt Drag balance Figure 4 Question 4 a) Propose the speed of the car that can be...
3.5 2.5 1.5 0.5 8 10 Model velocity, ft/s Problem Statement: A sphere moving in a...
3.5 2.5 1.5 0.5 8 10 Model velocity, ft/s Problem Statement: A sphere moving in a fluid experiences a drag force that is known to be a function of the sphere diameter, velocity, density, and viscosity. You performed some lab tests on a 3 inch diameter sphere using a water tunnel. The figure below indicates the results of your model test. For the tests the viscosity of the water was 2.34 10sifi2 and the water density was 1.94slugslfi3. Based on...
A 1:4 scale model of a water pumping station pumping system is to be tested to...
A 1:4 scale model of a water pumping station pumping system is to be tested to determine overall head losses 5. Air at 30 °C, 1 atm, is available. For a prototype velocity of 600 mm/s in a 3-m-diameter section with water at 20°C, determine the air velocity and quantity needed. How may losses determined from the model be converted into prototype losses?
HELP ME URGENT! Automotive engineers plan to build a one-third scale model of a sports car...
HELP ME URGENT! Automotive engineers plan to build a one-third scale model of a sports car and test it in a wind tunnel. The temperature of the wind tunnel is at 25°C. The drag force is measured with a drag balance and the moving belt is used to simulate the moving ground. If the sports car runs at 25°C, Wind tunnel test section Vm Pmi Hm Lm Fo.m Moving belt Drag balance Figure 4 Question 4 Propose the speed of...
opJD,d,p,,).determine the appropriate pi terms The drag on an airplane cruising at 240 mph in air...
opJD,d,p,,).determine the appropriate pi terms The drag on an airplane cruising at 240 mph in air at 1 atm and 300 K is to be determined from tests on a 1:10 scale model in a pressurized wind tunnel. Let the geometry of the prototype be represented by I.The fluid viscosity is u. The prototype drag is D. 4. To have the fluid compressibility between the model and the prototype, what must the velocity of the wind tunnel air be if...
A model of a submarine, 1:15 scale is to be tested at 180ft/s in
a wind tunnel with standard sea-level air, while the prototype will
be operated in sea water.
A model of a submarine, 1:15 scale, is to be tested at 180 ft/s in a wind tunnel with standard sea-level air, while the prototype will be operated in seawater. Determine the speed of the prototype to ensure Reynolds number similarity. Hint: The Reynolds number of the model and prototype...
A one-third scale model of a car is to be tested in a wind tunnel. The conditions of the actual car are v = 75 km/h and I = 0°C and the air temperature in the wind tunnel is 20°C. In order to achieve similarity between the model and the prototype, the wind tunnel velocity should be The properties of air at 1 atm and 0°C: mass density (p) = 1.292 kg/m3, kinematic viscosity (V) = 1.338x10-5 m2/5 The properties...
[10 points] A model of a submarine, 1:15 scale, is to be tested at 180 ft/s in a wind tunnel with standard sea-level air, while the prototype will be operated in seawater. Determine the speed of the prototype to ensure dynamic similarity 4. Properties of air: p 2.38x103 slugs/ft3, 3.74 x 107 Ib-s/ ft2 Properties of seawater: 1.99 slugs/ft3JL-2.51 x 10-5 lbs/ ft.
Automotive engineers plan to build a one-third scale model of a sports car and test it in a wind tunnel. The temperature of the wind tunnel is at 25°C. The drag force is measured with a drag balance and the moving belt is used to simulate the moving ground. If the sports car runs at 25°C, Wind tunnel test section L Fom Moving belt Drag balance Figure 4 Question 4 a) Propose the speed of the car that can be...
3.5 2.5 1.5 0.5 8 10 Model velocity, ft/s Problem Statement: A sphere moving in a fluid experiences a drag force that is known to be a function of the sphere diameter, velocity, density, and viscosity. You performed some lab tests on a 3 inch diameter sphere using a water tunnel. The figure below indicates the results of your model test. For the tests the viscosity of the water was 2.34 10sifi2 and the water density was 1.94slugslfi3. Based on...
A 1:4 scale model of a water pumping station pumping system is to be tested to determine overall head losses 5. Air at 30 °C, 1 atm, is available. For a prototype velocity of 600 mm/s in a 3-m-diameter section with water at 20°C, determine the air velocity and quantity needed. How may losses determined from the model be converted into prototype losses?
HELP ME URGENT! Automotive engineers plan to build a one-third scale model of a sports car and test it in a wind tunnel. The temperature of the wind tunnel is at 25°C. The drag force is measured with a drag balance and the moving belt is used to simulate the moving ground. If the sports car runs at 25°C, Wind tunnel test section Vm Pmi Hm Lm Fo.m Moving belt Drag balance Figure 4 Question 4 Propose the speed of...
opJD,d,p,,).determine the appropriate pi terms The drag on an airplane cruising at 240 mph in air at 1 atm and 300 K is to be determined from tests on a 1:10 scale model in a pressurized wind tunnel. Let the geometry of the prototype be represented by I.The fluid viscosity is u. The prototype drag is D. 4. To have the fluid compressibility between the model and the prototype, what must the velocity of the wind tunnel air be if...
