rectangular loop with sides of length a= 1.10 cm and b= 2.80 cm is placed near...
rectangular loop with sides of
length a= 1.10 cm and b= 2.80 cm is placed near a wire that carries
a current that varies as a function of time: it=2.01 +
1.22t2 where the current is in Amperes and the time is
in seconds. The distance from the straight wire to the closest side
of the loop is d= 0.270 cm.
What is the magnetic flux through the loop at time t= 1.40 seconds? (Define positive flux into the page.)
What is the induced e.m.f. in the loop at time t= 1.40 seconds?
(Note that positive emf is clockwise.)

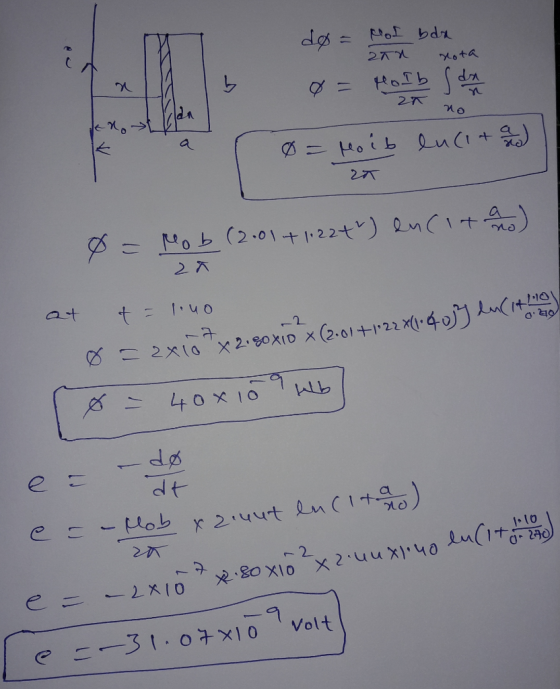

Homework Answers
