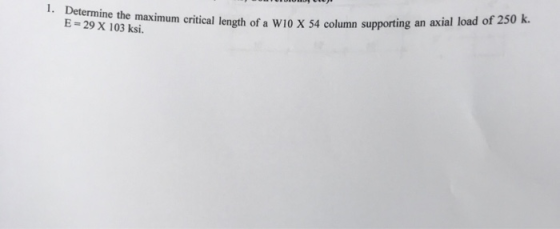

B- 2 ne the maximum eritical length of a W/10 X 54 column supporting an axial...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

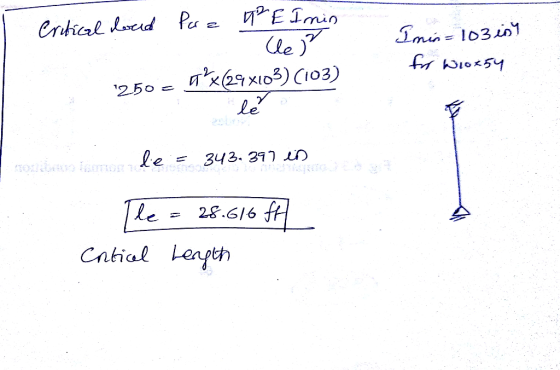

le) le le = 28.616 fn Cnial Lenpth

Answer 2

Similar Homework Help Questions

9.3 Determine the maximum critical length of a W10 x 54 column supporting an axial load...

9.3 Determine the maximum critical length of a W10 x 54 column supporting an axial load of 250 k. E 29 X 103 ksi.
Select the most economic A992 (Fy=50 ksi) W shape to use as a column for the...

Select the most economic A992 (Fy=50 ksi) W shape to use as a column for the following conditions. Axial dead load of 75 kips, axial live load of 75 kips, length of the column is 12 ft, with no intermediate bracing, pinned top and bottom 2, 3. Use table 10.6 to answer the following questions about A36 double angle compression struts, pinned at both ends. A double-angle compression member 8 ft long is composed of two A36 4x3x5/16 steel angles....
Problem 6 A 24-ft long steel column has an S 8 x 23 section, with the...

Problem 6 A 24-ft long steel column has an S 8 x 23 section, with the cross-sectional properties: 1. = 64.7 in", I, = 4.27 in", and A = 6.76 in”, that is built-in at both ends. The midpoint of the column is braced by two cables that prevent displacement in the c direction. For a factor of safety against buckling of X = 2.5, determine the largest compressive axial load, Pmax. Use the material properties E = 29. 103...

The 12 × 50 is made of A992 steel and is used as a column that...

The 12 × 50 is made of A992 steel and is used as a column that has a length of 23 ft. Its ends are assumed pin supported and it is subjected to an axial load of 142 kip. Iy 56.3 in and E 29(103) ksi. Part A Determine the factor of safety with respect to buckling Express your answer to three significant figures. vec
2 (18 marks) A column is subjected to an axial concentric imposed load. The column is...

2 (18 marks) A column is subjected to an axial concentric imposed load. The column is made of 305 x 305 x 198, S275 with a length of 7 m. Assume the column is pinned at top and bottom. Determine the allowable axial loading.
A column ABC is supported at ends A and C and compressed by an axial load...

A column ABC is supported at ends A and C and compressed by an axial load P (figure a). The column is fix-supported at the ends (support A and C). Lateral support is provided at point B but only in the plane ZX. The column is constructed of two channel sections (C6 * 10.5) (see figure). (Given: A=6.16 in?, \x=30.2 in4, ly=16.14 in 4, E = 29,500 ksi and oy = 50 ksi) 1. Determine the largest vertical force P...

A column in a 2-story building supports loads from the second floor and the roof. Loads...

A column in a 2-story building supports loads from the second floor and the roof. Loads were calculated and are provided below: Roof Dead = 18,000 pounds Roof Live = 14,400 pounds Wind (down) = 36,000 pounds Wind (up) = 60,000 pounds Floor Dead - 32,000 pounds Floor Live - 39,000 pounds. Using applicable ASD load combinations (refer to Ch. 2 of your textbook), determine the following: a. The maximum axial compression load in pounds for the column supporting the...
PROBLEM #1 (CET 4450 and EVE 4450) Find: A 4 x 6 carries an axial compressive...

PROBLEM #1 (CET 4450 and EVE 4450) Find: A 4 x 6 carries an axial compressive force caused by dead, live, and roof live loads. Lumber is No. 1 DF-L. CM = 1.0, C=1.0, and C = 1.0. The maximum column load for each LRFD load combination if the unbraced length of the member is a.) 3 ft b.) 6 ft c.) 9 ft d.)12 ft For a, b, c, and d please find le=Kelu : leldy, assuming Ke-1 Fon*...
11. (10 points) Check to determine if a W14x159 used as a column can support an...

11. (10 points) Check to determine if a W14x159 used as a column can support an axial dead load of 250k and an axial live load of 1000k if the length of the column is 14 feet and the value of G for Joint A has been determined to be 0.8. Use the LRFD Design Method and assume that the columns are bending about their y axis as shown. (Hint: The answer is in the Manual) W14x159 Fixed Base at...

A column ABC is supported at ends A and Cand compressed by an axial load P...

A column ABC is supported at ends A and Cand compressed by an axial load P (figure a). The column is pin-supported at the ends (support A and C). Lateral support is provided at point B but only in the plane ZX. The column is constructed of two channel sections (C6 x 8.2) back to back (see figure). (Given: A=4.78 in?, Ix=26.2 in4, ly=2.627 in4, E = 29,500 ksi and Oy = 36 ksi) 1. Determine the largest vertical force...
