Homework Answers
Add Answer to:

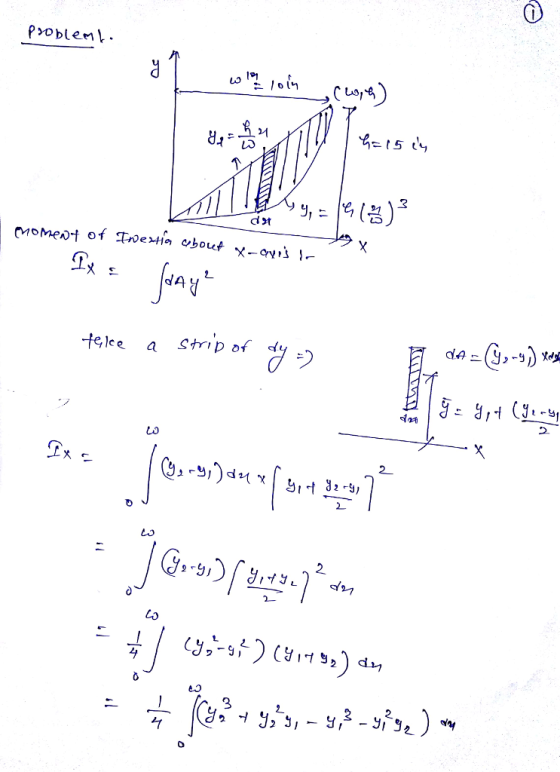

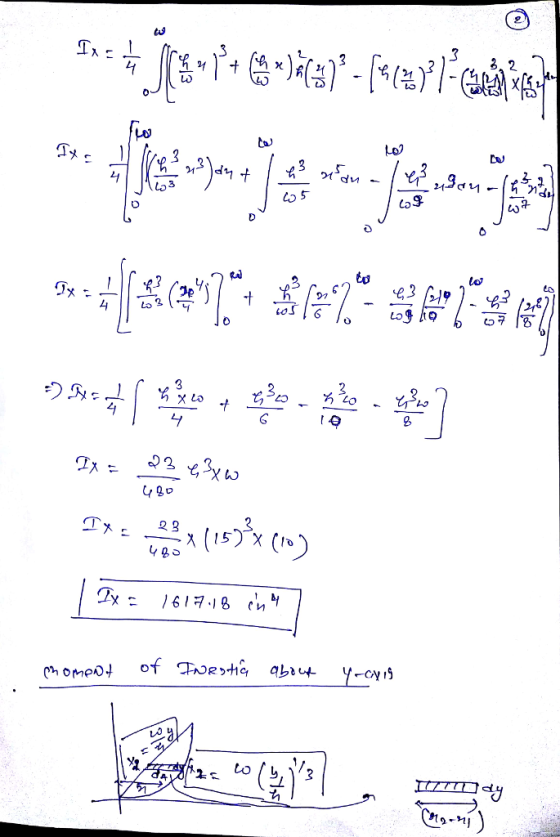

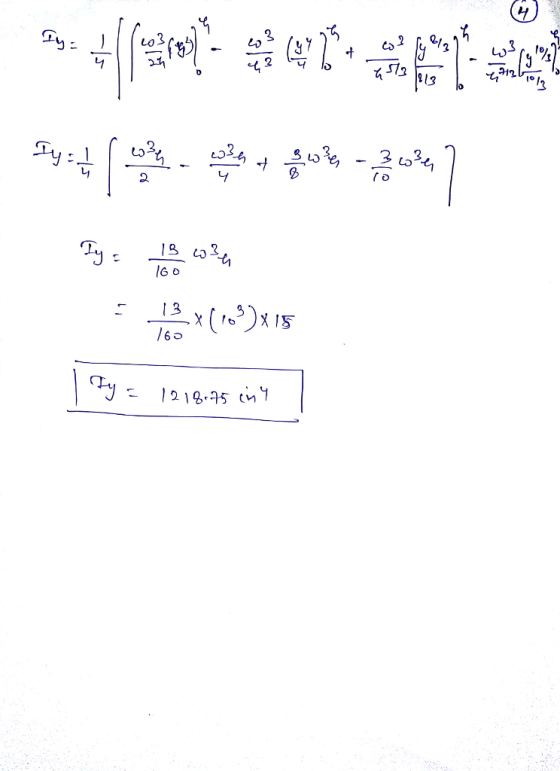

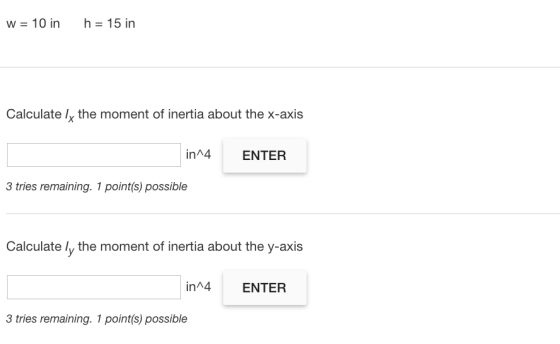

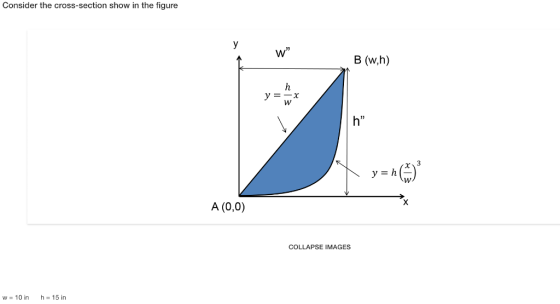

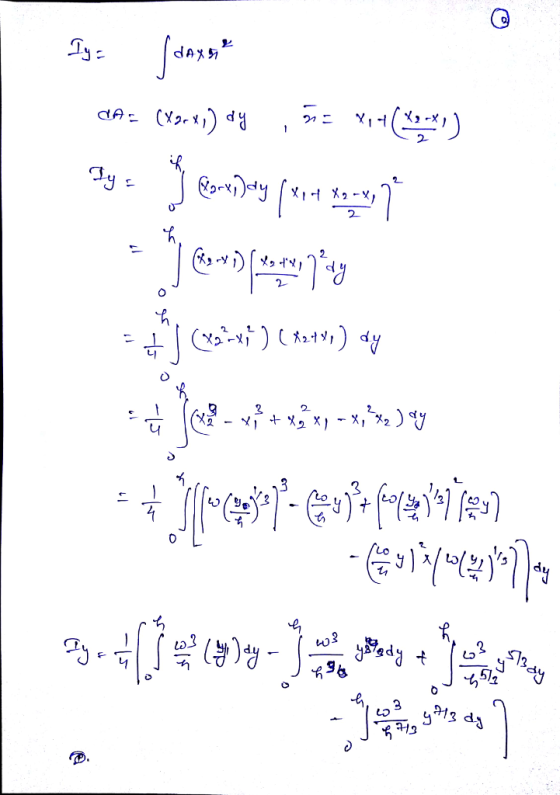

Consider the cross-section show in the figure yW 03 B (w,h) y=-x h" A (0,0) COLLAPSE...
Consider the beam below: w lb/ft Wlb h ft M lb-ft ---H --- bft Cross section...
Consider the beam below: w lb/ft Wlb h ft M lb-ft ---H --- bft Cross section EE li ft * COLLAPSE IMAGES W = 53 lb/ft = 148 lb ly = 8 ft 2 = 5 ft b = 0.5 ft h = 0.1 ft M= 143 lb.ft The vertical reaction at A. ENTER 3 tries remaining. 1 point(s) possible The horizontal reaction at A. lb ENTER 3 tries remaining. 1 point(s) possible The vertical reaction at B. ENTER 3...
Consider the cross-section shown in the accompanying figure and determine, from first principles, the expressions for th...
Consider the cross-section shown in the accompanying figure and
determine, from first principles, the expressions for the second
moment of area about both the x- and y-axes.
y b h 4 3h Parabolic 4
y b h 4 3h Parabolic 4
Consider the following picture. goA W lb COLLAPSE IMAGES F2 = 31 lb W=93 b =...
Consider the following picture. goA W lb COLLAPSE IMAGES F2 = 31 lb W=93 b = 42 deg Find the magnitude of the force F, to keep the system in equilibrium. ENTER 3 tres remaining points) Sossible Find the direction of the force F, measured counter clockwise from the positive X-axis to keep the system in equilibrium deg ENTER stries remaining points possible
For the given cross section of the fit the shape board, with dimensions W' by L',...
For the given cross section of the fit the shape board, with dimensions W' by L', the centroids of the shapes are evenly spaced apart and intersect the x-axis. The shapes are void and neglect the thickness of the board. Calculate: L ft kaft a ft W ēst W ft COLLAPSE IMAGES a = 1.2 ft W = 15 ft L = 11 ft The moment of inertia about the x-axis through the centroid of the board without voids. 1/1...
please answer both of them and show all the steps , (b) Find or show the limit does not exist:linm (x, y) → (0,0) x2 + y2 8, (b) Show that the following limit does not exist 2 lim (x, y) → (0,0) x...
please answer both of them and show all the steps
, (b) Find or show the limit does not exist:linm (x, y) → (0,0) x2 + y2 8, (b) Show that the following limit does not exist 2 lim (x, y) → (0,0) x2 + y2
, (b) Find or show the limit does not exist:linm (x, y) → (0,0) x2 + y2 8, (b) Show that the following limit does not exist 2 lim (x, y) → (0,0) x2...
Consider the following BNF grammar: S ::= A x | B y A ::= B y...
Consider the following BNF grammar: S ::= A x | B y A ::= B y | C w B ::= x | B w C ::= y Which of the following regular expressions describes the same set of strings as the grammar? 1. xwxy + xww∗y + ywx 2. xwx + xww∗y + yw 3. xw∗y + xwxyx + ywx 4. xwy + xw∗xyx + ywx 5. xw∗y + xw∗yx + ywx 6. none of the above 7. all...
Consider the following AM system x(t) z(t) y(t) H(a) 10ω -10 othwise 2cos (100t) Ifthe input signal x(t), the has a spectrum function, X(w), shown above, a) Write the expressions of r(w) and Z(w)...
Consider the following AM system x(t) z(t) y(t) H(a) 10ω -10 othwise 2cos (100t) Ifthe input signal x(t), the has a spectrum function, X(w), shown above, a) Write the expressions of r(w) and Z(w) in terms of X(w). b) Sketch the spectrums, x(ω), and r(a)Jdentify the LSE and USB components on the graphs? 14] 131 lain the type of AM modulation is the output z(03
Consider the following AM system x(t) z(t) y(t) H(a) 10ω -10 othwise 2cos (100t) Ifthe...
if (r.y) (0,0), 0,f (, y) (0, 0) 2. Consider f : IR2 -R defined by f(r,y)-+ (a) Show by explicit computation that the directional derivative exists at (x, y)- (0,0) for all oi rections u є R2 with 1...
if (r.y) (0,0), 0,f (, y) (0, 0) 2. Consider f : IR2 -R defined by f(r,y)-+ (a) Show by explicit computation that the directional derivative exists at (x, y)- (0,0) for all oi rections u є R2 with 1 11-1, but that its value %(0.0) (Vf(0,0).u), fr at least one sucli u. (b) Show that the partial derivatives of f are not continuous at (0,0)
if (r.y) (0,0), 0,f (, y) (0, 0) 2. Consider f : IR2 -R...
4B and the beam cross-section is shown in Figure Q3 (b) The yield stress of the...
4B and the beam cross-section is shown in Figure Q3 (b) The yield stress of the material is 250 MPs and the material behaves linearly elastic-perfectly plastic. Figure Q3 (a) shows an overhanging beam ABC subjected to a uniformly distributed load w along a) Sketch the bending moment dingram of the beam b) Calculate the magnitade of moment that causes a plastic hinge (fully plastic) in the cross section Find the magnitude of w during plastic hinge at the most...
3. Bunyip reservoir is 1km long, 100m wide and 25m deep, with a uniform cross-section that is modelled by a curve of the form f(x) ax2 bx +c as shown in Figure 1. 100m (0,0) (100,0) 25m (50,-25) Figu...
3. Bunyip reservoir is 1km long, 100m wide and 25m deep, with a uniform cross-section that is modelled by a curve of the form f(x) ax2 bx +c as shown in Figure 1. 100m (0,0) (100,0) 25m (50,-25) Figure 1: Cross-section of Bunyip Reservoir (a) Find the values of a, b and c, given that the points (0, 0), (50, -25) and (100, 0) lie of the curve. (b) When full, how much water d oes Bunyip reservoir hold (c)...
Consider the beam below: w lb/ft Wlb h ft M lb-ft ---H --- bft Cross section EE li ft * COLLAPSE IMAGES W = 53 lb/ft = 148 lb ly = 8 ft 2 = 5 ft b = 0.5 ft h = 0.1 ft M= 143 lb.ft The vertical reaction at A. ENTER 3 tries remaining. 1 point(s) possible The horizontal reaction at A. lb ENTER 3 tries remaining. 1 point(s) possible The vertical reaction at B. ENTER 3...
Consider the cross-section shown in the accompanying figure and
determine, from first principles, the expressions for the second
moment of area about both the x- and y-axes.
y b h 4 3h Parabolic 4
y b h 4 3h Parabolic 4
Consider the following picture. goA W lb COLLAPSE IMAGES F2 = 31 lb W=93 b = 42 deg Find the magnitude of the force F, to keep the system in equilibrium. ENTER 3 tres remaining points) Sossible Find the direction of the force F, measured counter clockwise from the positive X-axis to keep the system in equilibrium deg ENTER stries remaining points possible
For the given cross section of the fit the shape board, with dimensions W' by L', the centroids of the shapes are evenly spaced apart and intersect the x-axis. The shapes are void and neglect the thickness of the board. Calculate: L ft kaft a ft W ēst W ft COLLAPSE IMAGES a = 1.2 ft W = 15 ft L = 11 ft The moment of inertia about the x-axis through the centroid of the board without voids. 1/1...
please answer both of them and show all the steps
, (b) Find or show the limit does not exist:linm (x, y) → (0,0) x2 + y2 8, (b) Show that the following limit does not exist 2 lim (x, y) → (0,0) x2 + y2
, (b) Find or show the limit does not exist:linm (x, y) → (0,0) x2 + y2 8, (b) Show that the following limit does not exist 2 lim (x, y) → (0,0) x2...
Consider the following AM system x(t) z(t) y(t) H(a) 10ω -10 othwise 2cos (100t) Ifthe input signal x(t), the has a spectrum function, X(w), shown above, a) Write the expressions of r(w) and Z(w) in terms of X(w). b) Sketch the spectrums, x(ω), and r(a)Jdentify the LSE and USB components on the graphs? 14] 131 lain the type of AM modulation is the output z(03
Consider the following AM system x(t) z(t) y(t) H(a) 10ω -10 othwise 2cos (100t) Ifthe...
if (r.y) (0,0), 0,f (, y) (0, 0) 2. Consider f : IR2 -R defined by f(r,y)-+ (a) Show by explicit computation that the directional derivative exists at (x, y)- (0,0) for all oi rections u є R2 with 1 11-1, but that its value %(0.0) (Vf(0,0).u), fr at least one sucli u. (b) Show that the partial derivatives of f are not continuous at (0,0)
if (r.y) (0,0), 0,f (, y) (0, 0) 2. Consider f : IR2 -R...
4B and the beam cross-section is shown in Figure Q3 (b) The yield stress of the material is 250 MPs and the material behaves linearly elastic-perfectly plastic. Figure Q3 (a) shows an overhanging beam ABC subjected to a uniformly distributed load w along a) Sketch the bending moment dingram of the beam b) Calculate the magnitade of moment that causes a plastic hinge (fully plastic) in the cross section Find the magnitude of w during plastic hinge at the most...
3. Bunyip reservoir is 1km long, 100m wide and 25m deep, with a uniform cross-section that is modelled by a curve of the form f(x) ax2 bx +c as shown in Figure 1. 100m (0,0) (100,0) 25m (50,-25) Figure 1: Cross-section of Bunyip Reservoir (a) Find the values of a, b and c, given that the points (0, 0), (50, -25) and (100, 0) lie of the curve. (b) When full, how much water d oes Bunyip reservoir hold (c)...
