Question

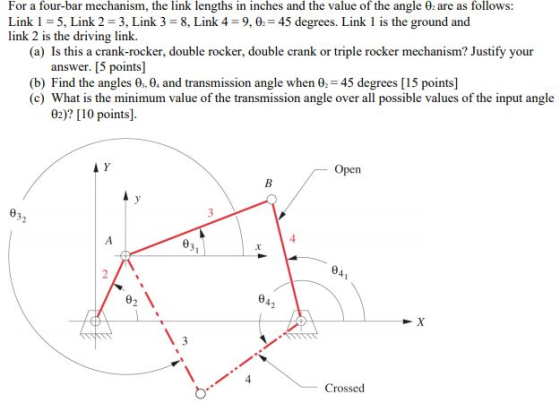

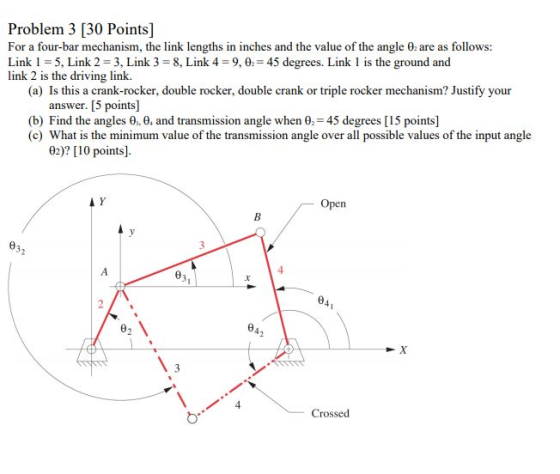

For a four-bar mechanism, the link lengths in inches and the value of the angle 02 are as follows: Link 1-5, Link 2-3, Link 3-8, Link 4-9, θ. = 45 degrees. Link l is the ground and link 2 is the driving link. (a) Is this a crank-rocker, double rocker, double crank or triple rocker mechanism? Justify your answer. [5 points] (b) Find the angles 0.04 and transmission angle when θ2 45 degrees [15 points] (c) What is the minimum value of the transmission angle over all possible values of the input angle の? [10 points] Open Crossed

Please Solve and Give Detail. Thank you.

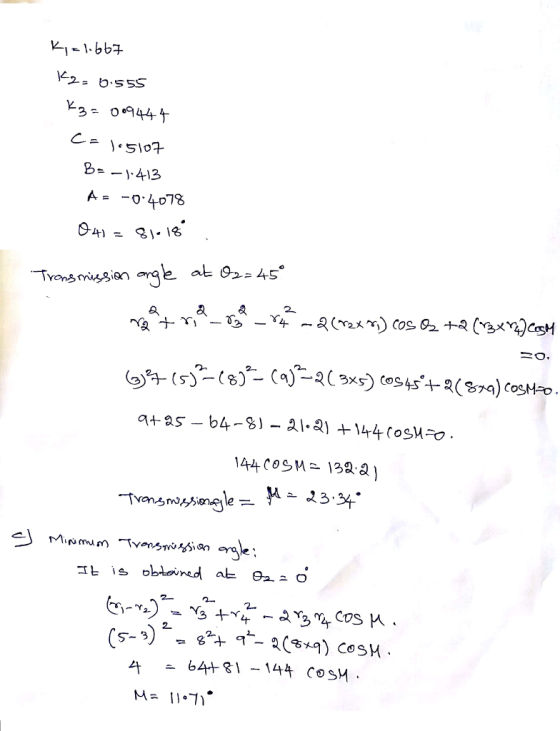

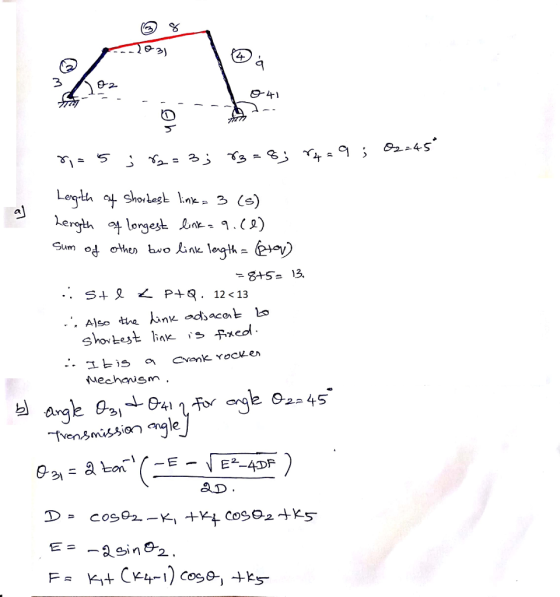

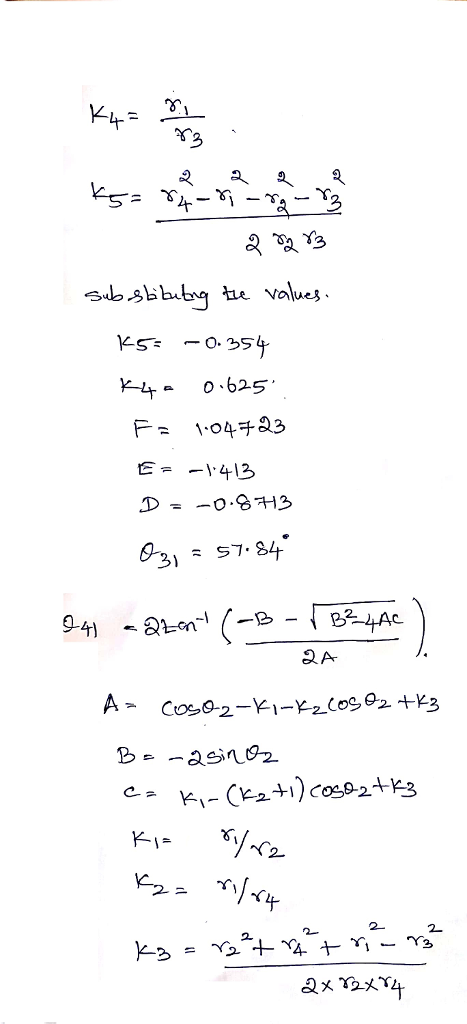

Answer 1
