4.2.Using the conjugate beam
method, calculate the following deformations for beams in question
1.
θA, θC, ΔB, ΔC.
Homework Answers
Add Answer to:
4.2.Using the conjugate beam
method, calculate the following deformations for beams in question
1.
θA, θC,...
5. Use the virtual work method using visual integration and only bending deformations to find the...
5. Use the virtual work method using visual integration and only bending deformations to find the indicated deflections/rotations in each structure. Calculate the deflection at point D and the rotation at point B. 1.46-10 mm and E 200 GPa. (20pts) Moment release 60 kN 80 kN 5 m 5 m 5 m
Structural analysis 5. Use the virtual work method using visual integration and only bending deformations to...
Structural analysis
5. Use the virtual work method using visual integration and only bending deformations to find the indicated deflections/rotations in each structure. Calculate the deflection at point D and the rotation at point B. I 1.46 10'mm and E-200 GPa. (20pts) NMomen, release[60kN 60 kN 5 m 5 m 5 m 5 m
5. Use the virtual work method using visual integration and only bending deformations to find the indicated deflec...
5. Use the virtual work method using visual integration and only bending deformations to find the indicated deflections/rotations in each structure. Calculate the deflection at point D and the rotation at point B.I-1.46-10'mm and E 200 GPa. (20pts) 80 KN Moment release 60 KN 5 m 5 m 5 m 5 m 6. Use the virtual work method include both shear and bending deformations to determine the vertical deflection and rotation at point B. E-29,000 ksi; G 11000 ksi 1...
Problem 1: A two-span beam carries an air conditioner unit on one of the spans as...
Problem 1: A two-span beam carries an air conditioner unit on one of the spans as shown below. Find the vertical reactions using the force method. 20 kN/m W250x32.7 A = 4190 mm 1 = 4.91 X107 mm E = 200 GPa = 200 kN/mm² DB ---3m --- --- 3 m ----
Deflection of Beams using Conjugate Beam Method

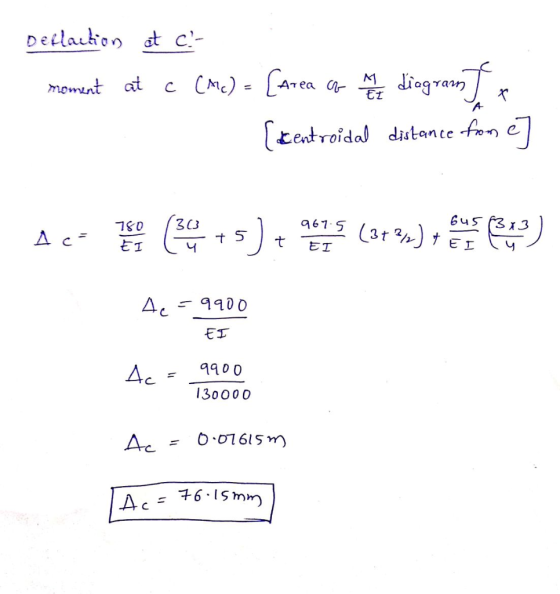

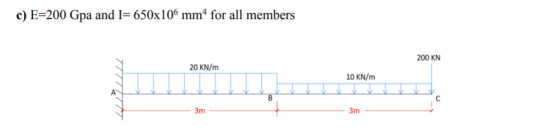

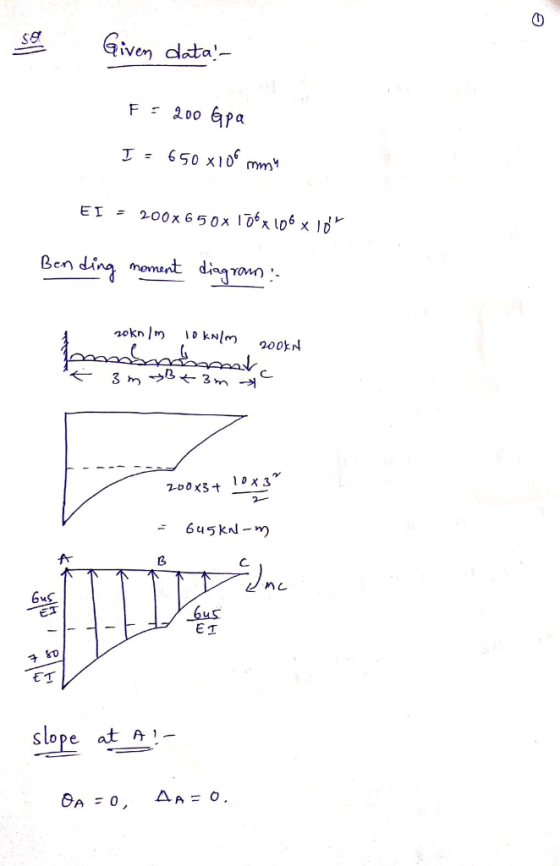

Calculate the slope at C and displacement at C of the beam loaded as shown using conjugate beam method.
The composite beam is constructed from wood and reinforced with a steel strap 10 mm 300...
The composite beam is constructed from wood and reinforced with a steel strap 10 mm 300 mm 10 mm 175 mm 52 kN. Take E 200 GPa E= 15 GPa. It is subjected to a shear of V TUDICll.23 Part A Use the method of composite beams and calculate the maximum shear stress in the beam Express your answer to three significant figures and include appropriate units ? Value Units Tmax= Submit Request Answer Provide Feedback
The composite beam is...
please disregard work For the structure shown below, using the FORCE METHOD determine the reactions at...
please disregard work
For the structure shown below, using the FORCE METHOD determine the reactions at A and at C when a distributed load w =6 kN/m is applied on the column and concentrated load P=20 kN applied on the beam as shown. (Moment of inertia for the beam is 2xl and for the column is 3xl same material. E= 200 GPa and 1 = 240x106 mm. A is a built-in support, the members are rigidly connected at B and...
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure...
Q5: Using force method, determine the reactions of the
supports for the beam shown in Figure (5). Then draw shear and
bending moment diagrams for the beam. EI is constant. Use conjugate
beam method to determine deflections.
I need it in 30min or 1 h
6 m 50 KN 200 kN.m 22 А В. С 9 m to 3m
Determine the displacement at B using the conjugate beam method. Determi ine the displace ment at...
Determine the displacement at B using the conjugate beam
method.
Determi ine the displace ment at B. EI is constant Use the conjugate-beam method. 10 kN 6 KN 2 m
QUESTION 1 [25 marks A frame loaded with a uniformly distributed load at Member AB and...
QUESTION 1 [25 marks A frame loaded with a uniformly distributed load at Member AB and point load at Member BC and joint B. It has pinned supports A and C, while joint B is fixed connected, as can be seen in Figure 1. Take E-200 GPa. a) Using the slope-deflection method, calculate the moments and illustrate the bending moment diagram. [15 marks) b) Then calculate the shear forces and sketch the shear force diagram. [10 marks) 22 KN 10...
5. Use the virtual work method using visual integration and only bending deformations to find the indicated deflections/rotations in each structure. Calculate the deflection at point D and the rotation at point B. 1.46-10 mm and E 200 GPa. (20pts) Moment release 60 kN 80 kN 5 m 5 m 5 m
Structural analysis
5. Use the virtual work method using visual integration and only bending deformations to find the indicated deflections/rotations in each structure. Calculate the deflection at point D and the rotation at point B. I 1.46 10'mm and E-200 GPa. (20pts) NMomen, release[60kN 60 kN 5 m 5 m 5 m 5 m
5. Use the virtual work method using visual integration and only bending deformations to find the indicated deflections/rotations in each structure. Calculate the deflection at point D and the rotation at point B.I-1.46-10'mm and E 200 GPa. (20pts) 80 KN Moment release 60 KN 5 m 5 m 5 m 5 m 6. Use the virtual work method include both shear and bending deformations to determine the vertical deflection and rotation at point B. E-29,000 ksi; G 11000 ksi 1...
Problem 1: A two-span beam carries an air conditioner unit on one of the spans as shown below. Find the vertical reactions using the force method. 20 kN/m W250x32.7 A = 4190 mm 1 = 4.91 X107 mm E = 200 GPa = 200 kN/mm² DB ---3m --- --- 3 m ----
The composite beam is constructed from wood and reinforced with a steel strap 10 mm 300 mm 10 mm 175 mm 52 kN. Take E 200 GPa E= 15 GPa. It is subjected to a shear of V TUDICll.23 Part A Use the method of composite beams and calculate the maximum shear stress in the beam Express your answer to three significant figures and include appropriate units ? Value Units Tmax= Submit Request Answer Provide Feedback
The composite beam is...
please disregard work
For the structure shown below, using the FORCE METHOD determine the reactions at A and at C when a distributed load w =6 kN/m is applied on the column and concentrated load P=20 kN applied on the beam as shown. (Moment of inertia for the beam is 2xl and for the column is 3xl same material. E= 200 GPa and 1 = 240x106 mm. A is a built-in support, the members are rigidly connected at B and...
Q5: Using force method, determine the reactions of the
supports for the beam shown in Figure (5). Then draw shear and
bending moment diagrams for the beam. EI is constant. Use conjugate
beam method to determine deflections.
I need it in 30min or 1 h
6 m 50 KN 200 kN.m 22 А В. С 9 m to 3m
Determine the displacement at B using the conjugate beam
method.
Determi ine the displace ment at B. EI is constant Use the conjugate-beam method. 10 kN 6 KN 2 m
QUESTION 1 [25 marks A frame loaded with a uniformly distributed load at Member AB and point load at Member BC and joint B. It has pinned supports A and C, while joint B is fixed connected, as can be seen in Figure 1. Take E-200 GPa. a) Using the slope-deflection method, calculate the moments and illustrate the bending moment diagram. [15 marks) b) Then calculate the shear forces and sketch the shear force diagram. [10 marks) 22 KN 10...
