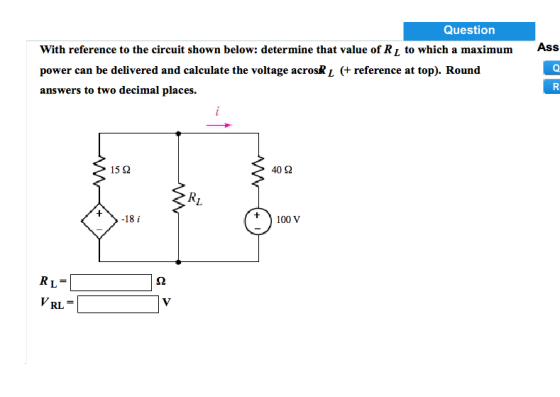

Question Ass With reference to the circuit shown below: determine that value of Ri to which...

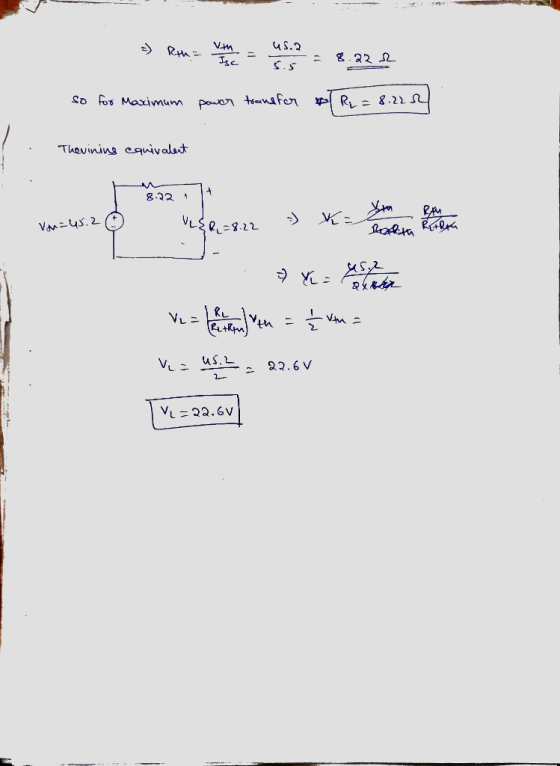

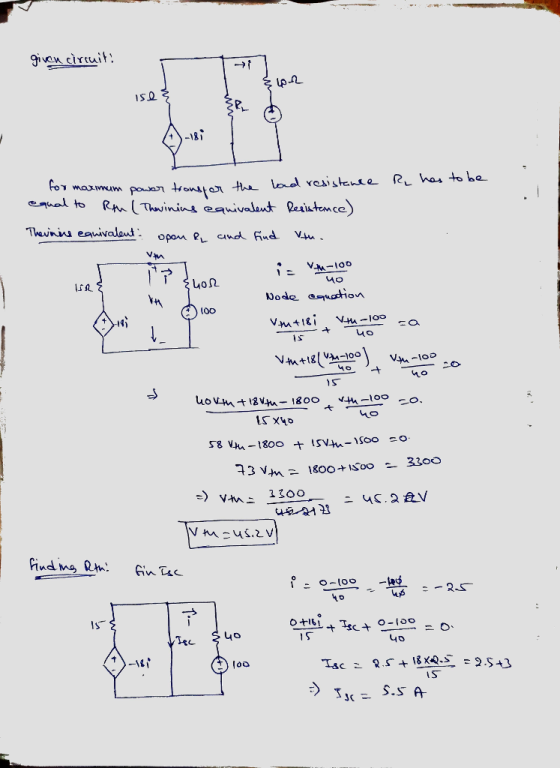

With reference to the circuit shown below, determine that value of RL to which a maximum power can be delivered and calculate the voltage across R 20 0 50 R + 10 V A. 20 ohms and 0.24 V B. 4.76 ohms and 0.24 V O C. 4.76 ohms and 10 V D.8,32 ohms and 5 V E. None of these ww)
Given: The circuit shown above.
Required: Calculate the value of the load resistor,
RL, that will draw the maximum power from the circuit.
Also, calculate the maximum amount of power that can be delivered
to RL from the circuit.
Solution:
RL = ______ Ω
Pmx = ______ W
15 о 12 O
b) For the circuit shown in Figure Q1(b) below, the voltage source is 18 V. Determine Vo, Voz and /. [CO2/PO3/C4] (10 marks) Vo1 0.47 k 1 ka Vo2 Si 18 V Si Figure Q1(b) For the circuit shown in Figure Q1(b) below, the voltage source is 18 V. Determine b) Vot, Voz and / [CO2/PO3/C4] (10 marks) Vof 1 ka 0.47 kn Vo2 ZSI 18 V Figure Q1(b) ) Figure Q1(c) shows a basic voltage regulator circuit. Determine Vi,...
(4) For the circuit shown in Fig.3, determine the value of RL so that maximum power is delivered to the load and calculate the value of the maximum power which can delivered to the load. ΚΩ R 3 mA 6ΚΩ 10 V 4K Fig. 3 (1Martie
QUESTION 5 a) Determine the value of current A in Figure Q5 by using Thevenin Theorem. Solve VH using superposition theorem. (15 marks) b) State the value of Ri should have to allow maximum power to be delivered to it. ( mark) e) Calculate the voltage, current and power at the load, R when maximum power is delivered to it. (6 marks) d) Show that the efficiency in term of input and output power of the circuit is 50 %...
In the voltage-divider circuit shown in the figure, the no-load value of vo is 5 V When the load resistance RI is attached across the terminals a and b, vo drops to 3 V.(Figure 1) PartA Find RL Express your answer with the appropriate units RI-7.28 Submit Previous Answers Request Answer Incorrect, Try Again: One attempt remaining Provide Feedback igure 1 of 1 40Ω 20 V R2 vo
please answer
8. For the circuit shown in figure 8, find value of Ri to delivered maximum power from the network then evaluate maximum power. R L 10Ω 8Ω 4Ω 4 A 50 V Figure 8
a. For the circuit given in Figure 6
i. Find the load resistance RL that will receive maximum power
and determine the maximum power.
ii. Determine the power dissipated on the load when RL = 2 Ω and
RL = 10 Ω.
Figure 6
b. For the circuit shown in Figure 4, determine:
iii. The power delivered to the load.
iv. The impedance required in a matching network that will
receive maximum power.
Figure 4
1. R 1012 R2 32012...
Q1. (3 marks) In the circuit shown below, R-1.5KO and the voltage drop across Ri is 4.5V. (1 pt.) A. What is the voltage drop across R? (1 pt.) B. What is the value of the resistance R? (1 pt.) C. What is the power delivered by the source voltage? S Answer: wwiw R Ri Vs=15V Q2. (3 marks) Refer to the circuit below. A. Using the voltage divider law, find the voltage between the points A and B. B....
that's all information it gives
A zener-diode voltage regulator circuit is shown below. The tage V 8.0V and the zener resistance is assumed to Problem 3: (20 points) zener diode has breakdown vol be 0 ohms. The power supply voltage Vps can vary between resistance RL can vary between 100 ohms and 1 kohm. 10V and 14V and the load Ri PS 1. Find a value of Ri such that the zener diode remains properly biased over the range of...
