CPVA problem 3. A CPVA is attached to the crankshaft driven by a three-cylinder four-stroke engine which produces a maximum primary torque oscillation of magnitude To 30 Nm. The circular path of the absorber is centered at a point R 5 cm from the center of crankshaft rotation. Find the desired radius and mass of the absorber if the absorber is to not exceed an angular deflection amplitude of 30 degrees when the engine is running at 750 rpm.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

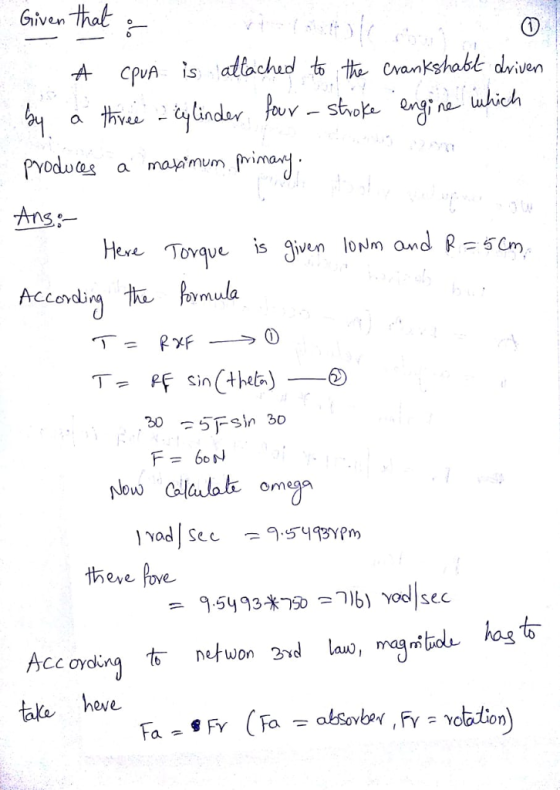

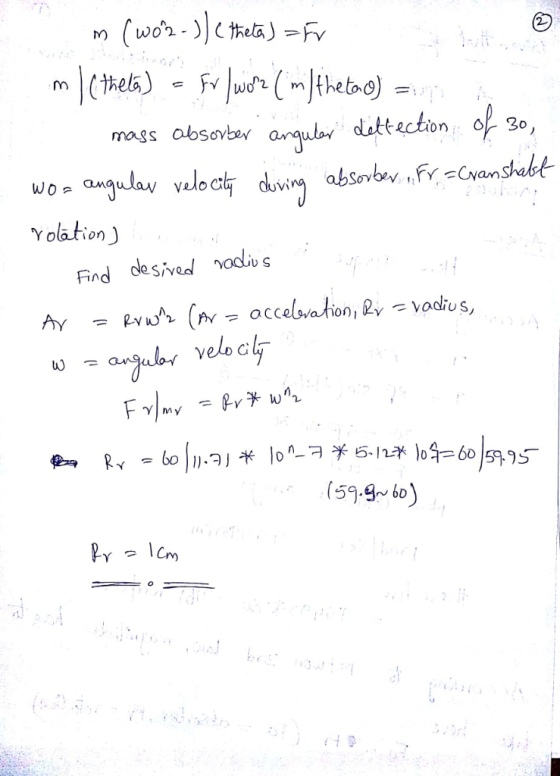

Given hat Here Tovqye s given oNm on

0 0
Add a comment
Know the answer?
Add Answer to:
CPVA problem 3. A CPVA is attached to the crankshaft driven by a three-cylinder four-stroke engine...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Question 2 (a) A six-cylinder four-stroke internal combustion engine, running at 2,200 rpm, outputs 120 kW...

    Question 2 (a) A six-cylinder four-stroke internal combustion engine, running at 2,200 rpm, outputs 120 kW of brake power. The stroke is equal to the bore. The brake mean effective pressure is 5.5 MPa. Calculate the torque, total displacement volume, stroke and bore. [6] (b) In a car, the engine described in (a) above drives the wheels through the multispeed gearbox shown in Figure Q2. When the engine runs at 2,200 rpm, and the gears are selected as shown in...

  • Help with "B" please Question 2 (a) A six-cylinder four-stroke internal combustion engine, running at 2,200...

    Help with "B" please Question 2 (a) A six-cylinder four-stroke internal combustion engine, running at 2,200 rpm, outputs 120 kW of brake power. The stroke is equal to the bore. The brake mean effective pressure is 5.5 MPa. Calculate the torque, total displacement volume, stroke and bore. [6] (b) In a car, the engine described in (a) above drives the wheels through the multispeed gearbox shown in Figure Q2. When the engine runs at 2,200 rpm, and the gears are...

  • Problem 6. Compute the brake mean effective pressure of a four-cylinder, two-stroke engine, 100 mm bore...

    Problem 6. Compute the brake mean effective pressure of a four-cylinder, two-stroke engine, 100 mm bore 125 mm stroke when it develops a torque of 490 Nm. Problem = 7. Find the brake thermal efficiency of an engine which consumes 7 kg of fuel in 20 minutes and develops a brake power of 65kW. The fuel has heating value of 42000 kJ/kg. Problem # 8. Find the mean piston speed of a diesel engine running at 1500 rpm. The engine...

  • Figure 5: Mécanisme Question 3) (25 points) A 3000 W 4-stroke single cylinder engine runs at...

    Figure 5: Mécanisme Question 3) (25 points) A 3000 W 4-stroke single cylinder engine runs at an average speed of 3,600 rpm without flywheel. The figure below shows the idealized torque at the output of the motor [N·m]↑ Figure 6 Couple moteur idéalisé The engine will drive a propeller. The helix can be simplified and considered as a rotation rectangular plate of constant thickness and mass m 2 Kg. 4. rotation b 6,5 cm 1-55,0 cm e 0,5 cm Figure...

  • QUESTION 3: (20 marks) a) A single-cylinder, four-stroke cycle Cl engine with 12.9 cm bore and...

    QUESTION 3: (20 marks) a) A single-cylinder, four-stroke cycle Cl engine with 12.9 cm bore and 18 cm stroke operating at 800 RPM, uses 0.113 kg of fuel in four minutes while developing a torque of 75 N-m. Calculate the brake power in kW and hp. (Hint:0(6 marks) nNT 60000

  • A 3 litre, four-stroke, four-cylinder CI engine running at 3000 rpm produces 48 kW of brake...

    A 3 litre, four-stroke, four-cylinder CI engine running at 3000 rpm produces 48 kW of brake power. Brake thermal efficiency is 30% and the calorific value of fuel is 42 MJ/kg. Assume density of air at ambient condition is 1.1.81 kg/m3, air-fuel ratio 21:1 and mechanical efficiency 0.8. Determine: (a) Rate of fuel flow into the engine (kg/s) (b) Rate of air flow into the engine (kg/s)   (c) Mass rate of exhaust flow (kg/s) (d) Volumetric efficiency (e) Indicated thermal...

  • A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder...

    A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder is 80 mm and the stroke is 100 mm. The indicator diagram shows an indicated mean effective pressure of 7.3 bars. The clearance volume (Vmin) of the engine is 420 cm3 . At the speed of 4100 rpm, the fuel consumption is 19.8 kg/hr and the torque developed is 160 Nm. Calculate: a) Brake power b) The brake mean effective pressure c) Friction losses...

  • A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder...

    A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder is 80 mm and the stroke is 100 mm. The indicator diagram shows an indicated mean effective pressure of 7.3 bars. The clearance volume (Vmin) of the engine is 420 cmº. At the speed of 4100 rpm, the fuel consumption is 19.8 kg/hr and the torque developed is 160 Nm. Calculate: (a) Brake power (b) The brake mean effective pressure, (c) Friction losses (d)...

  • A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder...

    A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder is 80 mm and the stroke is 100 mm. The indicator diagram shows an indicated mean effective pressure of 7.3 bars. The clearance volume (Vmin) of the engine is 420 cm². At the speed of 4100 rpm, the fuel consumption is 19.8 kg/hr and the torque developed is 160 Nm. Calculate: (a) Brake power (2 mark) (b) The brake mean effective pressure, (1 mark)...

  • A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder...

    A gasoline engine of 6 cylinders operates on the four-stroke cycle. The bore of each cylinder is 80 mm and the stroke is 100 mm. The indicator diagram shows an indicated mean effective pressure of 7.3 bars. The clearance volume (V min) of the engine is 420 cm? At the speed of 4100 rpm, the fuel consumption is 19.8 kg/hr and the torque developed is 160 Nm. Calculate: a) Brake power (2 mark) b) The brake mean effective pressure, (1...
