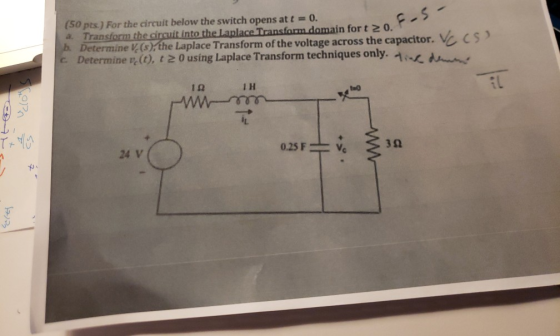

Solving for The switch in the circuit below has been closed for a long time and it opens at t = 0. Find the following: f...
Solving for The switch in the
circuit below has been closed for a long time and it opens at t =
0. Find the following:
for b) can you solve it without using Laplace transform? As in
no s domain, thank you
1. The switch in the circuit below has been closed for a long time and it opens at t = 0. Find the following: (a) (20 points) v(0%), and v.(0%) for t < 0. (b) (20 points) v(t),...
use laplace transform clearly and partial fractions clearly In a practical experiment a sinusoidal input is...
use
laplace transform clearly and partial fractions clearly
In a practical experiment a sinusoidal input is applied at time t 0, to a series RC circuit, with all initial conditions being equal to zero. The resistor R-10 Ω and capacitance C-0.5uF (a)Draw the circuit in the s-domain. (b) Use the Laplace transforms to deduce in both s- domain and time domain:- (ii) (iii) The current flowing in the circuit and The voltage across the capacitor
Please solve the two problems shown and show work. thank you! 5) In the following circuit...
Please solve the two problems shown and show work.
thank you!
5) In the following circuit find an equation for v(t) the voltage across the capacitor for t>O. You may assume the circuit is in the steady-state just before the switch opens at t-0. 6 N 50 -Mu IH 3 10 ml Add equation 6) For the following circuit find an equation for v(t) fort > 0. You can assume that the circuit had reached the steady-state condition before the...
Only need the last question 5 thanks! 3) RLC Parallel Circuits: Differential Equations and Laplace U2...
Only need the last question 5 thanks!
3) RLC Parallel Circuits: Differential Equations and Laplace U2 U1 TOPEN 0 TCLOSE 0 L1 R1 0.15H C1 2E-8F 11 10E-3 2 10E-3 At t 0, U1 closes and U2 opens. 3.1: What is the intial (t-0+) current through the capacitor? What is the initial (t=0+) voltage across the capacitor? 3.2: What is the DC steady state current though the capacitor ast goes to infinity? 3.3: Find the current through the CAPACITOR as...
Can someone please answer this? Please write clearly and neatly, and show all work please? I...
Can someone please answer this? Please write clearly and neatly,
and show all work please? I am trying to understand this material.
Thanks
Derive an expression for the rate of increase dVIdt of the voltage circuit. Evaluate your result at t- 0 and show that that if the capacitor continued charging steadily at this rate, it would reach full charge in exactly one time constant.
need help with all parts Problem #6 - (18%) The circuit below has initial conditions I(t=0)=0...
need help with all parts
Problem #6 - (18%) The circuit below has initial conditions I(t=0)=0 A and Vet=0) = 8 V Do the following: 10 * YO a) Draw the s-domain equivalent circuit. (4%). Analysis shows that the Laplace Transform of voltage Vc is: 8.92.C + v=d Vc(s) = (S2+RCL b) Substitute numbers in the equation above and express in a partial fraction expansion. (Do your work on the following page) (6%) c) Compute an expression for the time...
Please show work. Nice handwriting appreciated. thank you V1 0/12V C.I Rl 0.25 L1 1mH 22uF...
Please show work. Nice
handwriting appreciated. thank you
V1 0/12V C.I Rl 0.25 L1 1mH 22uF 1kHz Use Complex Analysis to analyze circuit. Express complex results in exponential notation. Analyze the RLC circuit. All phases are relative to the input voltage. 1. Determine the complex voltage (amplitude and phase) across the inductor. (76.7 V, 165 degh 2. Determine the complex voltage (ampl and phase) across the capacitor. (88.3V, -14 deg) 3. Determine the complex voltage (ampl and phase) across the...
Please help to answer this question and show the work clearly because I want to learn....
Please help to answer this question and show the work clearly
because I want to learn. I will give thumbs up for sure, thank you
very much!!!
lebi, 03134\. The Assume that a circuit has the impulse response of h(t)= { 10, elsewhere input x(t) to the circuit is given by x(t)=6u(t), where u(t) is the unit step function. Assume that the circuit output is given by y(t). a) (20 pts) Use the convolution integral to derive the expressions for...
1. Second order transients Z. Z V (t) Z Z N 2 The switch is in...
1. Second order transients Z. Z V (t) Z Z N 2 The switch is in the left position and moves to the right position at t=r where >0. Let Z, be a resistor, R. Z be a inductor, Ly, 2, be a capacitor, Cr, Z. be a resistor, Rp. 2 be a resistor, Rs. Zo be a capacitor, Co, and the input voltage, vy(t) =uſt) volts. This question is about the voltage across the capacitor: Cg. viz., V.(s), v)....
I need help on this one, please and thank you. The circuit in the figure consists...
I need help on this one, please and thank you.
The circuit in the figure consists of switch S, a 6.00 V ideal battery, a 30.0 Mohm resistor, and an airfilled capacitor. The capacitor has parallel circular plates of radius 5.70 cm, separated by 3.50 mm. At time t = 0, switch S is closed to begin charging the capacitor. The electric field between the plates is uniform. At t = 260 mus, what is the magnitude of the magnetic...
Solving for The switch in the
circuit below has been closed for a long time and it opens at t =
0. Find the following:
for b) can you solve it without using Laplace transform? As in
no s domain, thank you
1. The switch in the circuit below has been closed for a long time and it opens at t = 0. Find the following: (a) (20 points) v(0%), and v.(0%) for t < 0. (b) (20 points) v(t),...
use
laplace transform clearly and partial fractions clearly
In a practical experiment a sinusoidal input is applied at time t 0, to a series RC circuit, with all initial conditions being equal to zero. The resistor R-10 Ω and capacitance C-0.5uF (a)Draw the circuit in the s-domain. (b) Use the Laplace transforms to deduce in both s- domain and time domain:- (ii) (iii) The current flowing in the circuit and The voltage across the capacitor
Please solve the two problems shown and show work.
thank you!
5) In the following circuit find an equation for v(t) the voltage across the capacitor for t>O. You may assume the circuit is in the steady-state just before the switch opens at t-0. 6 N 50 -Mu IH 3 10 ml Add equation 6) For the following circuit find an equation for v(t) fort > 0. You can assume that the circuit had reached the steady-state condition before the...
Only need the last question 5 thanks!
3) RLC Parallel Circuits: Differential Equations and Laplace U2 U1 TOPEN 0 TCLOSE 0 L1 R1 0.15H C1 2E-8F 11 10E-3 2 10E-3 At t 0, U1 closes and U2 opens. 3.1: What is the intial (t-0+) current through the capacitor? What is the initial (t=0+) voltage across the capacitor? 3.2: What is the DC steady state current though the capacitor ast goes to infinity? 3.3: Find the current through the CAPACITOR as...
Can someone please answer this? Please write clearly and neatly,
and show all work please? I am trying to understand this material.
Thanks
Derive an expression for the rate of increase dVIdt of the voltage circuit. Evaluate your result at t- 0 and show that that if the capacitor continued charging steadily at this rate, it would reach full charge in exactly one time constant.
need help with all parts
Problem #6 - (18%) The circuit below has initial conditions I(t=0)=0 A and Vet=0) = 8 V Do the following: 10 * YO a) Draw the s-domain equivalent circuit. (4%). Analysis shows that the Laplace Transform of voltage Vc is: 8.92.C + v=d Vc(s) = (S2+RCL b) Substitute numbers in the equation above and express in a partial fraction expansion. (Do your work on the following page) (6%) c) Compute an expression for the time...
Please show work. Nice
handwriting appreciated. thank you
V1 0/12V C.I Rl 0.25 L1 1mH 22uF 1kHz Use Complex Analysis to analyze circuit. Express complex results in exponential notation. Analyze the RLC circuit. All phases are relative to the input voltage. 1. Determine the complex voltage (amplitude and phase) across the inductor. (76.7 V, 165 degh 2. Determine the complex voltage (ampl and phase) across the capacitor. (88.3V, -14 deg) 3. Determine the complex voltage (ampl and phase) across the...
Please help to answer this question and show the work clearly
because I want to learn. I will give thumbs up for sure, thank you
very much!!!
lebi, 03134\. The Assume that a circuit has the impulse response of h(t)= { 10, elsewhere input x(t) to the circuit is given by x(t)=6u(t), where u(t) is the unit step function. Assume that the circuit output is given by y(t). a) (20 pts) Use the convolution integral to derive the expressions for...
1. Second order transients Z. Z V (t) Z Z N 2 The switch is in the left position and moves to the right position at t=r where >0. Let Z, be a resistor, R. Z be a inductor, Ly, 2, be a capacitor, Cr, Z. be a resistor, Rp. 2 be a resistor, Rs. Zo be a capacitor, Co, and the input voltage, vy(t) =uſt) volts. This question is about the voltage across the capacitor: Cg. viz., V.(s), v)....
I need help on this one, please and thank you.
The circuit in the figure consists of switch S, a 6.00 V ideal battery, a 30.0 Mohm resistor, and an airfilled capacitor. The capacitor has parallel circular plates of radius 5.70 cm, separated by 3.50 mm. At time t = 0, switch S is closed to begin charging the capacitor. The electric field between the plates is uniform. At t = 260 mus, what is the magnitude of the magnetic...
