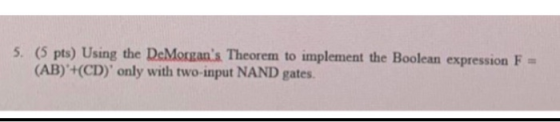

please show full work and #rules needed 5. (5 pts) Using the DeMorgan's Theorem to implement...

Question

Question

please show full work and #rules needed

engineering Computer-Science

Answer 1

Answer #1

De Morgan's law states that A’ + B’ = (A . B)’

So the given function F = (AB)’ + (CD)’

can be written using De Morgan’s law as F = ( (AB)’’ . (CD)’’ )’

Which can be implemented as follows:
