Problem 2.4: Please determine the horizontal and vertical reaction forces required at the bracket to maintain...
Problem 2.4: Please determine the horizontal and vertical reaction forces required at the bracket to maintain...

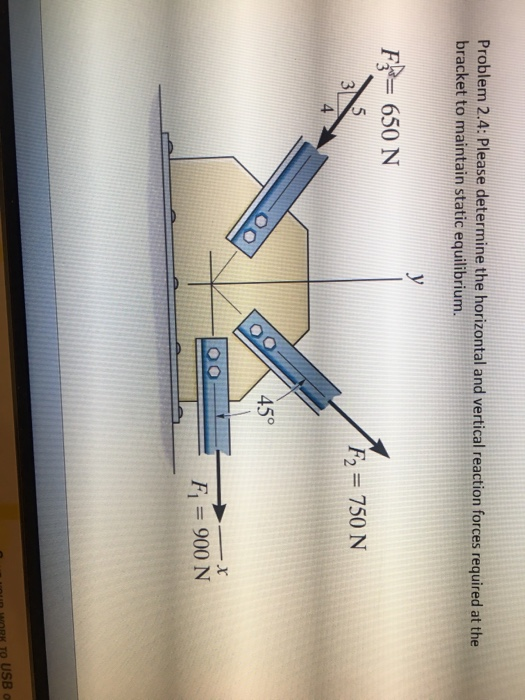

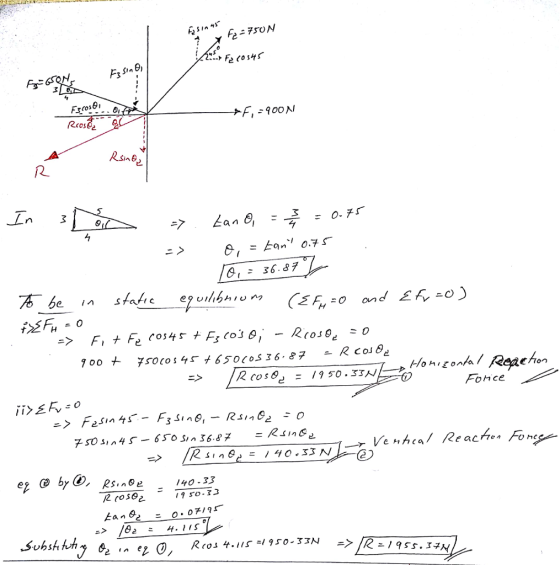

Problem 2.4: Please determine the horizontal and vertical reaction forces required at the bracket to maintain static equilibrium. F 650 N F2 750 N 45° SAVE YOUR WORK TO USB OR
three forces act on a bracket as shown two forces acting on a bracket 7. Three...
three forces act on a bracket as shown
two forces acting on a bracket
7. Three forces act on the bracket as shown. The resultant of these vectors acts along the u axis with a magnitude of 600 N. Determine the magnitude and direction of F1. F2 650 N Fi 45° F3 500 N 2. Two forces are acting on the bracket. The magnitude and direction of the vector F is 450 N and 60°, respectively. Find the magnitude of...
A 10 kg object on a frictionless table is subjected to two horizontal forces, F1 and...
A 10 kg object on a frictionless table is subjected to two horizontal forces, F1 and F2, with magnitudes F1 = 22 N and F2 = 38 N, as shown in Figure 4-28. 10kg 30 Figure 4-28 (a) Find the acceleration a of the object (0.3 (b) A third force F3 is applied so that the object is in static equilibrium. Find F3 x i)m/s2 i1.64545 X (-41 x i) N |-32.909
A 10 kg object on a frictionless table...
Problem 3.1 The figure shows the external forces act- ing on an object in equilibrium. The...
Problem 3.1 The figure shows the external forces act- ing on an object in equilibrium. The forces F1 = 32 N and F3 = 50 N. Determine F2 and the angle a. у F 30° X 12° a FZ F
1) (100) For the following truss Determine the horizontal and vertical components of the reaction at...
1) (100) For the following truss Determine the horizontal and vertical components of the reaction at pin C, and the a. reaction at roller F required to support the truss. Use the method of joints to find the internal forces of each member b. Assuming the maximum allowable tensile stress is 36 ksi and the maximum allowable C. compressive stress is 30ksi what is the required cross sectional area? Assume each member has the same cross sectional area. A 20...
Problem 2.48 Part A Three forces act on the bracket. The resultant force is directed along...
Problem 2.48 Part A Three forces act on the bracket. The resultant force is directed along the positive z' axis and has a magnitude of 500 N (Figure 1) Determine the magnitude of F Express your answer to three significant figures and include the appropriate units. 田 ? Fi Value Units Submit Part B Figure < 1of1 Determine the direction θ of F1 Express your answer using three significant figures. -200 N F 180 N 60 Submit Request Answer 13...
Determine the x and y of the forces 1. Resultants of force systems (10 pts) Determine...
Determine the x and y of the forces
1. Resultants of force systems (10 pts) Determine the x and y components of the three forces F1, F2 and F3. Also, determine the magnitude and direction of the resultant force. Solve the problem by filling the table below. Indicate force direction with positive/negative sign. Fz=100 N F=100N N x component (N) y component (N) 45° ST F3=200 N Resultant force
Number 7 only please Three forces act on the anchor bolt connection shown below. The forces...
Number 7 only please
Three forces act on the anchor bolt connection shown below. The forces are concurrent at point A.Express all answers to three significant figures with the appropriate units. F2 35 kN FI F3 = 10 kN Express force F1 in rectangular vector form. Take F: = 20 kN and 6, = 50.. Problem #2 Express force F2 in rectangular vector form. Problem#3 Express force F, in rectangular vector form. Problem#4 Determine the resultant force FR in rectangular...
what is the vertical and horizontal reaction force at point B and the force found on...
what is the vertical and horizontal reaction force at point B and
the force found on cable AC?
A member (AB) having a uniform distributed weight of 392.4 N/m is supported by a cable (AC) as shown. The member supports a block having a weight of 4905. Find the tension force in the cable and the horizontal and vertical reaction forces at the pin-connection at B. Neglect the weight of the cable. 7m 5m 12m W - 4905N OCO DHI...
Please work problem 2-5. 2.3 VECTOR ADDITION OF FORCES *2-4. The vertical force Facts downward at...
Please work problem 2-5.
2.3 VECTOR ADDITION OF FORCES *2-4. The vertical force Facts downward at A on the two- membered frame. Determine the magnitudes of the two components of F directed along the axes of AB and AC. Set F = 500 N. 2-5. Solve Prob. 2-4 with F = 350 lb. Probs. 2-415
Problem 2.4: Please determine the horizontal and vertical reaction forces required at the bracket to maintain static equilibrium. F 650 N F2 750 N 45° SAVE YOUR WORK TO USB OR
three forces act on a bracket as shown
two forces acting on a bracket
7. Three forces act on the bracket as shown. The resultant of these vectors acts along the u axis with a magnitude of 600 N. Determine the magnitude and direction of F1. F2 650 N Fi 45° F3 500 N 2. Two forces are acting on the bracket. The magnitude and direction of the vector F is 450 N and 60°, respectively. Find the magnitude of...
A 10 kg object on a frictionless table is subjected to two horizontal forces, F1 and F2, with magnitudes F1 = 22 N and F2 = 38 N, as shown in Figure 4-28. 10kg 30 Figure 4-28 (a) Find the acceleration a of the object (0.3 (b) A third force F3 is applied so that the object is in static equilibrium. Find F3 x i)m/s2 i1.64545 X (-41 x i) N |-32.909
A 10 kg object on a frictionless table...
Problem 3.1 The figure shows the external forces act- ing on an object in equilibrium. The forces F1 = 32 N and F3 = 50 N. Determine F2 and the angle a. у F 30° X 12° a FZ F
1) (100) For the following truss Determine the horizontal and vertical components of the reaction at pin C, and the a. reaction at roller F required to support the truss. Use the method of joints to find the internal forces of each member b. Assuming the maximum allowable tensile stress is 36 ksi and the maximum allowable C. compressive stress is 30ksi what is the required cross sectional area? Assume each member has the same cross sectional area. A 20...
Problem 2.48 Part A Three forces act on the bracket. The resultant force is directed along the positive z' axis and has a magnitude of 500 N (Figure 1) Determine the magnitude of F Express your answer to three significant figures and include the appropriate units. 田 ? Fi Value Units Submit Part B Figure < 1of1 Determine the direction θ of F1 Express your answer using three significant figures. -200 N F 180 N 60 Submit Request Answer 13...
Determine the x and y of the forces
1. Resultants of force systems (10 pts) Determine the x and y components of the three forces F1, F2 and F3. Also, determine the magnitude and direction of the resultant force. Solve the problem by filling the table below. Indicate force direction with positive/negative sign. Fz=100 N F=100N N x component (N) y component (N) 45° ST F3=200 N Resultant force
Number 7 only please
Three forces act on the anchor bolt connection shown below. The forces are concurrent at point A.Express all answers to three significant figures with the appropriate units. F2 35 kN FI F3 = 10 kN Express force F1 in rectangular vector form. Take F: = 20 kN and 6, = 50.. Problem #2 Express force F2 in rectangular vector form. Problem#3 Express force F, in rectangular vector form. Problem#4 Determine the resultant force FR in rectangular...
what is the vertical and horizontal reaction force at point B and
the force found on cable AC?
A member (AB) having a uniform distributed weight of 392.4 N/m is supported by a cable (AC) as shown. The member supports a block having a weight of 4905. Find the tension force in the cable and the horizontal and vertical reaction forces at the pin-connection at B. Neglect the weight of the cable. 7m 5m 12m W - 4905N OCO DHI...
Please work problem 2-5.
2.3 VECTOR ADDITION OF FORCES *2-4. The vertical force Facts downward at A on the two- membered frame. Determine the magnitudes of the two components of F directed along the axes of AB and AC. Set F = 500 N. 2-5. Solve Prob. 2-4 with F = 350 lb. Probs. 2-415
