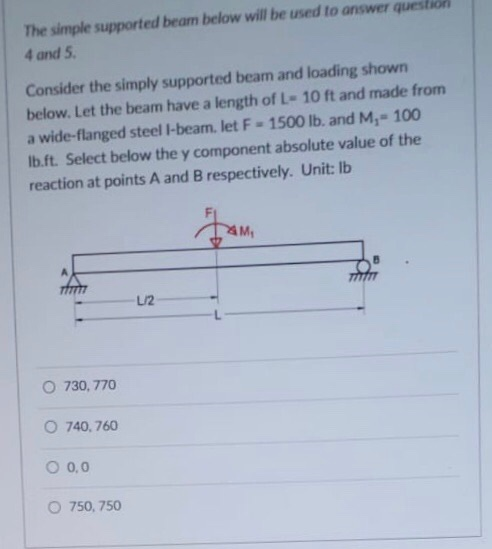

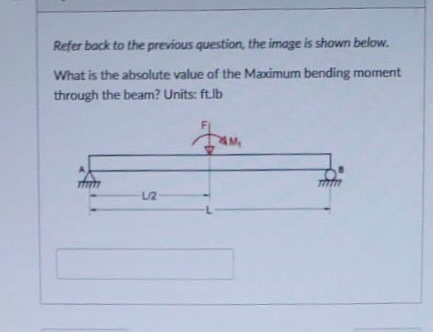

Please clear show work and correct answer Strength of materials The simple supported beam below will...

Question

Question

Please clear show work and correct answer

Strength of materials

engineering Mechanical-Engineering

Answer 1

Answer #1

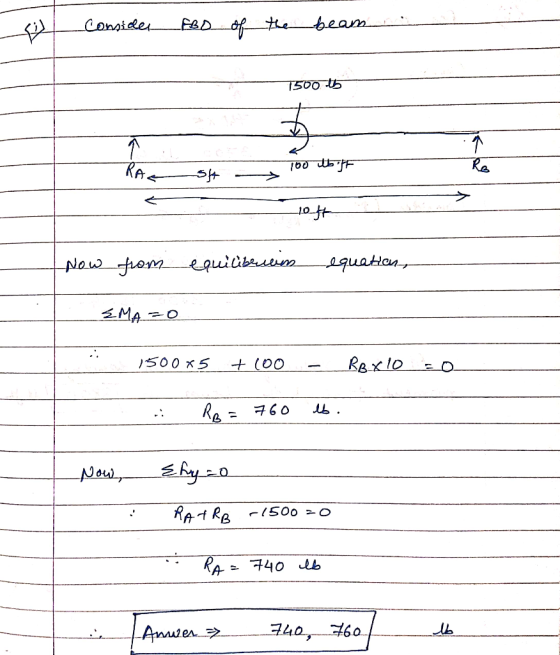

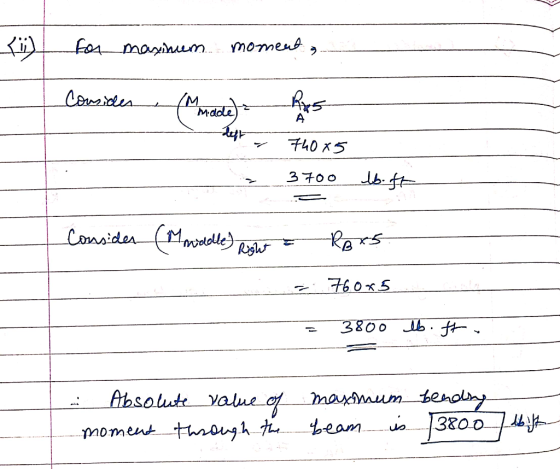

ISOOあ Ra Aniiea. Rrs 60x5

Answer 2

Similar Homework Help Questions

Strength of materials I (CIV213) 1. For the simply supported beam and load shown below A....

Strength of materials I (CIV213) 1. For the simply supported beam and load shown below A. Draw shear and bending moment diagram B. Determine the absolute maximum bending stress. (10pts) I P2 = 16 kN P,= 12 kN 6 cm D 4 m BL 1.5 m. 5 m.° 3.5m 100mm -9 m
Please answer and do not copy another solution 4. A simply supported beam is given below....

Please answer and do not copy another solution 4. A simply supported beam is given below. A movable (crane) concentrated load of 50kips may be placed anywhere along the span, in addition to a uniform live load of 2 kips/ft. Select a W-section for the beam if lateral support is provided only at the beam supports. Hint: make use of influence lines to determine where to place the live loads. You may ignore beam self weight. Steel is A992. 30'
Please show work Answer shown below Problem 4: Use the force-displacement equations for beams to find...

Please show work Answer shown below Problem 4: Use the force-displacement equations for beams to find the slopes at A and B for the simply supported beam with the given loading. E-29,000 ksi, 1-300 in 58 k-ft 20 ft Problem 4: θ,--320 × 10-3rad,9B-6.40 × 10-3rad

correct anwsers and clear show work please 3 pts D Question 1 CamAderthebeam withloadsg showe,below The...

correct anwsers and clear show work please 3 pts D Question 1 CamAderthebeam withloadsg showe,below The town 8 ft.long and is supportiew a torce of 250 B.atits.︾覓ems as shown. The beam cross section is shown onthe left with dinerskin shown ㄺiches. T e dashedIne represorts the k cation or cen usid. a , o, the cross etin Assuring there h-asur a-senuo Select below the localion on the cross section where the compressive normal stress due to bending will be a...
