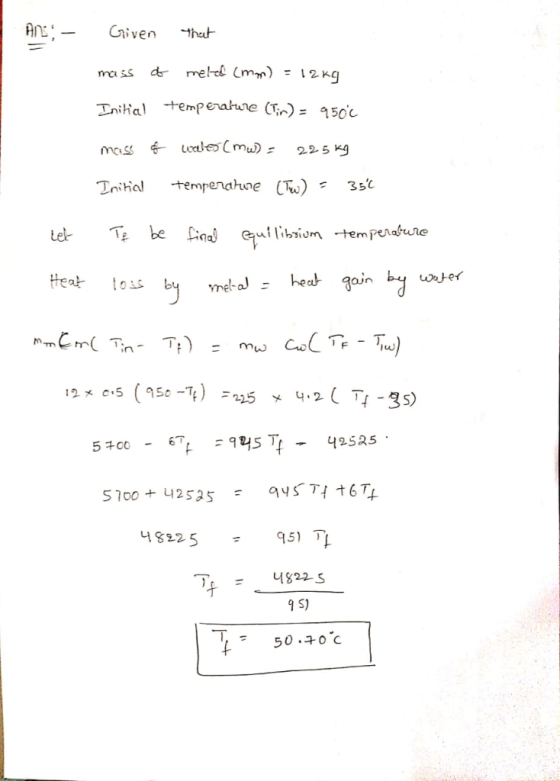

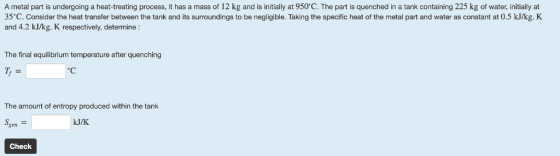

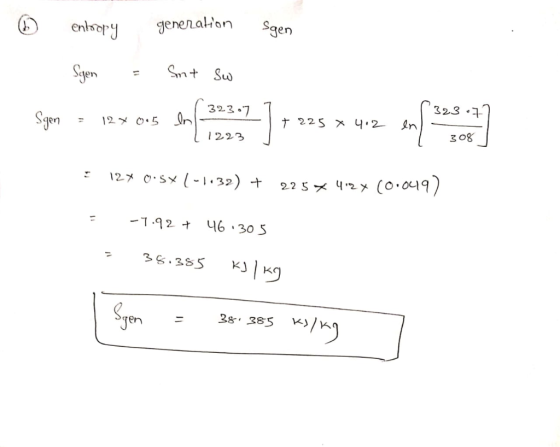

A metal part is undergoing a heat-treating process, it has a mass of 12 kg and is initially at 950∘C. The part is quenched in a tank containing 225 kg of water, initially at 35∘C. Consider the heat transfer between the tank and its surroundings to be negligible. Taking the specific heat of the metal part and water as constant at 0.5 kJ/kg.K and 4.2 kJ/kg.K respectively, determine : The final equilibrium temperature after quenching Tf= ∘C The amount of entropy produced within the tank Sgen= kJ/K
