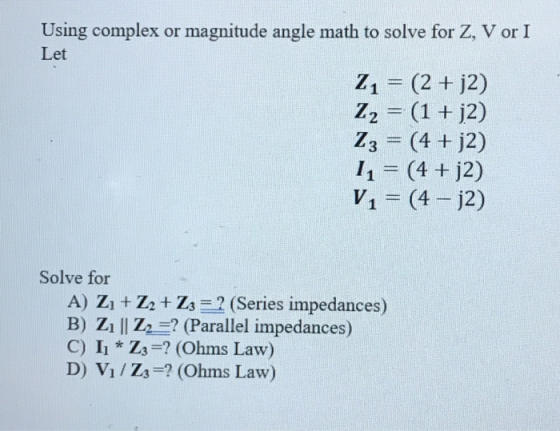

Using complex or magnitude angle math to solve for Z, V or I Let Z1 = (2 + j2) Zg = (1 + j2) Zg = (4 + j2) 11 = (4 + j2) Solv
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

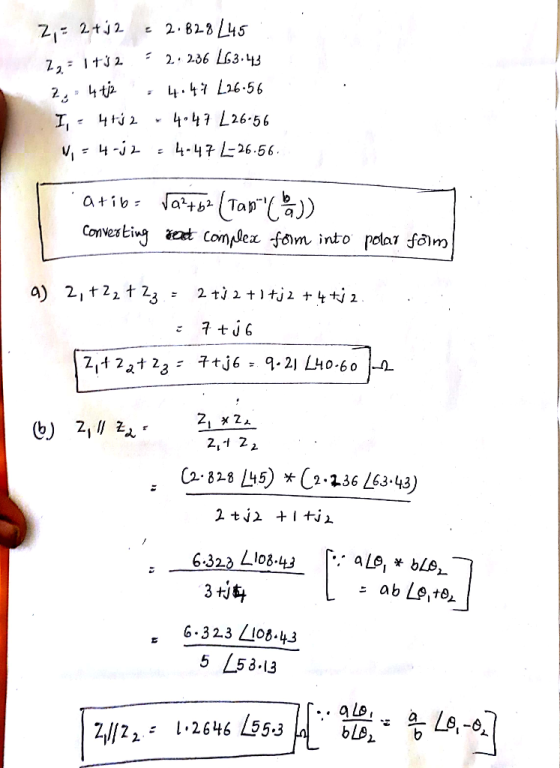

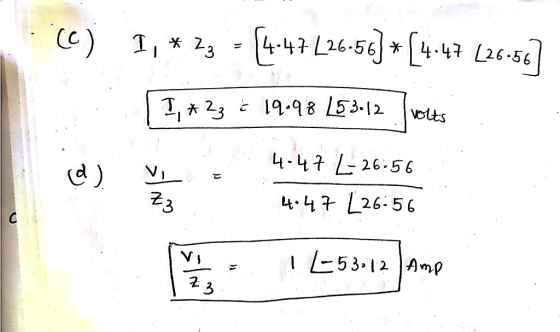

2+42 2.828 1.45 2. 236 LG3.4 2,= 1. 2..4tP . 4.4冫ム6.56 2,1 22 (2-828 145) C136 L63-43) 6.32.3 /lo6-4a 5 L,53-13(C) [4.47 L26-56] *[4.47 L26-56] Il * 23 4.47 L 26.56 4·47 L,26-5, 1に53-12 |Amp 3 굿 3

0 0
Add a comment
Know the answer?
Add Answer to:
Using complex or magnitude angle math to solve for Z, V or I Let Z1 =...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Given: Z1 = 4-j1.5 ohms; Z2 = 2+j4 ohms; Z3 = 2 ohms; 24 = 3...

    Given: Z1 = 4-j1.5 ohms; Z2 = 2+j4 ohms; Z3 = 2 ohms; 24 = 3 + j5 ohms. If the four impedances are connected in parallel, find the magnitude of equivalent impedance in ohms. (No need to include the phase angle, ONLY THE MAGNITUDE)

  • Let Z! = 3H4, Z2-5-2, Z,--3-12, Z4--10-j6, and Z5--6-3. 1. Calculate Z1 + Z2 in rectangular...

    Let Z! = 3H4, Z2-5-2, Z,--3-12, Z4--10-j6, and Z5--6-3. 1. Calculate Z1 + Z2 in rectangular form. 2. Calculate Z1 - Z2 in rectangular form. 3. Calculate Z3 + Z4 in polar form. 4. Calculate Za - Z5 in polar form. 5. Calculate Z1Z2-Z3 in rectangular form. 6. Find ZsZ7 in polar form. 7. Find Z7Zs in rectangular form. 8. Find ZsZs+Z7 in rectangular form Reduce the following to rectangular form. 10. Z1/Z2

  • solve no: 3.14 , 3.16, 3.19 please show each step and solve for beginners 120 Power...

    solve no: 3.14 , 3.16, 3.19 please show each step and solve for beginners 120 Power System Analysis 3.12. A single-phase system similar to that shown in Figure 3.11 has two transformers A-B a B-C connected by a line B feeding a load at the receiving end C. The ratings and parame ter values of the components are 500 V/1.5 kV, 9.6 kVA. leakage reactance 5 % 1.2 kV/120 V, 7.2 kVA, leakage reactance 4 % series impedance (0.5 +...
