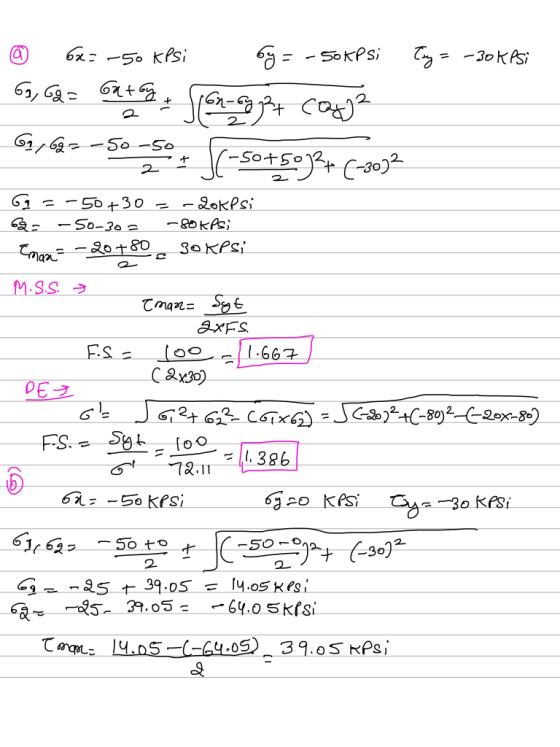

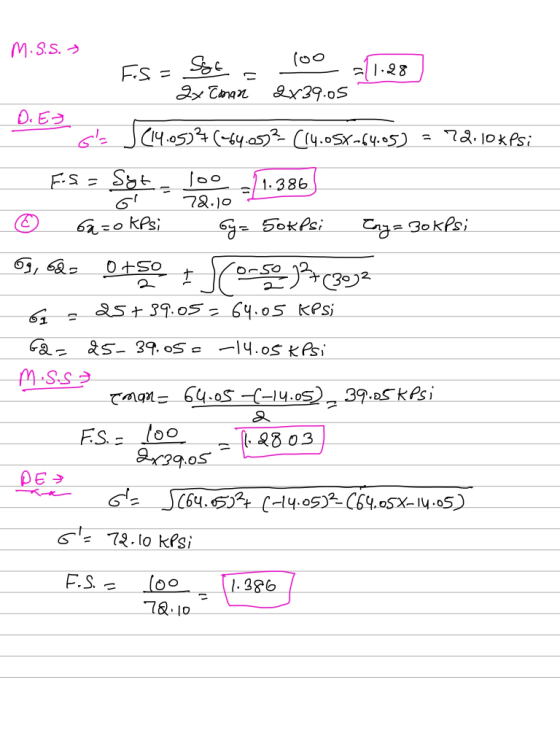

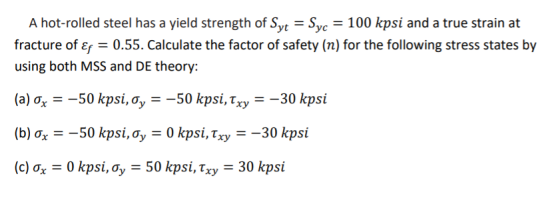

A hot-rolled steel has a yield strength of Syt = Syc = 100 kpsi and a...
A ductile hot-rolled steel bar has a minimum yield strength in tension and compression of Syt...
A ductile hot-rolled steel bar has a minimum yield strength in tension and compression of Syt = 60 kpsi and Syc = 75 kpsi. Using the ductile Coulomb-Mohr theory, determine the factor of safety for the states of plane stress. 0x = -21.8 kpsi, oy" -21.8 kpsi, and Txy=-16 kpsi The factor of safety is 2.455
1. A ductile hot rolled steel bar has minimum yield strength of 360 MPa. Using the...
1. A ductile hot rolled steel bar has minimum yield strength of 360 MPa. Using the distortion-energy and maximum-shear-stress theories, determine the factors of safety for the following plane stress states: (20 points) (a) Ox = 200 MPa, y = 120 MPa (b) x = 180 MPa, Txy = 150 MPa (c) Txy = 100 MPa
A brittle material has the properties Sut= 30 kpsi and Suc= 90 kpsi. Using the brittle-Coulomb-Mohr...
A brittle material has the properties Sut= 30 kpsi and Suc= 90 kpsi. Using the brittle-Coulomb-Mohr and modified-Mohr theories, determine the factor of safety for the following states of plane stress. Ox=-22 kpsi, Oy=-22 kpsi and Txy= = -15.5 kpsi The factor of safety from the brittle-Coulomb-Mohr theory is and the factor of safety from the modified-Mohr theory is
step by step please. A ductile hot rolled steel bar has minimum yield strength of 360...
step by step please.
A ductile hot rolled steel bar has minimum yield strength of 360 MPa. Using the distortion-energy and maximum-shear-stress theories, determine the factors of safety for the following plane stress states: (20 points) (a) 0x = 200 MPa, y = 120 MPa (b) x = 180 MPa, Txy = 150 MPa (c) Txy = 100 MPa
A) A ductile hot-rolled steel bar has yield strength in tension and compression of 400 MPa...
A) A ductile hot-rolled steel bar has yield strength in tension and compression of 400 MPa Define Maximum shear stress, and Maximum normal stress for the following stress distribution: ?,-200 Mpa and ?,-200 Mpa, and Txysl 00 Mpa (All the other stresses are set to zero). safety factor using distortion energy theory, Maximum Normal stress theory, and maximum shear stress theory B) For the above material and stress distribution, what is the
Please help with this mechanical engineering machine design homework. Please show all work! Thanks 1) Using...
Please help with this mechanical engineering machine design
homework. Please show all work! Thanks
1) Using typical values for strength of ASTM No. 40 cast iron, find the factor of safety corresponding to fracture by the maximum normal stress theory, the Coulomb-Mohr theory and the modified Mohr theory for each of the following stress states: (a) 0x = 10 ksi, oy = -4 ksi (b) Ox = 10 ksi, Txy = 4 ksi (c) Ox = -2 ksi, oy =...
An AISI steel has a yield strength, Sy = 300 Mpa. Plot the failure locus and...
An AISI steel has a yield strength, Sy = 300 Mpa. Plot the failure locus and the load line in the attached diagram. Given that - OA Ox = 210 MPa, Oy = 160 MPa, and Txy -45 MPa Distortion Energy (Von Mise) S Hint: Maximum Shear Stress Oxt Oy OB ОА, Ов + + tzy Failure Theory Diagram 1.jpg Instructions: Download the image (Failure Theory Diagram 1.jpg), complete the d
A 1045 hot rolled steel rod undergoes axial cyclic loading from a minimum stress of 2...
A 1045 hot rolled steel rod undergoes axial cyclic loading from a minimum stress of 2 kpsi to a maximum of 10 kpsi. The rod has a hole in the center of bar, with a Kt 1.7, and notch sensitivity factor 0.9. The yield strength of bar is 45 kpsi, ultimate strength 82 kpsi, fully endurance limit of 20 kpsi, fatigue strength fraction 0.85. 1. a. Using modified goodman criteria, find FOS b. lfinfinite life is not predicted estimate the...
A UNS G1030 steel shaft, heat treated to a minimum yield strength of 75 kpsi has...
A UNS G1030 steel shaft, heat treated to a minimum yield strength of 75 kpsi has a diameter of 1- 7/16 in. The shaft uniformly rotates at 600 rpm and transmits 40 hp through a gear. Find the dimensions of an appropriate key, made from the shaft material, for the gear-shaft attachment. Use a safety factor of 2.8. Your analysis should include failure due to 2 different stress type.
A brittle material has the properties Sut = 30kpsi and Sue = 90kpsi. Using the Maximum...
A brittle material has the properties Sut = 30kpsi and Sue = 90kpsi. Using the Maximum Normal Stress theory, determine the factor of safety for the following states of plane stress. (a) Ox = 20kpsi, Oy = 10kpsi, Txy = -15kpsi (b) Ox = 15kpsi, oy = -25kpsi (c) Ox = 10kpsi, oy = -40kpsi (d) Ox = -20kpsi, oy = -20kpsi, Txy = -40 (1) Draw the stress element Plot the failure diagram in the o-plane Estimate the factor...
A ductile hot-rolled steel bar has a minimum yield strength in tension and compression of Syt = 60 kpsi and Syc = 75 kpsi. Using the ductile Coulomb-Mohr theory, determine the factor of safety for the states of plane stress. 0x = -21.8 kpsi, oy" -21.8 kpsi, and Txy=-16 kpsi The factor of safety is 2.455
1. A ductile hot rolled steel bar has minimum yield strength of 360 MPa. Using the distortion-energy and maximum-shear-stress theories, determine the factors of safety for the following plane stress states: (20 points) (a) Ox = 200 MPa, y = 120 MPa (b) x = 180 MPa, Txy = 150 MPa (c) Txy = 100 MPa
A brittle material has the properties Sut= 30 kpsi and Suc= 90 kpsi. Using the brittle-Coulomb-Mohr and modified-Mohr theories, determine the factor of safety for the following states of plane stress. Ox=-22 kpsi, Oy=-22 kpsi and Txy= = -15.5 kpsi The factor of safety from the brittle-Coulomb-Mohr theory is and the factor of safety from the modified-Mohr theory is
step by step please.
A ductile hot rolled steel bar has minimum yield strength of 360 MPa. Using the distortion-energy and maximum-shear-stress theories, determine the factors of safety for the following plane stress states: (20 points) (a) 0x = 200 MPa, y = 120 MPa (b) x = 180 MPa, Txy = 150 MPa (c) Txy = 100 MPa
A) A ductile hot-rolled steel bar has yield strength in tension and compression of 400 MPa Define Maximum shear stress, and Maximum normal stress for the following stress distribution: ?,-200 Mpa and ?,-200 Mpa, and Txysl 00 Mpa (All the other stresses are set to zero). safety factor using distortion energy theory, Maximum Normal stress theory, and maximum shear stress theory B) For the above material and stress distribution, what is the
Please help with this mechanical engineering machine design
homework. Please show all work! Thanks
1) Using typical values for strength of ASTM No. 40 cast iron, find the factor of safety corresponding to fracture by the maximum normal stress theory, the Coulomb-Mohr theory and the modified Mohr theory for each of the following stress states: (a) 0x = 10 ksi, oy = -4 ksi (b) Ox = 10 ksi, Txy = 4 ksi (c) Ox = -2 ksi, oy =...
An AISI steel has a yield strength, Sy = 300 Mpa. Plot the failure locus and the load line in the attached diagram. Given that - OA Ox = 210 MPa, Oy = 160 MPa, and Txy -45 MPa Distortion Energy (Von Mise) S Hint: Maximum Shear Stress Oxt Oy OB ОА, Ов + + tzy Failure Theory Diagram 1.jpg Instructions: Download the image (Failure Theory Diagram 1.jpg), complete the d
A 1045 hot rolled steel rod undergoes axial cyclic loading from a minimum stress of 2 kpsi to a maximum of 10 kpsi. The rod has a hole in the center of bar, with a Kt 1.7, and notch sensitivity factor 0.9. The yield strength of bar is 45 kpsi, ultimate strength 82 kpsi, fully endurance limit of 20 kpsi, fatigue strength fraction 0.85. 1. a. Using modified goodman criteria, find FOS b. lfinfinite life is not predicted estimate the...
A brittle material has the properties Sut = 30kpsi and Sue = 90kpsi. Using the Maximum Normal Stress theory, determine the factor of safety for the following states of plane stress. (a) Ox = 20kpsi, Oy = 10kpsi, Txy = -15kpsi (b) Ox = 15kpsi, oy = -25kpsi (c) Ox = 10kpsi, oy = -40kpsi (d) Ox = -20kpsi, oy = -20kpsi, Txy = -40 (1) Draw the stress element Plot the failure diagram in the o-plane Estimate the factor...
