If a given 6 meter diameter propeller at constant RPM and fluid properties consumes 20KW of...

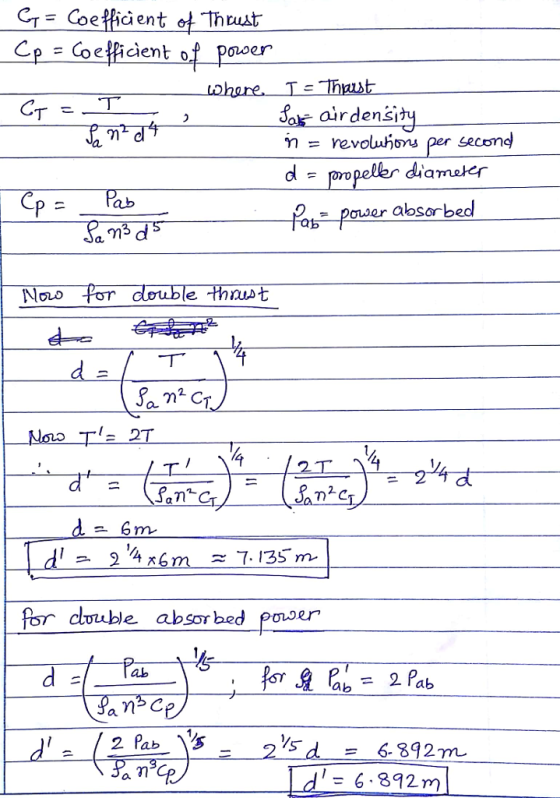

If a given 6 meter diameter propeller at constant RPM and fluid properties consumes 20KW of power, what diameter of shape similar propeller at identical operating conditions (this means constant Cp and Ct) would double its thrust? What diameter would double its power requirement?
Homework Answers
