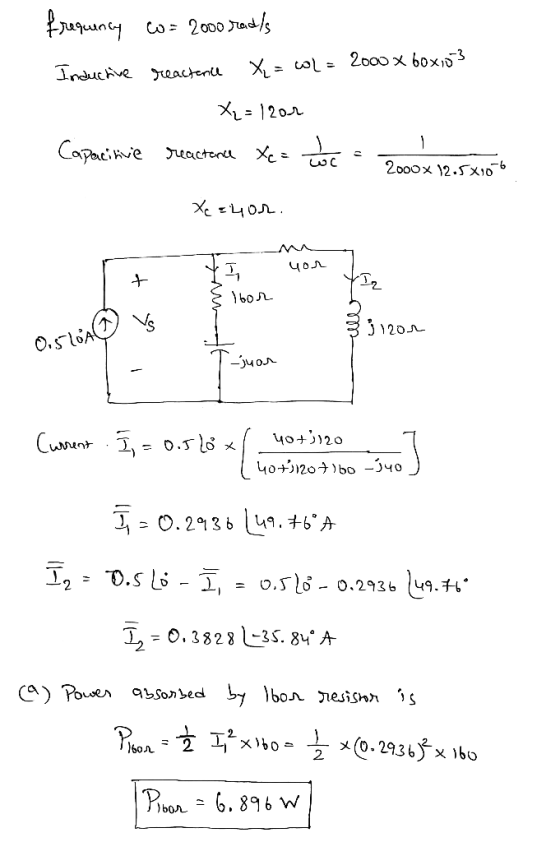

![(b) Power absorbed by your resistor is ... - 1 1 x = (9.3333 ý xuo Puor = 2.931W] C) Voltage across Source is Vs - 5 (150–540](http://img.homeworklib.com/questions/50969490-b880-11ea-b95a-6d889d183e1e.png?x-oss-process=image/resize,w_560)
Add Answer to:

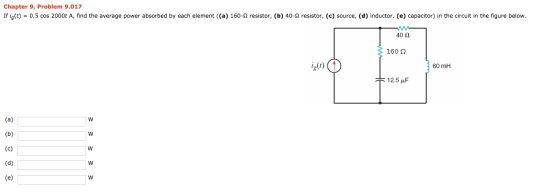

Chapter 9, Problem 9.017 If la(t) = 0.5 cos 2000t A, find the average power absorbed...
If ig(t) 0.5 cos 2000t A, find the average power absorbed by each element in the...
If ig(t) 0.5 cos 2000t A, find the average power absorbed by each element in the circuit 40 Ω 130 Ω 60 mH 125pF
Please show all work In the circuit shown below, find the average power net absorbed by...
Please show all work
In the circuit shown below, find the average power net absorbed by each element (negative if power supplied). j50 12 M 300 un 20020° V(+ -10 12 Voltage Source: 480 W Voltage Source: 240 W Voltage Source: OW Voltage Source:-240 W Voltage Source: -480 W Resistor: 480 W Resistor: 240 W Resistor: OW Resistor: -240 W Resistor: -480 W Inductor: 480 W Inductor: 240 W Inductor:OW Inductor:-240 W Inductor: -480 W Capacitor: 480 W Capacitor: 240...
Problem 2 (20 pts. Consider the following circuit. Use phasor method to find the following a....
Problem 2 (20 pts. Consider the following circuit. Use phasor method to find the following a. i(t). b. iz(t). c. Average power absorbed by the controlled source. d. Average power absorbed by the independent source. e. Average power absorbed by the inductor. f. Average power absorbed by the capacitor. g. Average power absorbed by the resistor. 322 500 pF H4 10 cos 103t v ففف 4 mH I + 2i1
vs(t) = A cos(1000t + B1) (a) Find the instantaneous power supplied by the power supply...
vs(t) = A cos(1000t + B1) (a) Find the instantaneous power supplied by the power supply p = A2V3+ A3 cos(2000t + B3) with-180° < B3 S 180 (b) Find the instantaneous power received by the inductor p = A4V3 + A5 cos(2000t + B5) with-180° < B5 < 180 Vs RV3 Given Variables: A1:4V B1:30 degrees R:2 ohm C: 500 uF L:2 mH
Question 1 Given the network in the figure below, find (a) the power supplied by the...
Question 1 Given the network in the figure below, find (a) the power supplied by the source and the average power absorbed by each element (b) 9-2 resistor, (c) 2-2 resistor, (d) inductor, (e) capacitor. 4/30° A 3 0 -ji ? Find the power supplied at t 0 Click if you would like to Show Work for this question: Open Show Work
2. (a) Find the average power absorbed by the 232 resistor b) Find the average power...
2. (a) Find the average power absorbed by the 232 resistor b) Find the average power absorbed by the 352 resistor. c) Find the average power delivered by the source. (d) Should the result at part (c) equal the sum of the results at parts (a) and (b)? Why or why not? 2S2 3? 24sin(5001) V C 200 ?F 10 mH Sample answers: (b) 18.24 W.
Part A Find the average power delivered by the ideal current source in the circuit in...
Part A Find the average power delivered by the ideal current source in the circuit in the figure if ig-4 cos 5000t mA.(Figure 1) Express your answer with the appropriate units. P. Value Units igure 1 of 1 Submit Request Answer Provide Feedback 500 Ω 1000 Ω 100 mH 160 nF
Chapter 9, Problem 9.026 Determine the average power absorbed by the 26-2 resistor in the network...
Chapter 9, Problem 9.026 Determine the average power absorbed by the 26-2 resistor in the network shown in the figure below 2 02 -4? 2/0° A the tolerance is +/-2%
1. Find the average power absorbed by the 50-2 resistor where c10't A. 20іх 1x 20...
1. Find the average power absorbed by the 50-2 resistor where c10't A. 20іх 1x 20 mH 50 S2 1s 40 HF 10 2
Chapter 9, Problem 9.026 Determine the average power absorbed by the 38-2 resistor in the network...
Chapter 9, Problem 9.026 Determine the average power absorbed by the 38-2 resistor in the network shown in the figure below. w . 20 - 42 12/0°v {j20 02/0ºA 380
If ig(t) 0.5 cos 2000t A, find the average power absorbed by each element in the circuit 40 Ω 130 Ω 60 mH 125pF
Please show all work
In the circuit shown below, find the average power net absorbed by each element (negative if power supplied). j50 12 M 300 un 20020° V(+ -10 12 Voltage Source: 480 W Voltage Source: 240 W Voltage Source: OW Voltage Source:-240 W Voltage Source: -480 W Resistor: 480 W Resistor: 240 W Resistor: OW Resistor: -240 W Resistor: -480 W Inductor: 480 W Inductor: 240 W Inductor:OW Inductor:-240 W Inductor: -480 W Capacitor: 480 W Capacitor: 240...
Problem 2 (20 pts. Consider the following circuit. Use phasor method to find the following a. i(t). b. iz(t). c. Average power absorbed by the controlled source. d. Average power absorbed by the independent source. e. Average power absorbed by the inductor. f. Average power absorbed by the capacitor. g. Average power absorbed by the resistor. 322 500 pF H4 10 cos 103t v ففف 4 mH I + 2i1
vs(t) = A cos(1000t + B1) (a) Find the instantaneous power supplied by the power supply p = A2V3+ A3 cos(2000t + B3) with-180° < B3 S 180 (b) Find the instantaneous power received by the inductor p = A4V3 + A5 cos(2000t + B5) with-180° < B5 < 180 Vs RV3 Given Variables: A1:4V B1:30 degrees R:2 ohm C: 500 uF L:2 mH
Question 1 Given the network in the figure below, find (a) the power supplied by the source and the average power absorbed by each element (b) 9-2 resistor, (c) 2-2 resistor, (d) inductor, (e) capacitor. 4/30° A 3 0 -ji ? Find the power supplied at t 0 Click if you would like to Show Work for this question: Open Show Work
2. (a) Find the average power absorbed by the 232 resistor b) Find the average power absorbed by the 352 resistor. c) Find the average power delivered by the source. (d) Should the result at part (c) equal the sum of the results at parts (a) and (b)? Why or why not? 2S2 3? 24sin(5001) V C 200 ?F 10 mH Sample answers: (b) 18.24 W.
Part A Find the average power delivered by the ideal current source in the circuit in the figure if ig-4 cos 5000t mA.(Figure 1) Express your answer with the appropriate units. P. Value Units igure 1 of 1 Submit Request Answer Provide Feedback 500 Ω 1000 Ω 100 mH 160 nF
Chapter 9, Problem 9.026 Determine the average power absorbed by the 26-2 resistor in the network shown in the figure below 2 02 -4? 2/0° A the tolerance is +/-2%
1. Find the average power absorbed by the 50-2 resistor where c10't A. 20іх 1x 20 mH 50 S2 1s 40 HF 10 2
Chapter 9, Problem 9.026 Determine the average power absorbed by the 38-2 resistor in the network shown in the figure below. w . 20 - 42 12/0°v {j20 02/0ºA 380
