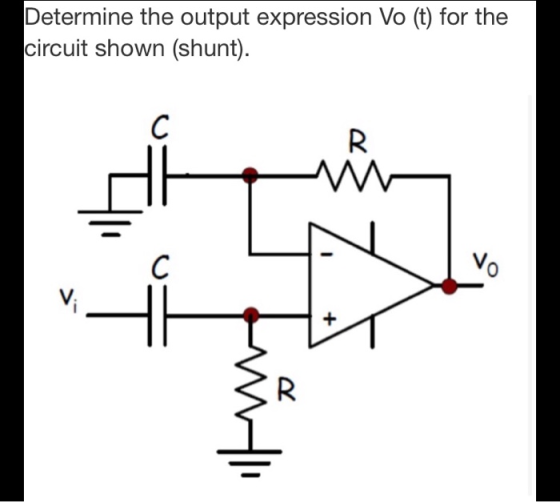

Determine the output expression Vo (t) for the circuit shown (shunt). +7

Question

Question

engineering Electrical-Engineering

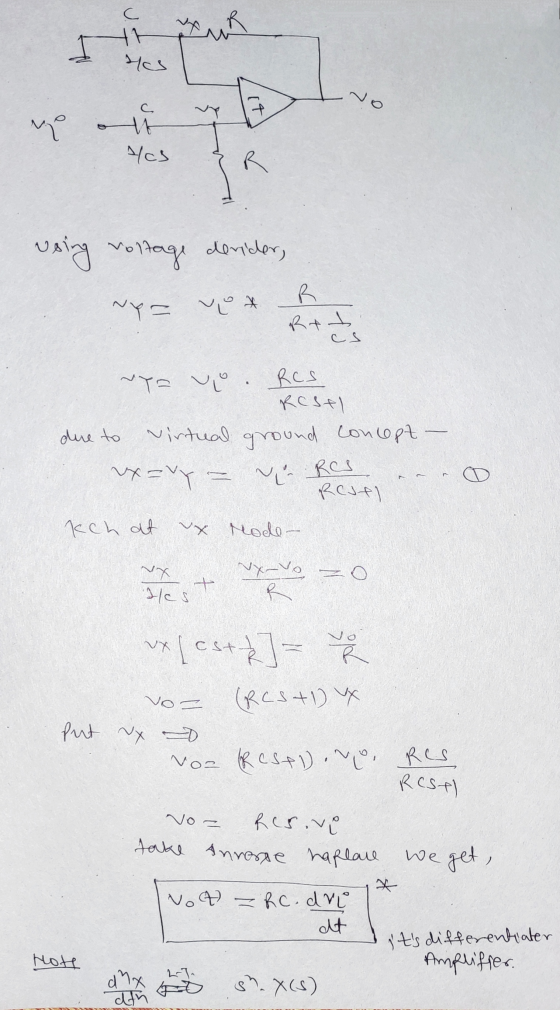

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions
