Question

Computer Architecture

Project Description：

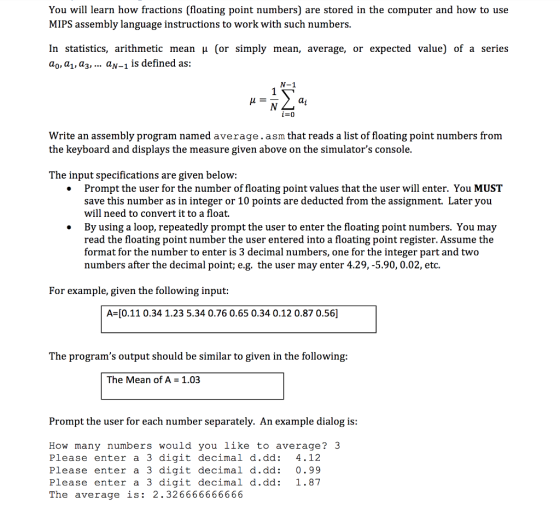

You will learn how fractions (floating point numbers) are stored in the computer and how to use MIPS assembly language instructions to work with such numbers In statistics, arithmetic mean μ (or simply mean, average, or expected value) of a series ao» a1, аз, aN-1 is defined as: Write an assembly program named average.asm that reads a list of floating point numbers from the keyboard and displays the measure given above on the simulator's console The input specifications are given below . Prompt the user for the number of floating point values that the user will enter. You MUST save this number as in integer or 10 points are deducted from the assignment. Later you will need to convert it to a float. By using a loop, repeatedly prompt the user to enter the floating point numbers. You may read the floating point number the user entered into a floating point register. Assume the format for the number to enter is 3 decimal numbers, one for the integer part and two numbers after the decimal point; e.g. the user may enter 4.29,-5.90, 0.02, etc. » For example, given the following input: A [0.11 0.34 1.23 5.34 0.76 0.65 0.34 0.12 0.87 0.56] The program's output should be similar to given in the following The Mean of A 1.03 Prompt the user for each number separately. An example dialog is How many numbers would you like to average? 3 Please enter a 3 digit decimal d.dd: 4.12 Please enter a 3 digit decimal d.dd: 0.99 Please enter a 3 digit decimal d.dd: 1.87 The average is: 2.326666666666

farh-to-cel.asm ：

# Revised and added code taken from Hennesey and Patterson 5th edition
# to work with this simulator.
#
# Prompts a user to enter a Fahrenheit temperature as a floating point.
# Displays the converted temperature in Celcius.
# 10/28/2015

.data
const5:         .float 5.0    # store a floating point constant 5.0
const9:         .float 9.0
const32:        .float 32.0
            .align 2   # align the next string on a word boundary
                .space 100
prompt:     .asciiz  "Please enter Farh as a float:\n"
                .align 2   #align next prompt on a word boundary

constfahr:  .float 1   # will hold the user's input

                .text
                .globl  main
main:
###############################################################
# system call to prompt user
                la $a0,prompt           # system call 4 for print string needs address of string in $a0
                li $v0,4                        # system call 4 for print string needs 4 in $v0
                syscall
###############################################################
# system call to store user input of a float into register $f0
                li $v0,6                     # system call 6 for reading a float is required in $v0
                syscall              # the user's input is placed in register $f0
###############################################################
# do the conversion from Fahrenheit to Celcius
                mov.s $f12, $f0              # load the value wanting to convert from Fahr to Celcius
f2c:    lwc1 $f16, const5($zero)     #load 5.0
                lwc1 $f18, const9($zero)     # load 9.0
                div.s $f16, $f16, $f18       # $f16 =  5.0 / 9.0
                lwc1 $f18, const32($zero)    # load 32.0
                sub.s $f18, $f12, $f18       #  $f18 = fahr - 32
                mul.s $f0, $f16, $f18        # $f0 gets the result of ((5.0/9.0)*(fahr - 32.0))
# http://www.h-schmidt.net/FloatConverter/IEEE754.html  can be used to convert the result in $f0
# from single precision float to a decimal number (we should know how to do by hand too!)

###############################################################
# system call to print the float in register $f12
        mov.s $f12, $f0
                li $v0,2                     # system call 2 to print a float is required in $v0
        syscall              # the user's input is placed in register $f0
###############################################################
# Exit gracefully
         li   $v0, 10       # system call for exit
         syscall            # close file
###############################################################

Answer 1

.data
prompt1: .asciiz "Daniel Bevilacqua's Floating Point Average Calculator \n"
prompt2: .asciiz "How many numbers would you like to average? "
prompt3: .asciiz "Please enter a 3 digit decimal d.dd: "
prompt4:   .asciiz "The average is: "

newline: .asciiz "\n"
               .text
          .globl main
main:
        la      $a0, prompt1    # prints prompt1
        li      $v0, 4
        syscall

        la      $a0, prompt2    # prints prompt2
        li      $v0, 4
        syscall

        li      $v0, 5          # reads in an integer (number of floats to average)
        syscall

        add $s0, $v0, $zero   # Stores number of floats

        mtc1 $v0, $f1       # puts user input, $v0 into $f1
        cvt.s.w $f1, $f1   # Convert from integer into single precision float point

        jal dataCollect

        jal averageLoop

   # system call to exit the program
        li $v0, 10
        syscall

dataCollect:
   bge $t0, $s0, exit

   la      $a0, prompt3   # prints prompt3
        li      $v0, 4
        syscall

        li      $v0, 6            # read the float the user input
        syscall

   add.s $f2, $f2, $f0   # adds float inputs
   addi $t0, $t0, 1
   j dataCollect
exit:
   jr $ra
averageLoop:
   div.s $f3, $f2, $f1

   la      $a0, newline    # prints an endl for beauty
        li      $v0, 4
        la      $a0, prompt4    # prints the average prompt for user understanding
        li      $v0, 4
        syscall

   mov.s $f12, $f3     # loads the final answer to be displayed
   li $v0, 2
   syscall

   jr $ra
