Homework Answers
Add Answer to:
Reinforced concrete

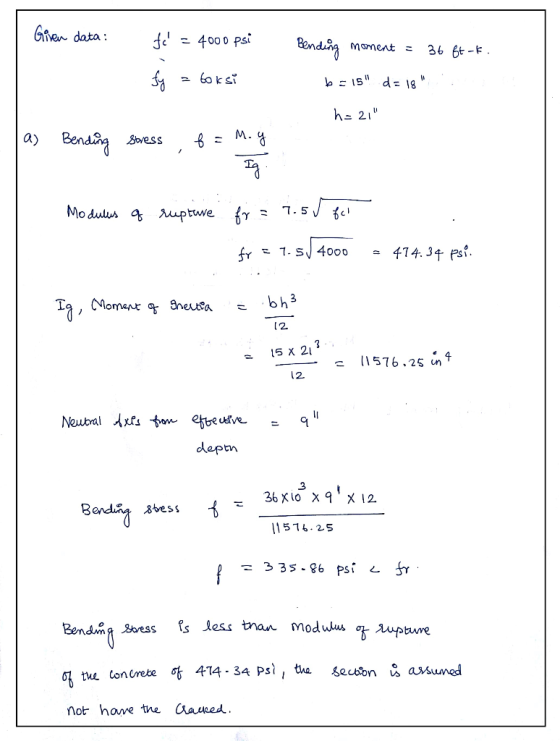

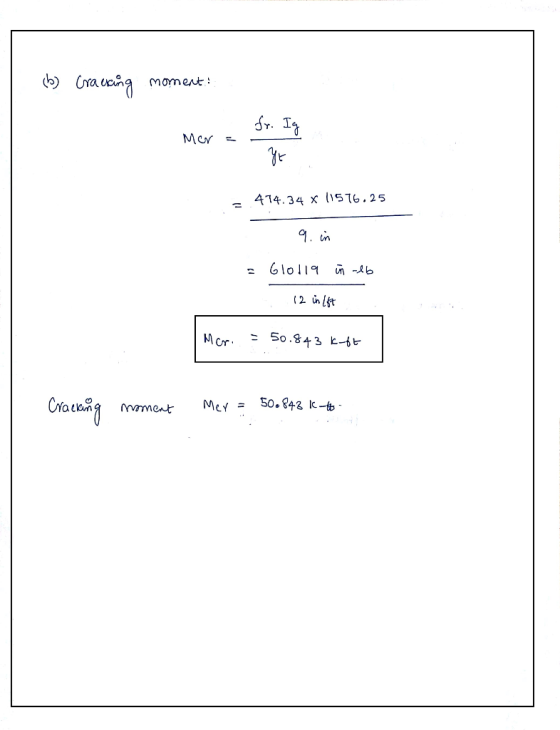

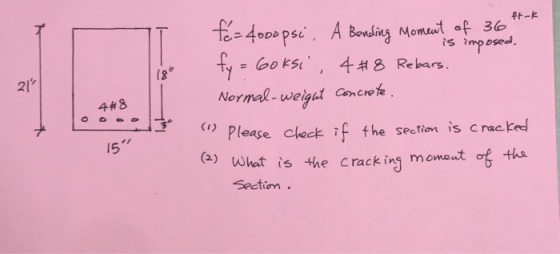

21 4#8 ft-k psi. A Bending Moment of 36 is imposed fy= Goksi, 4#8...
In the following reinforced concrete beam, bending moment is 150kip-ft and Ec = 3.75x10^6psi Es =...
In the following reinforced concrete beam, bending moment is
150kip-ft and Ec = 3.75x10^6psi Es = 30x10^6psi determine (a) the
stress in the steel (b) the madimum stress in the concrete
This is what I've done so far. I think the next step is to
calculate the distance of neutral axis from the bottom section
which should end up in a quadratic equation to solve for x.
Q4) In the following reinforced concrete beam, bending moment is 150kip-ft and E=3.75x10°Es=30x10ʻpsi...
Problem 2. A concrete beam is reinforced by three steel rebars placed as shown. The modulus...
Problem 2. A concrete beam is reinforced by three steel rebars placed as shown. The modulus of elasticity is 3x106 psi for concrete and 29x106 psi for steel. Find the tensile stress in rebars and maximum compressive stress in concrete under an external bending moment of (a) 80 kip.in and (b) 240 kip.in. Given the compressive strength of concrete fe' = 3 ksi and yield stress of rebars fy = 60 ksi, discuss the state of crack in concrete and...
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment...
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment of 200 kip ft. Knowing that the modulus of elasticity for the concrete and the steel are respectively Ec= 3.75 X 10 psi and Es = 30 x 10 psi, determine the tensile stress in [ksh] that develops in the steel bars. 20 in 1 in diameter 72.5 in 12 in-
Reinforced concrete Problem #1 (40 points): A beam with x-section shown in the figure is made...
Reinforced concrete
Problem #1 (40 points): A beam with x-section shown in the figure is made out of concrete with compressive strength fc = 4000 psi and the steel reinfrocemnt is of Grade 60 (fy 60000psi). Determine 1 The maximum compressive stress in the concrete f and the tensils stress in the steel , if the section is subjected to a bending moment of 130 ft-k (assume n 8) N.A._ 23" 23-х 4 #10 (5.06 in. 3" 18"
Calculate the maximum flexural stress of concrete in psi based on the following section. The location...
Calculate the maximum flexural stress of concrete in psi based on the following section. The location of the neutral axis is 10 inches from the top, the bending moment is 120 kip-ft, and the cracked moment of inertia is 17,250 in 4. 71 8 #9 M = 120 ft-k n = 9
Q3 (50 pts): Design the concrete slab shown below for bending moment: Wu= 0.13 k/ft including...
Q3 (50 pts): Design the concrete slab shown below for bending moment: Wu= 0.13 k/ft including self weight 12' fe-4,000 psi fy=60 ksi
What is the ultimate moment capacity (Mu) of a reinforced concrete beam with b = 20",...
What is the ultimate moment capacity (Mu) of a reinforced concrete beam with b = 20", d = 46", 4-#8 bottom bars, f'c = 4000 psi, fy = 60,000 Psi? Assume depth of stress block a = 9.2" 588.7 ft-kip 603.1 ft-kip 670.1 ft-kip 704.8 ft-kip
Q3 (50 pts): Design the concrete slab shown below for bending moment: Wu=0.13 k/ft including self...
Q3 (50 pts): Design the concrete slab shown below for bending moment: Wu=0.13 k/ft including self weight 12' fe= 4,000 psi fy= 60 ksi
Q3 (50 pts): Design the concrete slab shown below for bending moment: Wu=0.13 k/ft including self...
Q3 (50 pts): Design the concrete slab shown below for bending moment: Wu=0.13 k/ft including self weight 12 f'= 4,000 psi fy=60 ksi
I designed and detailed the beam in problem 3 as you see. Redesign the reinforced concrete...
I designed and detailed the beam in problem 3 as you see.
Redesign the reinforced concrete beam of problem 3, If the value of
factored bending moment increased to 1,600 k.ft where the section
needs to be designed as a doubly reinforced beam.
3) Design and detail the reinforced concrete beam shown below if it is subjected to a factored bending moment of 1,100 k.ft f'=4,800psi fx=60 ksi. Include skin steel. 36" 15" 2#6 36 24 kino f's = 4800...
In the following reinforced concrete beam, bending moment is
150kip-ft and Ec = 3.75x10^6psi Es = 30x10^6psi determine (a) the
stress in the steel (b) the madimum stress in the concrete
This is what I've done so far. I think the next step is to
calculate the distance of neutral axis from the bottom section
which should end up in a quadratic equation to solve for x.
Q4) In the following reinforced concrete beam, bending moment is 150kip-ft and E=3.75x10°Es=30x10ʻpsi...
Problem 2. A concrete beam is reinforced by three steel rebars placed as shown. The modulus of elasticity is 3x106 psi for concrete and 29x106 psi for steel. Find the tensile stress in rebars and maximum compressive stress in concrete under an external bending moment of (a) 80 kip.in and (b) 240 kip.in. Given the compressive strength of concrete fe' = 3 ksi and yield stress of rebars fy = 60 ksi, discuss the state of crack in concrete and...
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment of 200 kip ft. Knowing that the modulus of elasticity for the concrete and the steel are respectively Ec= 3.75 X 10 psi and Es = 30 x 10 psi, determine the tensile stress in [ksh] that develops in the steel bars. 20 in 1 in diameter 72.5 in 12 in-
Reinforced concrete
Problem #1 (40 points): A beam with x-section shown in the figure is made out of concrete with compressive strength fc = 4000 psi and the steel reinfrocemnt is of Grade 60 (fy 60000psi). Determine 1 The maximum compressive stress in the concrete f and the tensils stress in the steel , if the section is subjected to a bending moment of 130 ft-k (assume n 8) N.A._ 23" 23-х 4 #10 (5.06 in. 3" 18"
Calculate the maximum flexural stress of concrete in psi based on the following section. The location of the neutral axis is 10 inches from the top, the bending moment is 120 kip-ft, and the cracked moment of inertia is 17,250 in 4. 71 8 #9 M = 120 ft-k n = 9
Q3 (50 pts): Design the concrete slab shown below for bending moment: Wu= 0.13 k/ft including self weight 12' fe-4,000 psi fy=60 ksi
What is the ultimate moment capacity (Mu) of a reinforced concrete beam with b = 20", d = 46", 4-#8 bottom bars, f'c = 4000 psi, fy = 60,000 Psi? Assume depth of stress block a = 9.2" 588.7 ft-kip 603.1 ft-kip 670.1 ft-kip 704.8 ft-kip
Q3 (50 pts): Design the concrete slab shown below for bending moment: Wu=0.13 k/ft including self weight 12' fe= 4,000 psi fy= 60 ksi
Q3 (50 pts): Design the concrete slab shown below for bending moment: Wu=0.13 k/ft including self weight 12 f'= 4,000 psi fy=60 ksi
I designed and detailed the beam in problem 3 as you see.
Redesign the reinforced concrete beam of problem 3, If the value of
factored bending moment increased to 1,600 k.ft where the section
needs to be designed as a doubly reinforced beam.
3) Design and detail the reinforced concrete beam shown below if it is subjected to a factored bending moment of 1,100 k.ft f'=4,800psi fx=60 ksi. Include skin steel. 36" 15" 2#6 36 24 kino f's = 4800...
