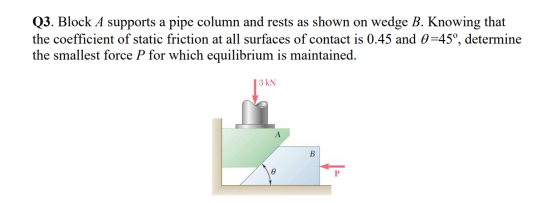

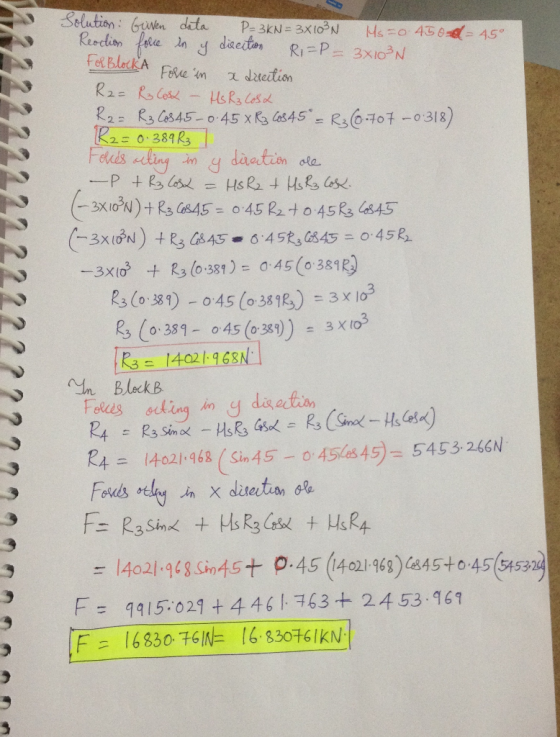

Q3. Block A supports a pipe column and rests as shown on wedge B. Knowing that...
4. Block A supports a pipe column and rests as shown on wedge B. Knowing that...
4. Block A supports a pipe column and rests as shown on wedge B. Knowing that the coefficient of static friction at all surfaces of contact is 0.15 and that 0=45°, determine the smallest force P required to raise block A. (20 pts) 700 N A B e P
4. Block A supports a pipe column and rests as shown on wedge B. Knowing that...
4. Block A supports a pipe column and rests as shown on wedge B. Knowing that the coefficient of static friction at all surfaces of contact is 0.15 and that 0=45°, determine the smallest force P required to raise block A. (20 pts) 700 N А B e P
Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be...
Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Block A supports a pipe column and rests as shown on wedge B. The coefficient of static friction at all surfaces of contact is 0.25 and O= 45°. Assume the wedges are massless. w A B P Determine the smallest force P for which equilibrium is maintained. Given: W= 5 kN. The smallest force for which equilibrium is...
PLEASE SHOW ALL WORK STEP-BY-STEP AS MUCH AS POSSIBLE 0.75 in 0.75 in. 8.71 A wedge...
PLEASE SHOW ALL WORK STEP-BY-STEP AS MUCH AS POSSIBLE
0.75 in 0.75 in. 8.71 A wedge A of negligible weight is to be driven between two 100- ib blocks B and C resting on a horizontal surface. Knowing that the coeffi- cient of static friction at all surfaces of contact is 0.35, determine the smallest force P required to start moving the wedge (a) if the blocks are equally free to move, (b) if block C is securely bolted to...
A block of mass 20kg rests on a wedge (θ=30∘) as shown in the figure below....
A block of mass 20kg rests on a wedge (θ=30∘) as shown in the figure below. The two objects move to the right in such a way that the block doesn't slide up or down the wedge. The coefficient of static friction between the block and the wedge is 0.35. what is the minimum and maximum acceleration of the two objects?
The machine part ABC is supported by a frictionless hinge at B and a 20° wedge at C. Knowing that the static coefficient of friction at both surfaces of the wedge is 0.3. Determine: (a) the force...
The machine part ABC is supported by a frictionless hinge at B and a 20° wedge at C. Knowing that the static coefficient of friction at both surfaces of the wedge is 0.3. Determine: (a) the force P required to move the wedge. (b) The components of the corresponding reaction at B (c). Draw the normal, shear and moment diagrams [40 pts 5. 1800N A 350mm 10000 N/m 400mm 600mm
The machine part ABC is supported by a frictionless hinge...
0.50. Some jerk controls the height of block B by moving wedge A. The coefficient of...
0.50. Some jerk controls the height of block B by moving wedge A. The coefficient of friction between all surfaces of contact is 335 kg Determine the magnitude of horizontal force P in newtons required to raise block B. (Neglect the weight of the wedge A.)
A 10° wedge is to be forced under the end B of the 10-lb rod AB....
A 10° wedge is to be forced under the end B of the
10-lb rod AB. Knowing that the coefficient of static
friction is 0.35 between the wedge and the rod and 0.25 between the
wedge and the floor, determine the smallest force
P required to raise end B of the
rod.
1 ft
The 50-lb block A and the 25-lb block B are supported by an incline that is...
The 50-lb block A and the 25-lb block B are supported by an incline that is held in the position shown. Knowing that the coefficient of static friction is 0.15 between all surfaces of contact, determine the value of ? for which motion is impending. Fig. P8.12
Wedge B is used to lift crate A. Crate A has a mass of 200 kg,...
Wedge B is used to lift crate A. Crate A has a mass of 200 kg, and the mass of wedge B is negligible. The coefficient of static friction between all contact surfaces is us 0.30. Determine the force P required to begin moving the crate upward. (Ans. P 1,980 N) 3. 15°
4. Block A supports a pipe column and rests as shown on wedge B. Knowing that the coefficient of static friction at all surfaces of contact is 0.15 and that 0=45°, determine the smallest force P required to raise block A. (20 pts) 700 N A B e P
4. Block A supports a pipe column and rests as shown on wedge B. Knowing that the coefficient of static friction at all surfaces of contact is 0.15 and that 0=45°, determine the smallest force P required to raise block A. (20 pts) 700 N А B e P
Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Block A supports a pipe column and rests as shown on wedge B. The coefficient of static friction at all surfaces of contact is 0.25 and O= 45°. Assume the wedges are massless. w A B P Determine the smallest force P for which equilibrium is maintained. Given: W= 5 kN. The smallest force for which equilibrium is...
PLEASE SHOW ALL WORK STEP-BY-STEP AS MUCH AS POSSIBLE
0.75 in 0.75 in. 8.71 A wedge A of negligible weight is to be driven between two 100- ib blocks B and C resting on a horizontal surface. Knowing that the coeffi- cient of static friction at all surfaces of contact is 0.35, determine the smallest force P required to start moving the wedge (a) if the blocks are equally free to move, (b) if block C is securely bolted to...
The machine part ABC is supported by a frictionless hinge at B and a 20° wedge at C. Knowing that the static coefficient of friction at both surfaces of the wedge is 0.3. Determine: (a) the force P required to move the wedge. (b) The components of the corresponding reaction at B (c). Draw the normal, shear and moment diagrams [40 pts 5. 1800N A 350mm 10000 N/m 400mm 600mm
The machine part ABC is supported by a frictionless hinge...
0.50. Some jerk controls the height of block B by moving wedge A. The coefficient of friction between all surfaces of contact is 335 kg Determine the magnitude of horizontal force P in newtons required to raise block B. (Neglect the weight of the wedge A.)
A 10° wedge is to be forced under the end B of the
10-lb rod AB. Knowing that the coefficient of static
friction is 0.35 between the wedge and the rod and 0.25 between the
wedge and the floor, determine the smallest force
P required to raise end B of the
rod.
1 ft
The 50-lb block A and the 25-lb block B are supported by an incline that is held in the position shown. Knowing that the coefficient of static friction is 0.15 between all surfaces of contact, determine the value of ? for which motion is impending. Fig. P8.12
Wedge B is used to lift crate A. Crate A has a mass of 200 kg, and the mass of wedge B is negligible. The coefficient of static friction between all contact surfaces is us 0.30. Determine the force P required to begin moving the crate upward. (Ans. P 1,980 N) 3. 15°
