Homework Answers
B = uo*I/2pir

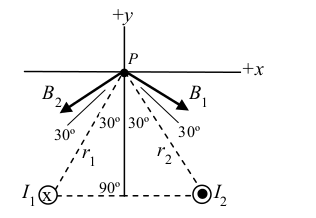

x componet will be cancel both are same in magnitude and opposite in direction .
y componet
B1y = -B1cos60
B2y = -B2cos60
magnitude = 2(uo*I/2pir) * cos60
r = 0.15 m
I = 18.8 A
uo = 4pi * 10^-7
B = 2.5 x 10^-5 T
Add Answer to:

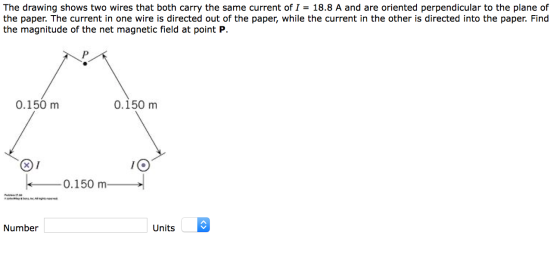

The drawing shows two wires that both carry the same current of I = 18.8 A...
Ihe drawing shows two wires that hoth carry the same current of -39.1 A and are...
Ihe drawing shows two wires that hoth carry the same current of -39.1 A and are oriented perpendicular to the plane of the paper. The current in ane wire is directed out of the paper, while the current in the ather is directed into the paper. Find the magnitude af the net magnetic field at point P 0.150 m 0.150 m 0.150 Number its
1. (30) The diagram below shows two current-carrying wires. Both wires carry the same current, bat...
1. (30) The diagram below shows two current-carrying wires. Both wires carry the same current, bat in disferen directions, as indicated. (a) Draw an arrow in the direction of the magnetic field at each labeled point. (b) Rank the magnitude of the magnetic field at each point, greatest first. Briefly explain your reasoning (e) Suppose the current in the wire on the left were changed to flow out of the page. Would the magnitude of the magnetic field at each...
Two insulated wires perpendicular to each other in the same plane carry currents as shown in...
Two insulated wires perpendicular to each other in the same plane
carry currents as shown in the figure
(Figure
1)
. Assume that I
= 13A
and d
= 16cm
.
A)
Find the magnitude of the net magnetic field these wires produce at
points
P and Q if the 10
Acurrent is to the right.
B)
Find the magnitude of the net magnetic field these wires produce at
points
P
and Q
if the 10
Acurrent
is to the...
i nerd help 5. Two long parallel wires 30.0 cm apart carry /,= 25A and 1,...
i nerd help
5. Two long parallel wires 30.0 cm apart carry /,= 25A and 1, = 8.0 A currents perpendicu wires 30.0 cm apart carry = 25.4 and 804 currents perpendicular to the plane of the paper, as shown (a). Show the directions of the magnetic fields currents, and /, produce at point P.(pos. (b) Calculate the magnitude of the magnetic field current produces at point P. (spis) (c) Calculate the magnitude of the magnetic field current /, produces...
Two long straight wires separated by 8 cm carry currents of equal magnitude but heading in...
Two long straight wires separated by 8 cm carry currents of equal magnitude but heading in opposite directions. The wires are shown perpendicular to the plane of this page. Point P is 2 cm from wire 1, and the net magnetic field at point P is 1x10-2 T directed in the negative y direction. What is the magnitude of the current in wire 1 in A units)? wire i Wire 2
The drawing shows two perpendicular, long, straight wires, both of which lie in the plane of...
The drawing shows two perpendicular, long, straight wires, both of which lie in the plane of the paper. The current in each of the wires is I = 4.9 A. In the drawing dH = 0.20 m and dV = 0.36 m. Find the magnitudes of the net magnetic fields at points A and B.
PLEASE HELP!!! 8. Two long, parallel wires each carry a current I in the same direction...
PLEASE HELP!!!
8. Two long, parallel wires each
carry a current I in the same direction as shown in the figure. The
magnetic field at the point P, midway between the two wires is
________.
zero
directed into the page
directed out of the page
parallel to the wires in the same direction as the
current.
parallel to the wires, in the opposite direction as the
current.
9. A long, straight wire carries a current of 20A to the right....
please help The drawing shows two perpendicular, long, straight wires, both of which lie in the...
please help
The drawing shows two perpendicular, long, straight wires, both of which lie in the plane of the paper. The current in each of the wires is I-6.2 A. In the drawing dH0.17 m and dy = 0.32 m. Find the magnitudes of the net magnetic fields at points A and E. B dH
The figure below shows two long, parallel wires incross-section, and the currents they carry are...
The figure below shows two long, parallel wires in
cross-section, and the currents they carry are directed out of the
page. The left wire carries a current ofI1 = 2.96 A,and the right carries a current ofI2 = 3.45 A.The two wires are a distanced = 20.0 cmapart. Point P is the same distance d above
the right wire.Assume the +x-direction is to the right, and the
+y-direction is upward.A cross-sectional end view of two parallel wires carrying
current out...
The drawing shows two perpendicular, long, straight wires, both of which lie in the plane of...
The drawing shows two perpendicular, long, straight wires, both of which lie in the plane of the paper. The current in each of the wires is 1 4.0 A. In the drawing | dh = 0.18 m and d-0.45 m. Find the magnitudes of the net magnetic fields at points A and B. dH
Ihe drawing shows two wires that hoth carry the same current of -39.1 A and are oriented perpendicular to the plane of the paper. The current in ane wire is directed out of the paper, while the current in the ather is directed into the paper. Find the magnitude af the net magnetic field at point P 0.150 m 0.150 m 0.150 Number its
1. (30) The diagram below shows two current-carrying wires. Both wires carry the same current, bat in disferen directions, as indicated. (a) Draw an arrow in the direction of the magnetic field at each labeled point. (b) Rank the magnitude of the magnetic field at each point, greatest first. Briefly explain your reasoning (e) Suppose the current in the wire on the left were changed to flow out of the page. Would the magnitude of the magnetic field at each...
Two insulated wires perpendicular to each other in the same plane
carry currents as shown in the figure
(Figure
1)
. Assume that I
= 13A
and d
= 16cm
.
A)
Find the magnitude of the net magnetic field these wires produce at
points
P and Q if the 10
Acurrent is to the right.
B)
Find the magnitude of the net magnetic field these wires produce at
points
P
and Q
if the 10
Acurrent
is to the...
i nerd help
5. Two long parallel wires 30.0 cm apart carry /,= 25A and 1, = 8.0 A currents perpendicu wires 30.0 cm apart carry = 25.4 and 804 currents perpendicular to the plane of the paper, as shown (a). Show the directions of the magnetic fields currents, and /, produce at point P.(pos. (b) Calculate the magnitude of the magnetic field current produces at point P. (spis) (c) Calculate the magnitude of the magnetic field current /, produces...
Two long straight wires separated by 8 cm carry currents of equal magnitude but heading in opposite directions. The wires are shown perpendicular to the plane of this page. Point P is 2 cm from wire 1, and the net magnetic field at point P is 1x10-2 T directed in the negative y direction. What is the magnitude of the current in wire 1 in A units)? wire i Wire 2
PLEASE HELP!!!
8. Two long, parallel wires each
carry a current I in the same direction as shown in the figure. The
magnetic field at the point P, midway between the two wires is
________.
zero
directed into the page
directed out of the page
parallel to the wires in the same direction as the
current.
parallel to the wires, in the opposite direction as the
current.
9. A long, straight wire carries a current of 20A to the right....
please help
The drawing shows two perpendicular, long, straight wires, both of which lie in the plane of the paper. The current in each of the wires is I-6.2 A. In the drawing dH0.17 m and dy = 0.32 m. Find the magnitudes of the net magnetic fields at points A and E. B dH
The figure below shows two long, parallel wires in
cross-section, and the currents they carry are directed out of the
page. The left wire carries a current ofI1 = 2.96 A,and the right carries a current ofI2 = 3.45 A.The two wires are a distanced = 20.0 cmapart. Point P is the same distance d above
the right wire.Assume the +x-direction is to the right, and the
+y-direction is upward.A cross-sectional end view of two parallel wires carrying
current out...
The drawing shows two perpendicular, long, straight wires, both of which lie in the plane of the paper. The current in each of the wires is 1 4.0 A. In the drawing | dh = 0.18 m and d-0.45 m. Find the magnitudes of the net magnetic fields at points A and B. dH
